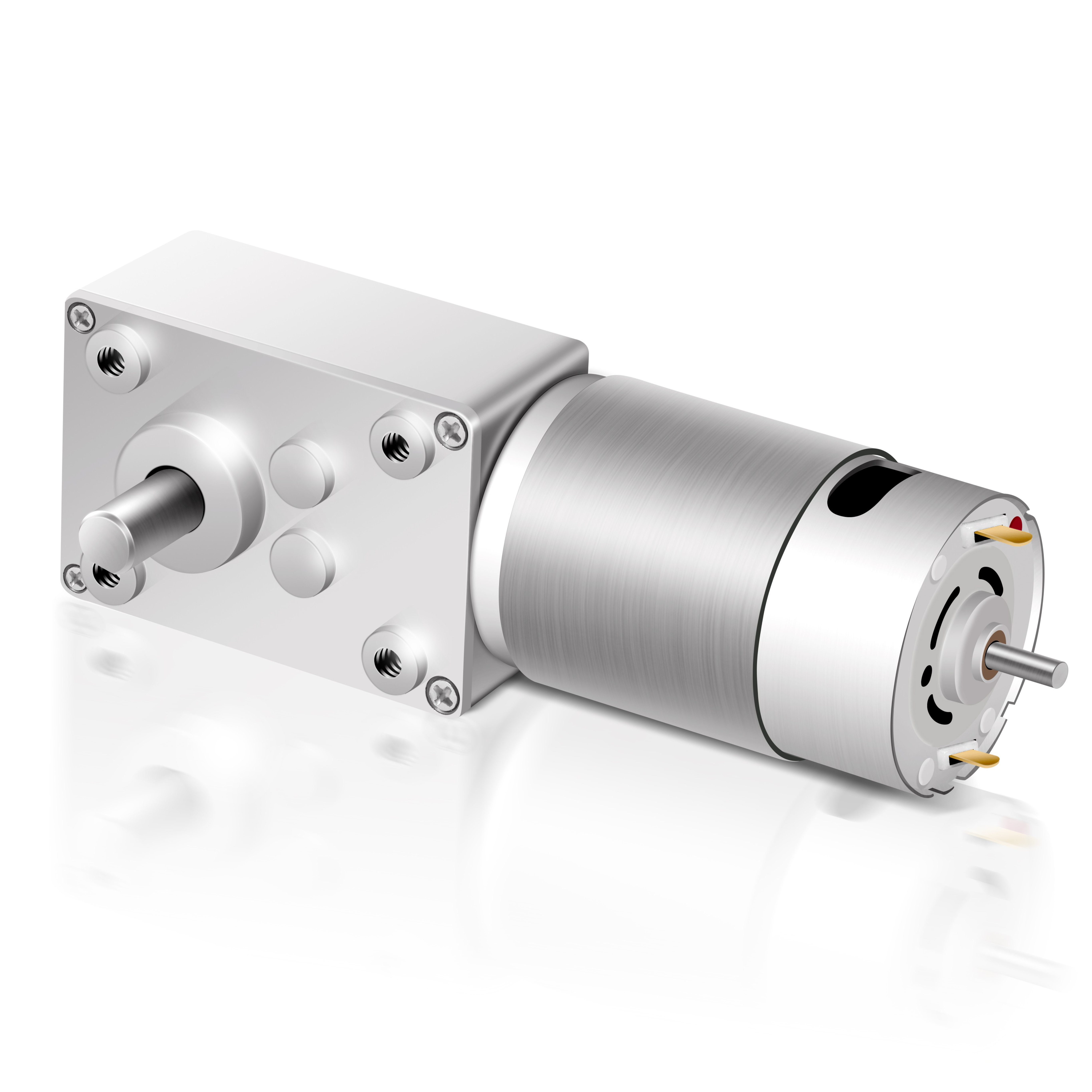

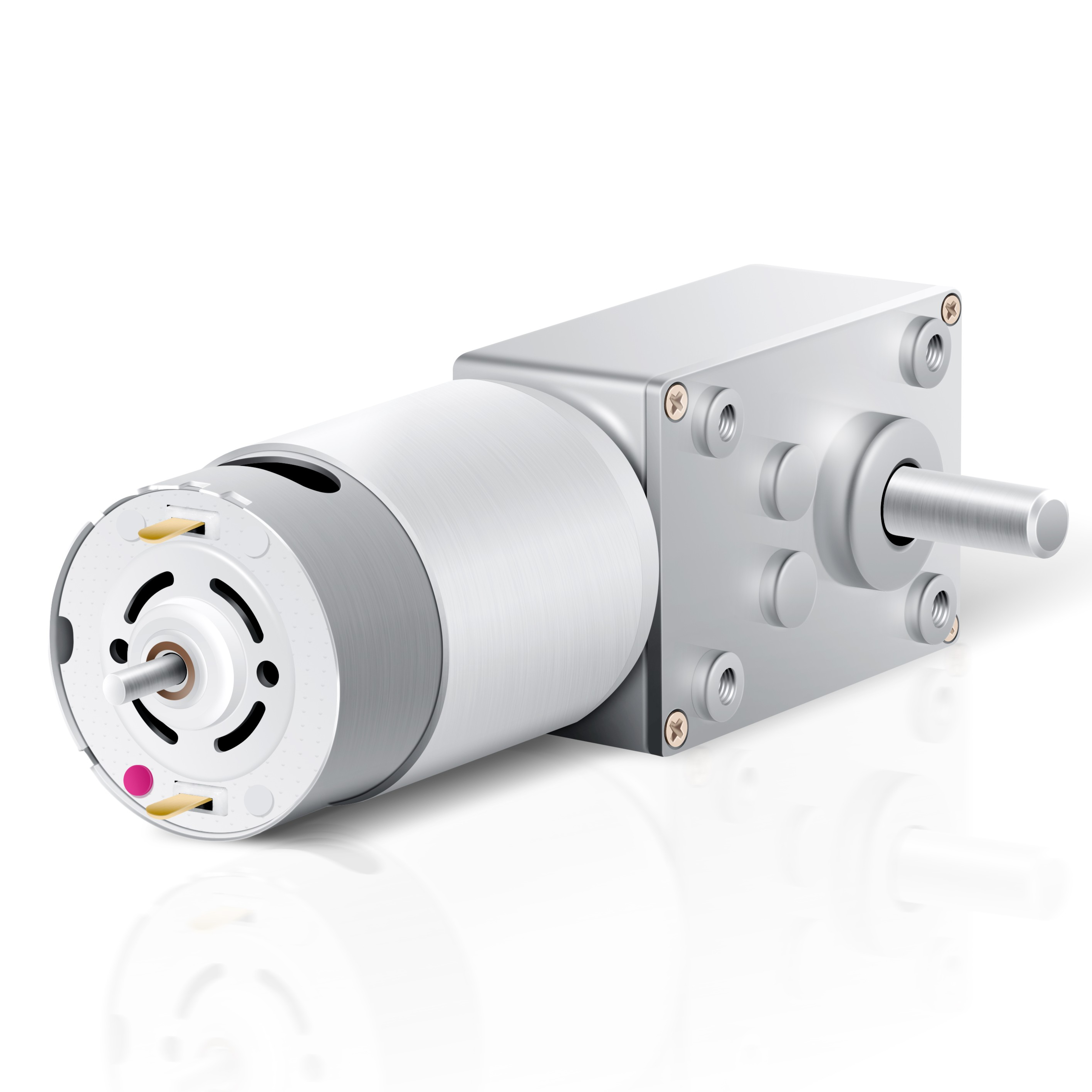

Factory 0.8nm Worm Gear Motor Brush Brushless Worm Gear Motor For For 3d Printing Pen
Product Description
Promotion
Product Description

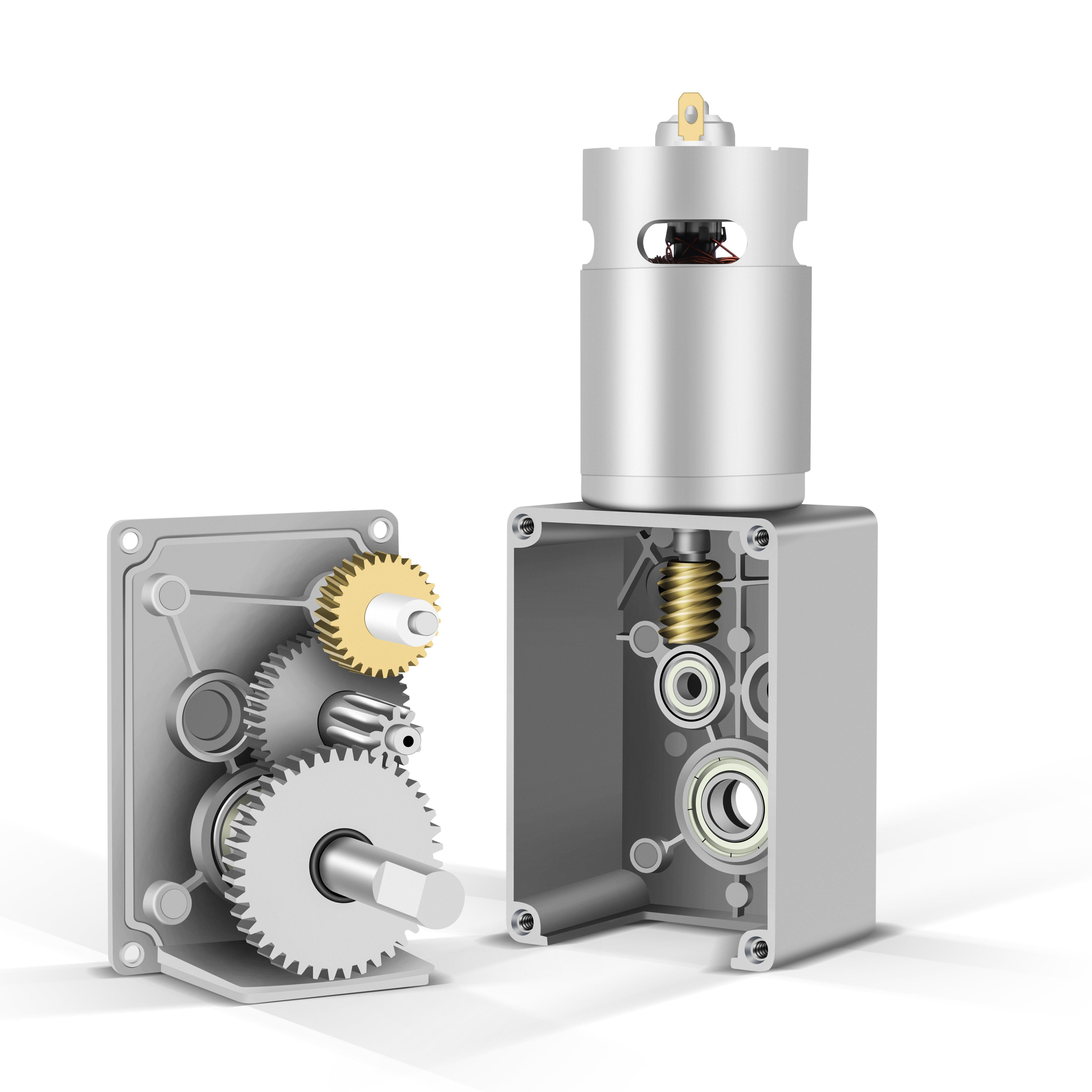

Product Details

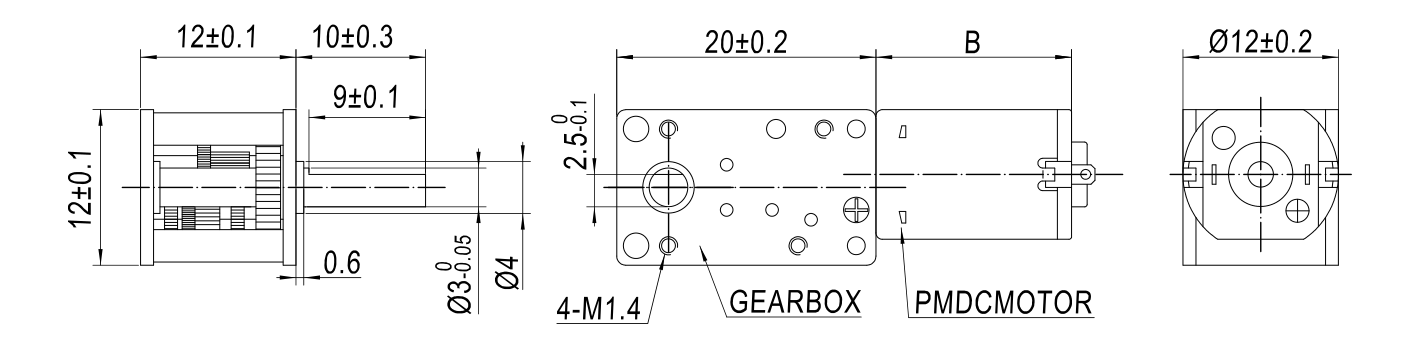

Specification
Gearbox Technical Data
| Ratio | 41K / 82K / 95K / 190K / 219K / 438K / 504K / 1007K |
| Max. Rated Torque | 300~800 gf.cm |
| Max. Gear Breaked Torque | 1000~3000 gf.cm |
| Gearbox Efficiency | 12%~35% |
Gearmotor Technical Data
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | mN.m / gf.cm | mA | mN.m / gf.cm | |||
| GM1220EMN20-95K | 1 : 95 | 4.5 VDC | 145 | ≤ 70 | 122 | ≤ 200 | 8 / 80 | ≤ 700 | 75 / 750 |
| GM1220EMN30-1007K | 1 : 1007 | 12 VDC | 25 | ≤ 90 | 22 | ≤ 230 | 120 / 1200 | ≤ 400 | 420 / 4200 |
PMDC MOTOR Technical Data
| PMDC MOTOR Model | Length "B"(mm) | Rated Voltage (V) | No-Load | Rated | Stall | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | ||||
| RPM | mA | RPM | mA | mN.m / gf.cm | mA | mN.m / gf.cm | ||||
| SL-N20 | 04514000 | 15 | 4.5 VDC | 14000 | ≤ 40 | 12000 | ≤ 130 | 0.25 / 2.5 | ≤ 650 | 1.5 / 15 |
| SL-N30 | 1225400 | 20 | 12 VDC | 25400 | ≤ 50 | 22600 | ≤ 170 | 0.5 / 5 | ≤ 380 | 4.2 / 42 |
Application
Customer Evaluation
Certification

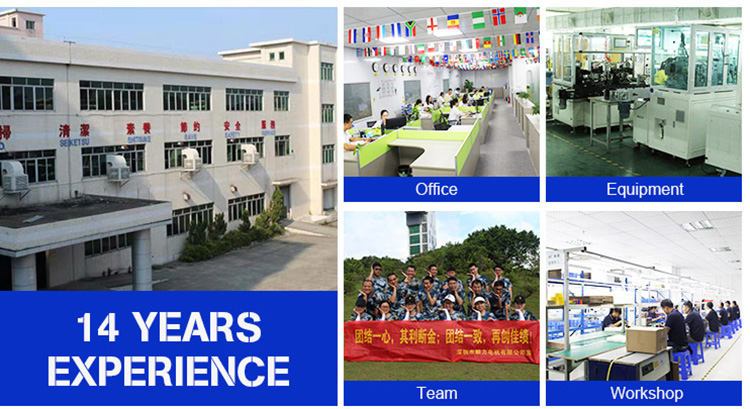

Our Company

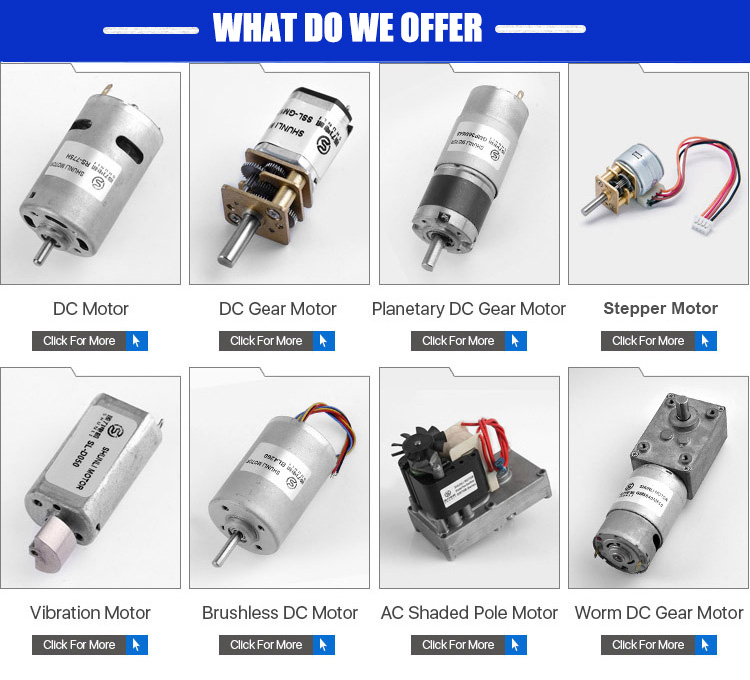

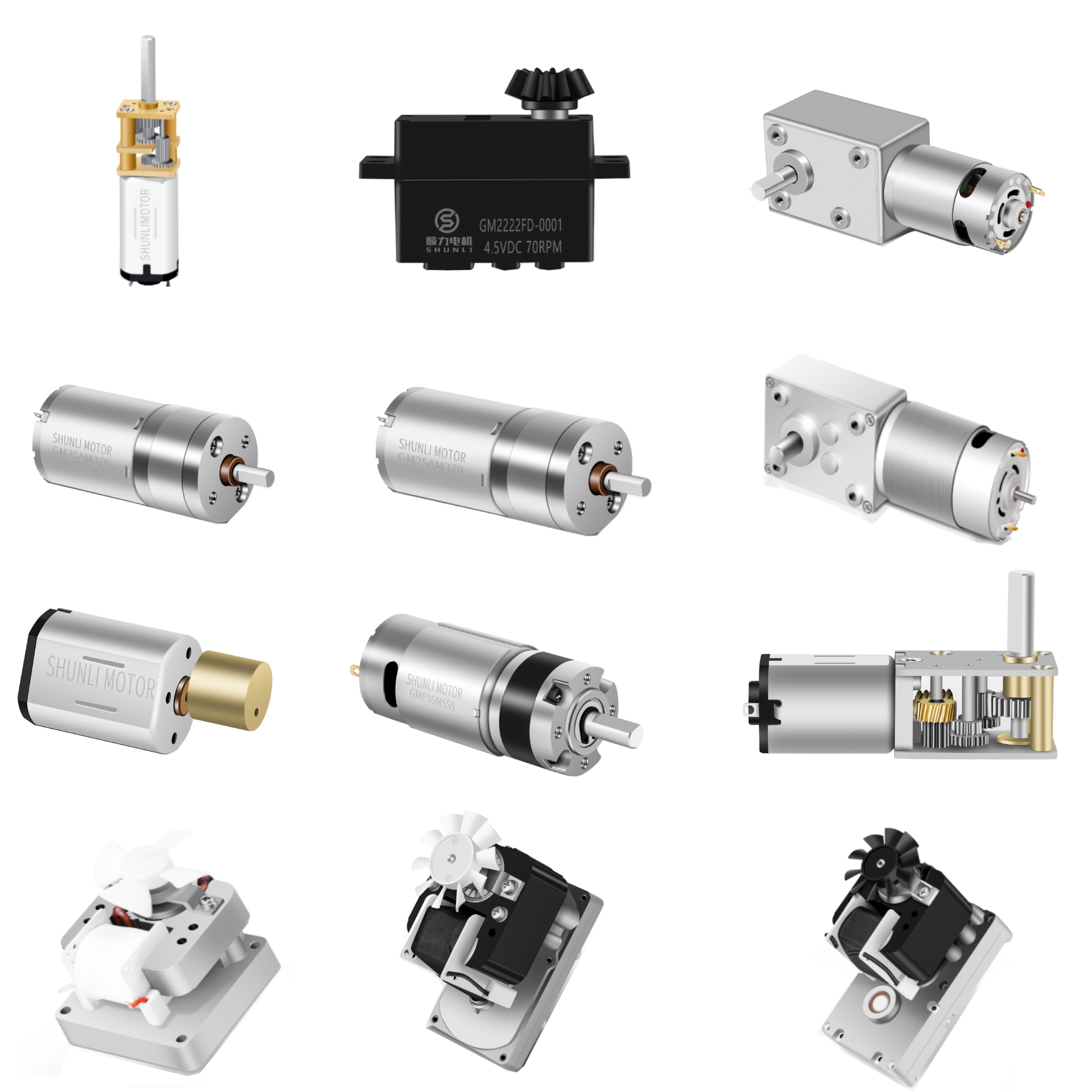

Established in 2005, the company is a high-tech enterprise integrating the research, development, production and sales of various kinds of micro DC motor, geared motor, planetary geared motor, shade pole geared motor and special gearbox motor.
Products are widely used in automobiles, communications equipment, smart home, medical equipment, intelligent security, household appliances, western kitchen equipment, machinery and electronics and other high-end transmission structures, products are exported to more than 50 countries and regions at home and abroad.
Frequently Asked Questions
1. Are you a trading company or manufacturer?
We are a factory. We have specialized in micro DC motors and DC gear motors for more than 14 years.
2. What is the payment term for a new customer?
We can draw up an Online Assurance Order for our new customers, which can be paid online with Master Card, Visa, etc. Customers can also pay via PayPal or TT, etc.
3. I can't find a suitable motor on your website, can you customize the motor for me?
Yes, we can customize a suitable motor according to our customer's specific requirements.
4. Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, etc. If you have other certificate requirements, we can apply for them for you.
5. How is your Quality Control?
We have professional inspection staff on every production line process. After finishing the assembly, we use dedicated testing machines to verify quality. This includes Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers, etc.
6. What applications are these micro gear motors suitable for?

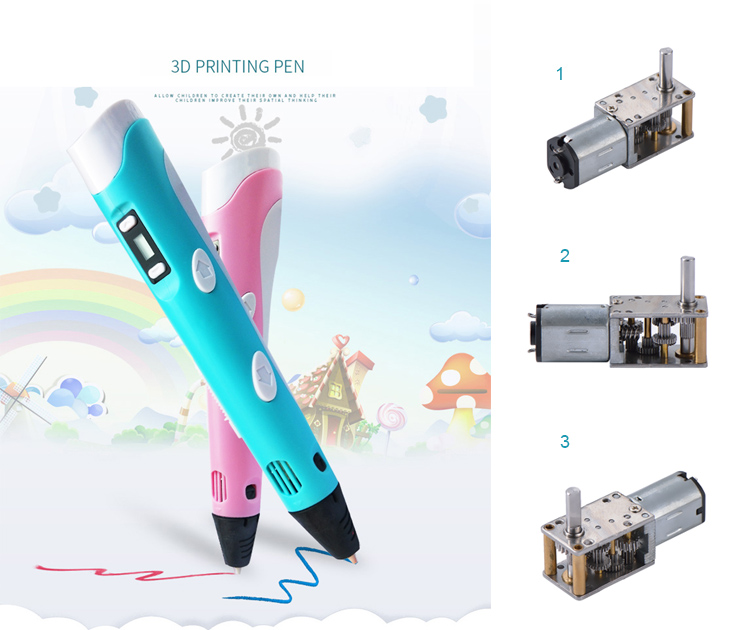

Our micro motors are widely used in 3D printing pens, automobiles, communication equipment, smart home appliances, medical equipment, intelligent security systems, household devices, and western kitchen equipment.
