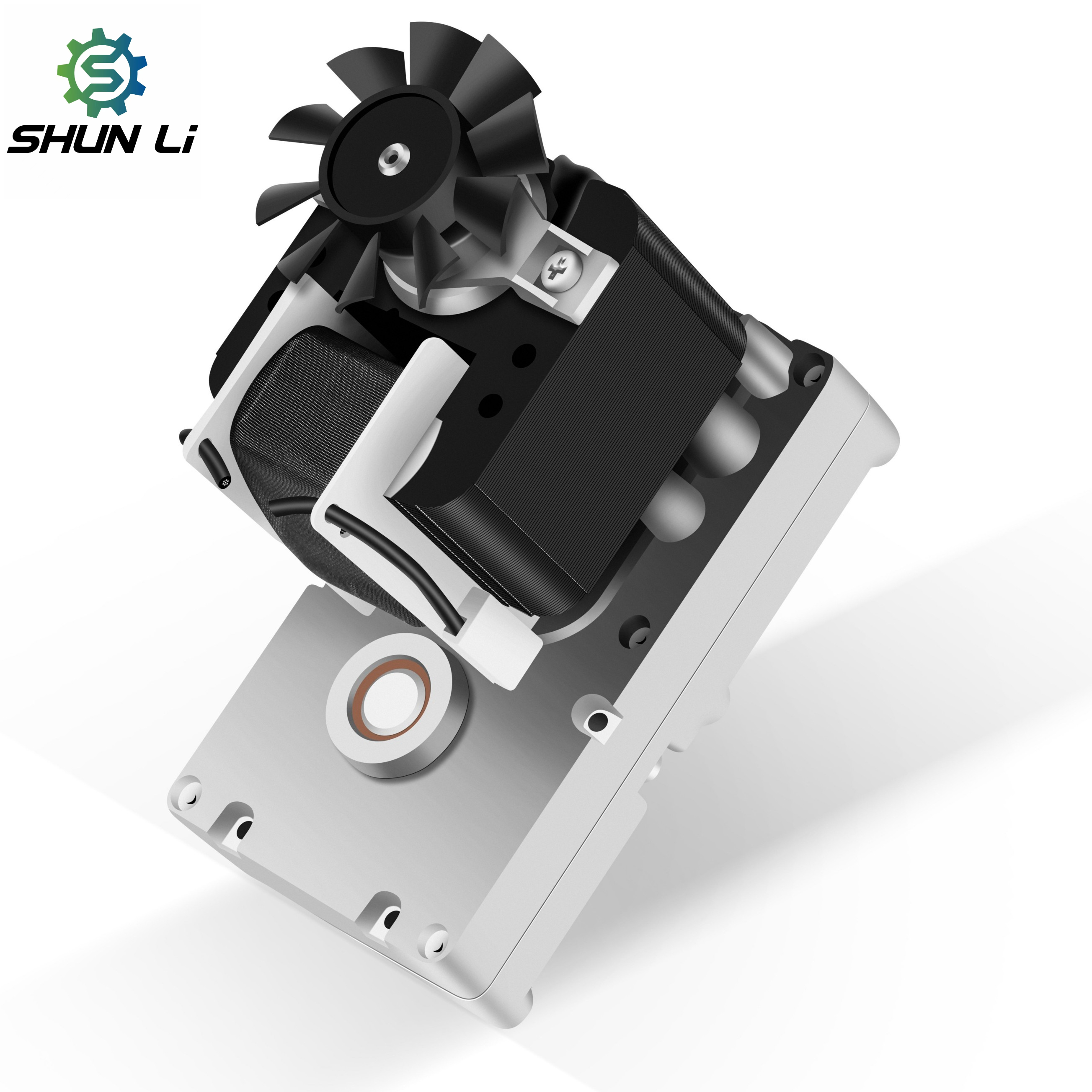

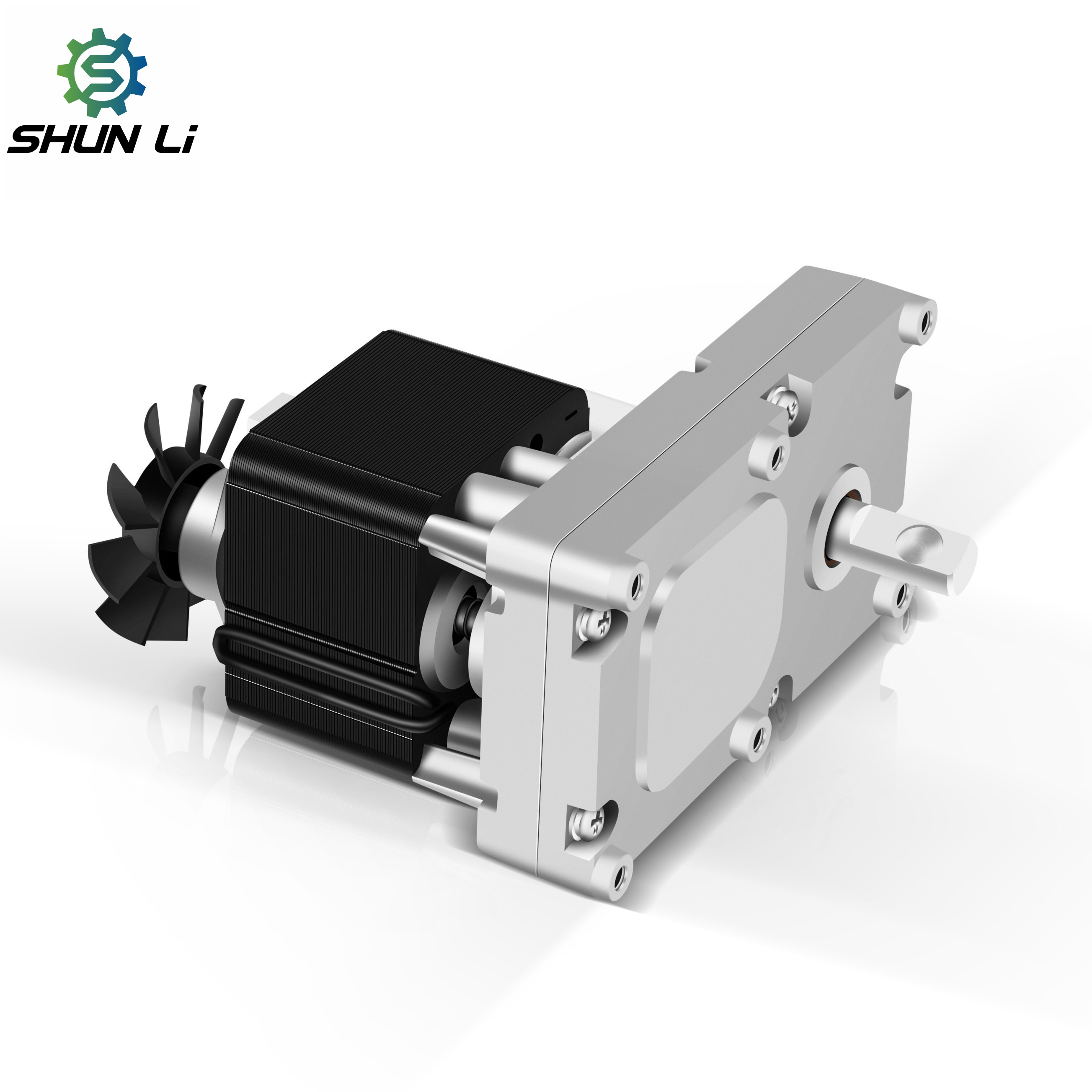

Manufacture Customizabe 120v 220v 50Hz Single-phase AC Shade Pole Gear Motor for Pellet Stoves and Boilers
Product Description
| Product Model | GM70B |

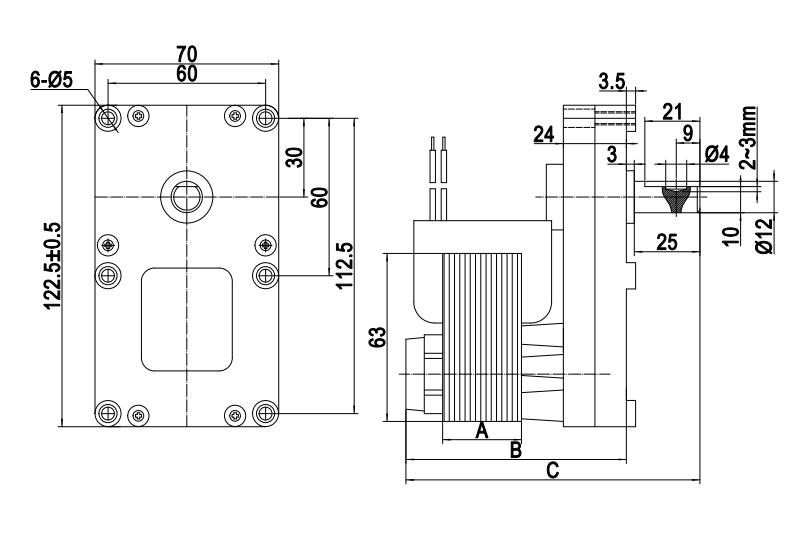

| Gearbox Dimension | 122.5mm*70mm*27.5mm |
| Ratio | 1:100~1:1800 |
| Speed | 1.6RPM-30RPM |
| Voltage | 100V~240V / 50HZ~60HZ |
| Rated Torque | 0.5 N.m / 15 N.m |
| Motor Shaft | Shaft Diameter 12mm |
| Support Customization | Motor Shaft Shape And Length Can Be Customzied; Motor Parameters Can Be Customized |
⚙️

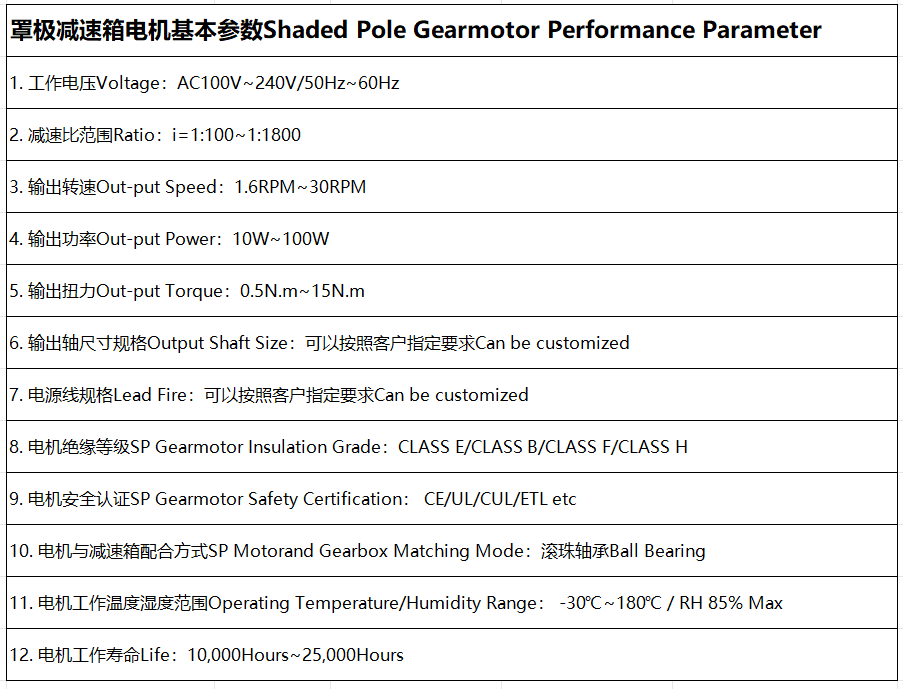

Technical Specifications
High-precision micro DC gear motor designed for durability and customized performance across various applications.
📸

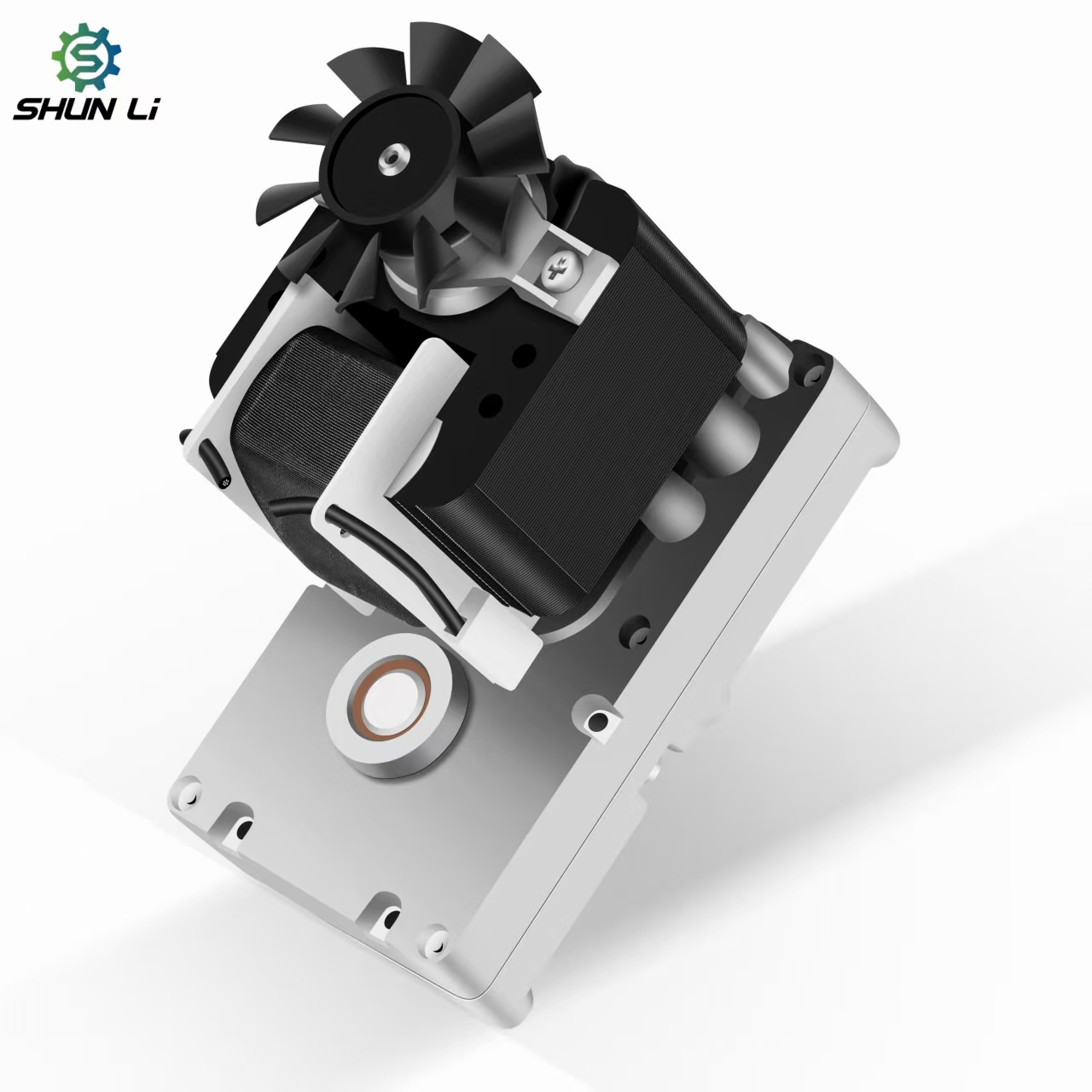

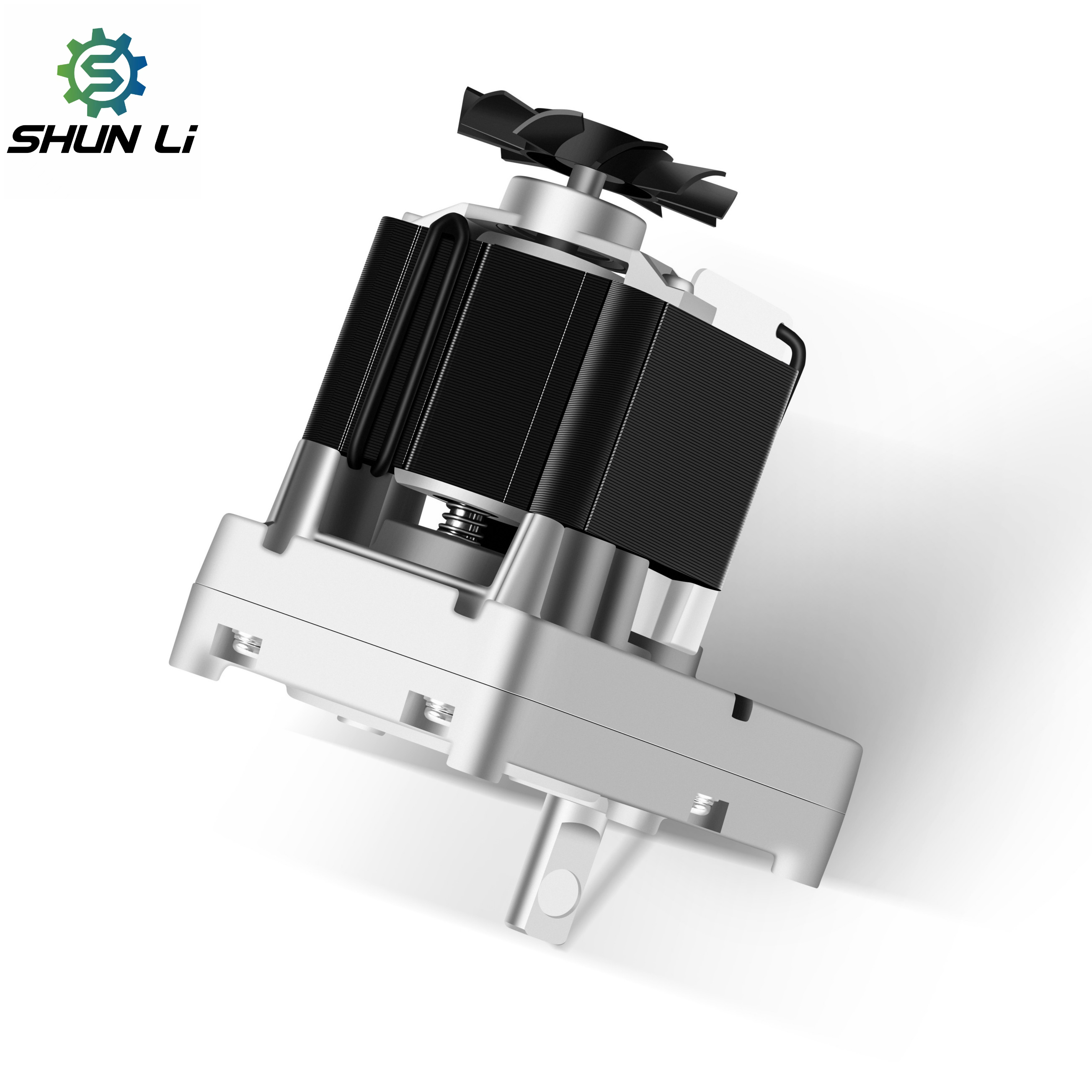

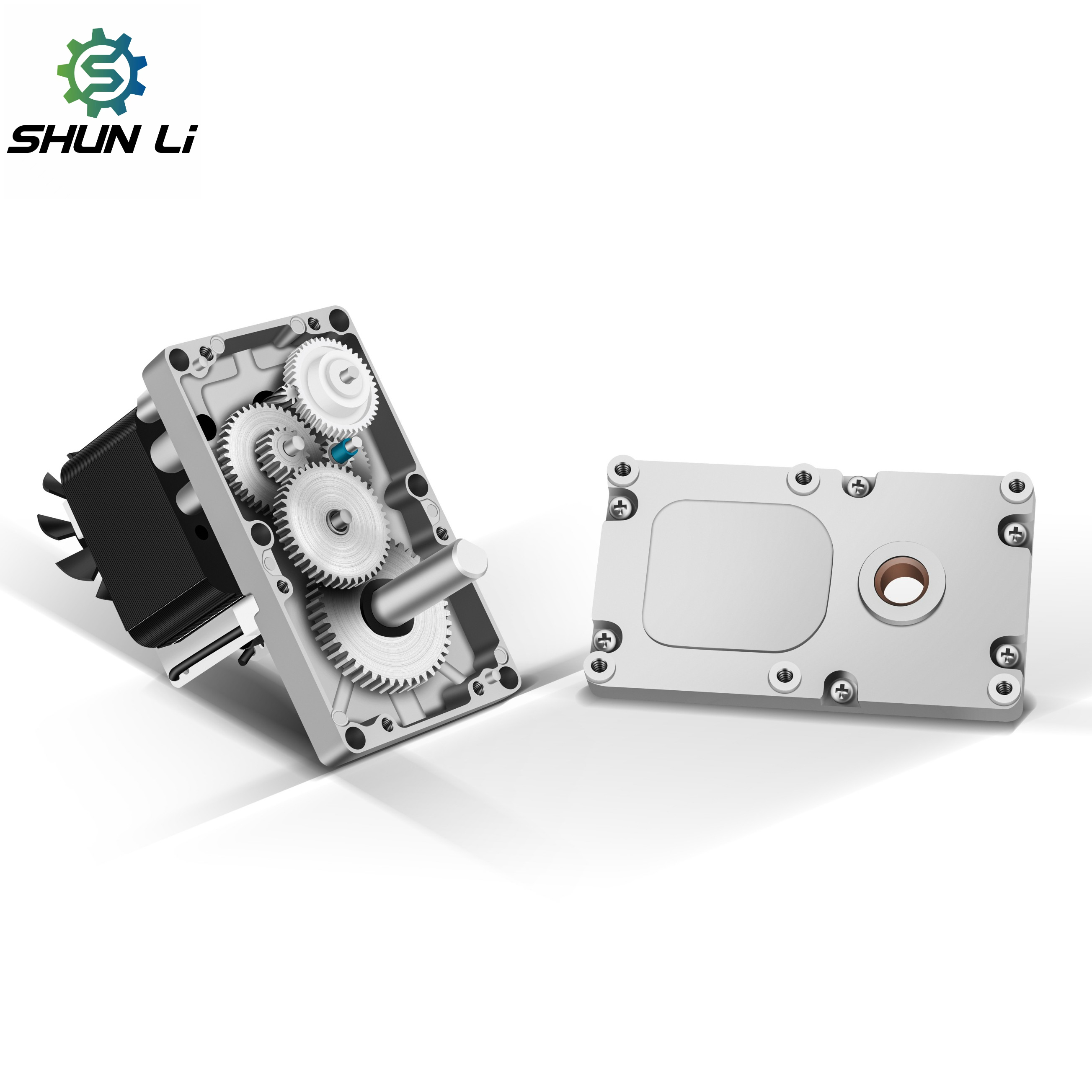

Product Gallery

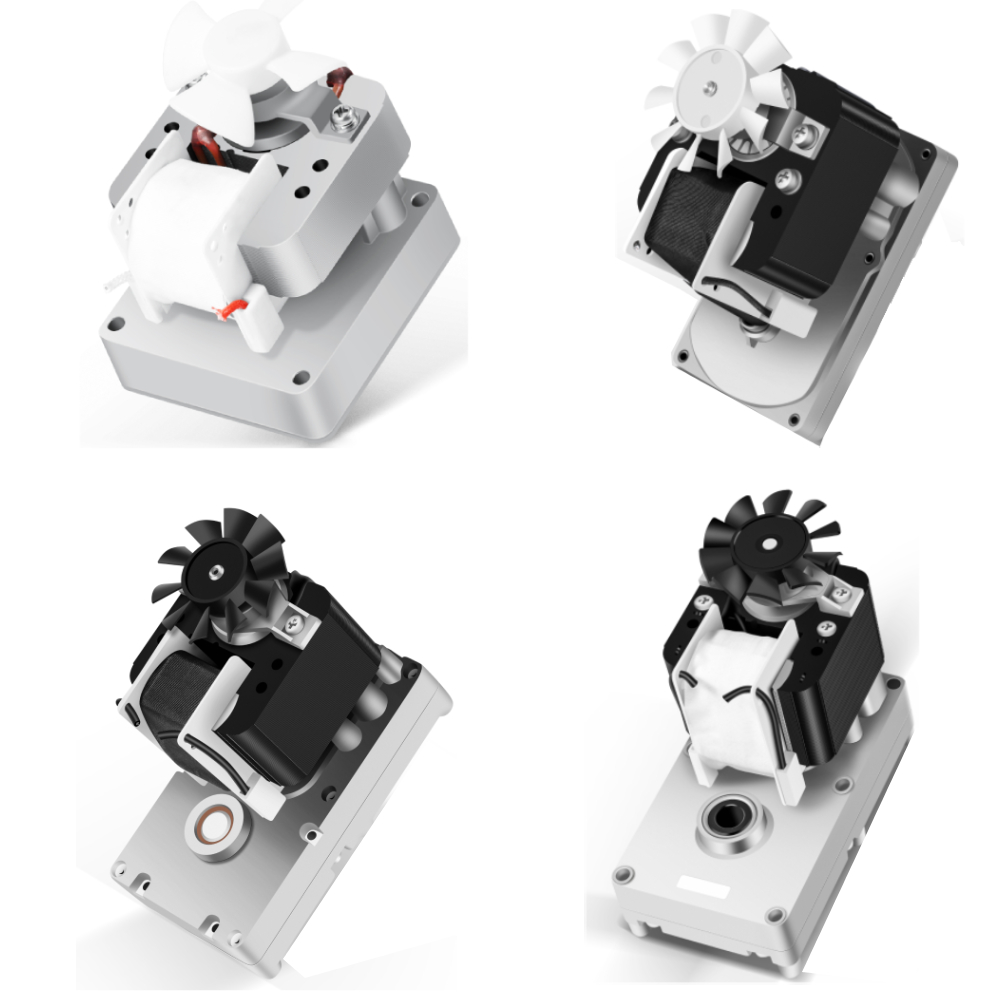

Multi-angle display of the GM70B motor series.
Frequently Asked Questions
Are you a trading company or a manufacturer?
We are a factory. We have specialized in micro DC motors and DC gear motors for more than 14 years.
Can you customize the motor according to my requirements?
Yes, we can customize a suitable motor, including shaft shape, length, and technical parameters, to meet your specific needs.
What certifications do your motors have?
Our products are certified with CE, FCC, ISO, and other relevant standards. We can apply for other certifications if required.
How do you ensure the quality of your products?
We have professional checking staff on every production line. Finished motors undergo comprehensive testing using equipment like Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, and Noise Testers.
What payment terms do you offer for new customers?
We support various payment methods including Online Assurance Orders (MasterCard, Visa), PayPal, and TT.
What is the input voltage range for this motor?
The GM70B supports a wide voltage range of 100V to 240V at 50Hz or 60Hz, making it suitable for international use.
