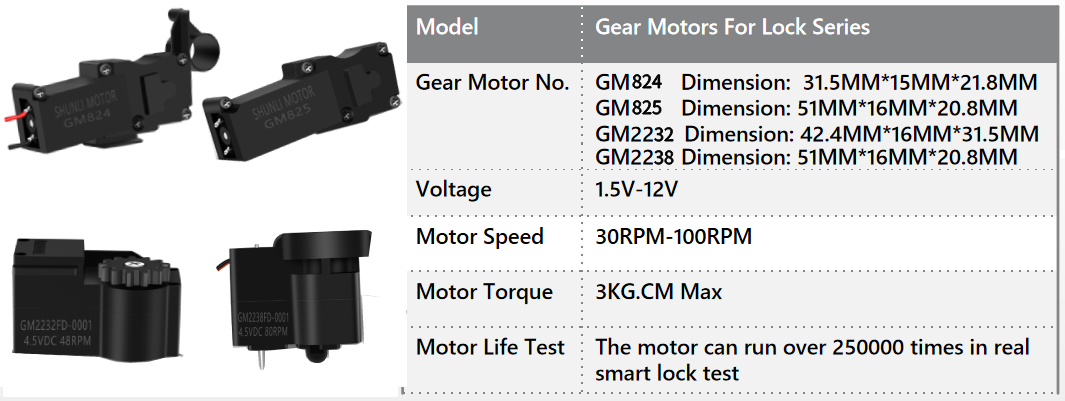

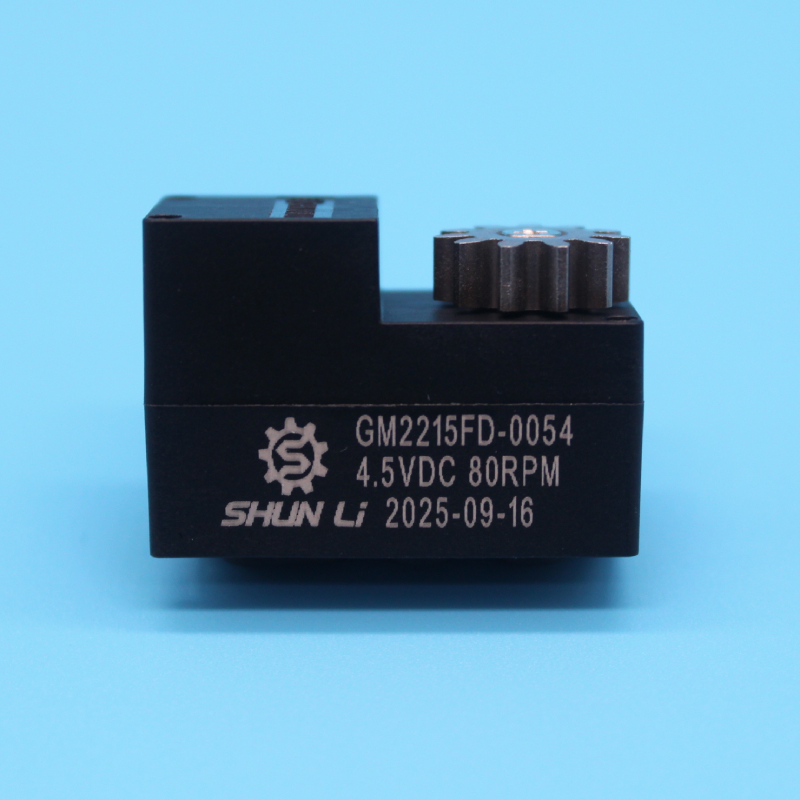

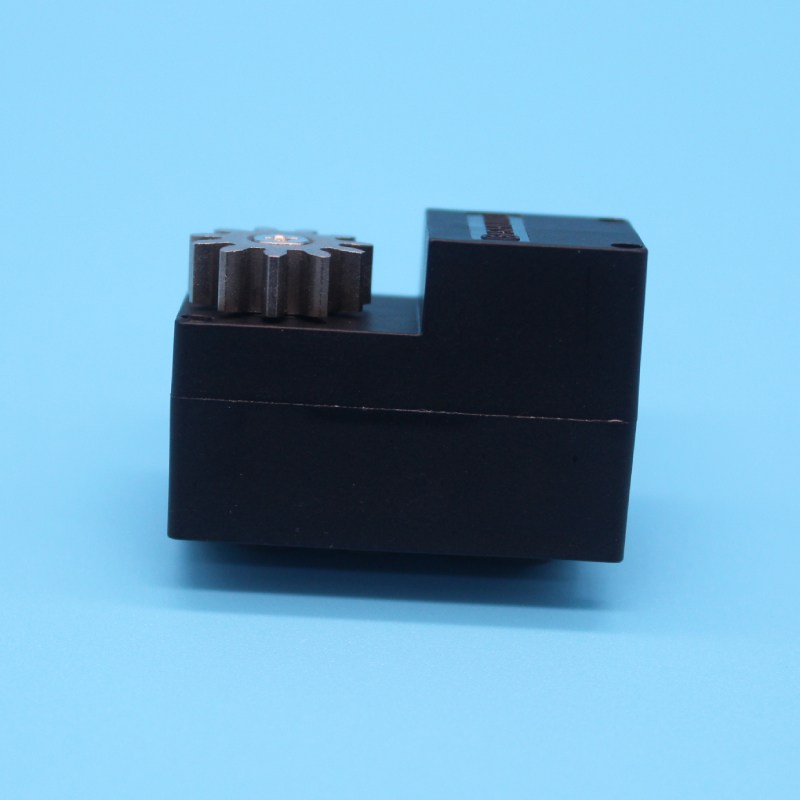

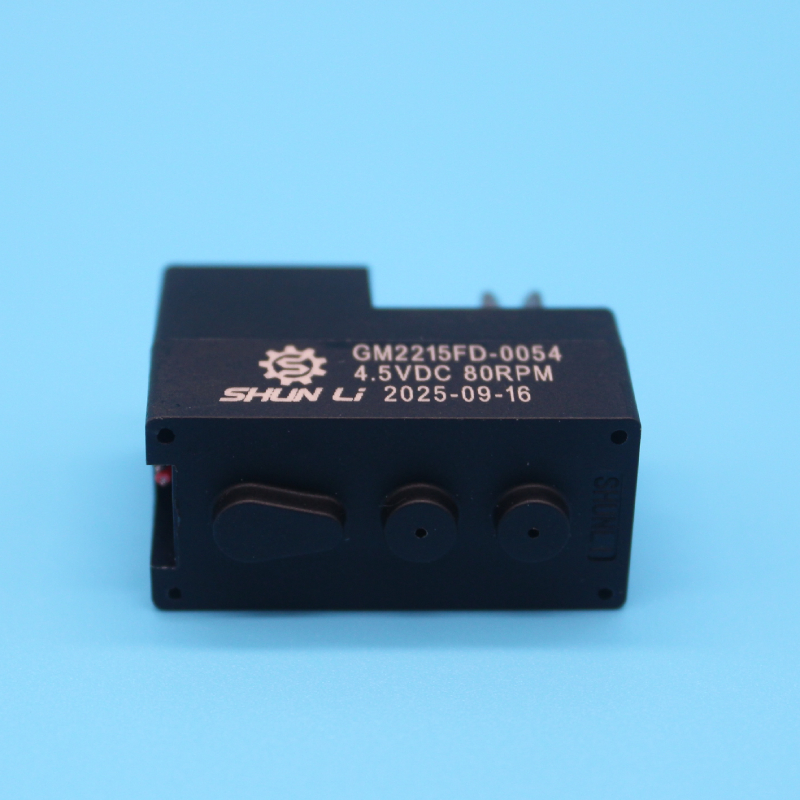

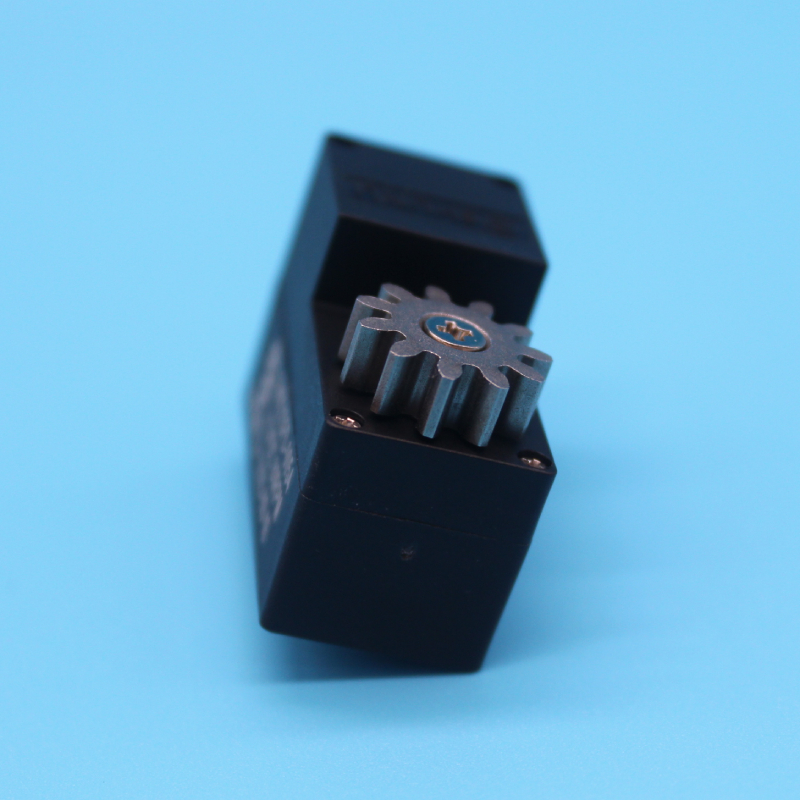

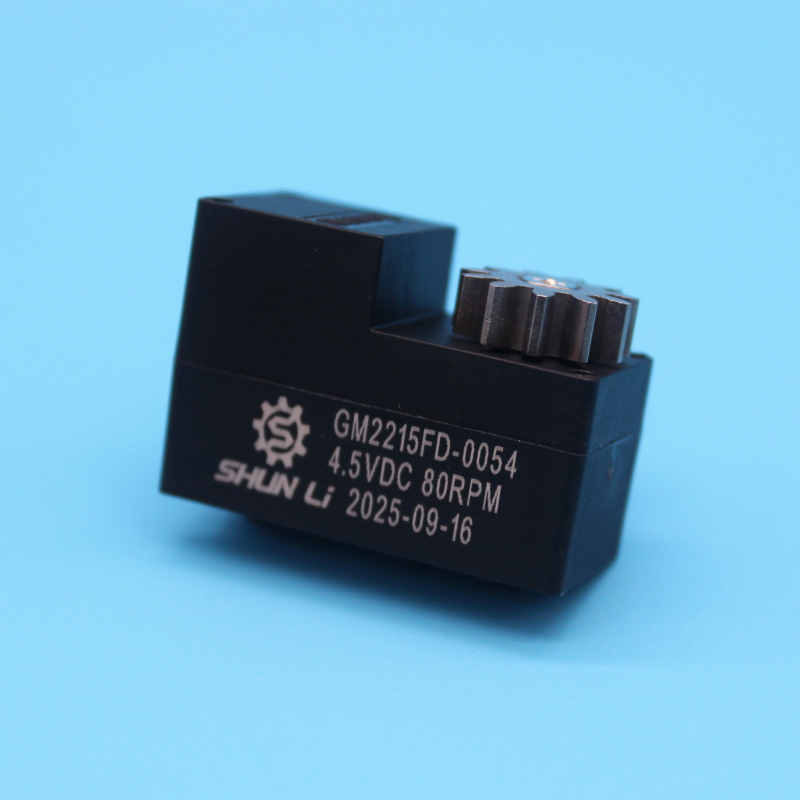

Shunli Motor 2215 Smart Lock Motor Steering Gear Automatic Door Lock Micro Motor Gearbox Reduction of Smart Lock
Product Description
Product Description
2215 smart lock motor steering gear automatic door lock micro motor gearbox reduction motor
Motor Customized Specification, Please Contact Us.

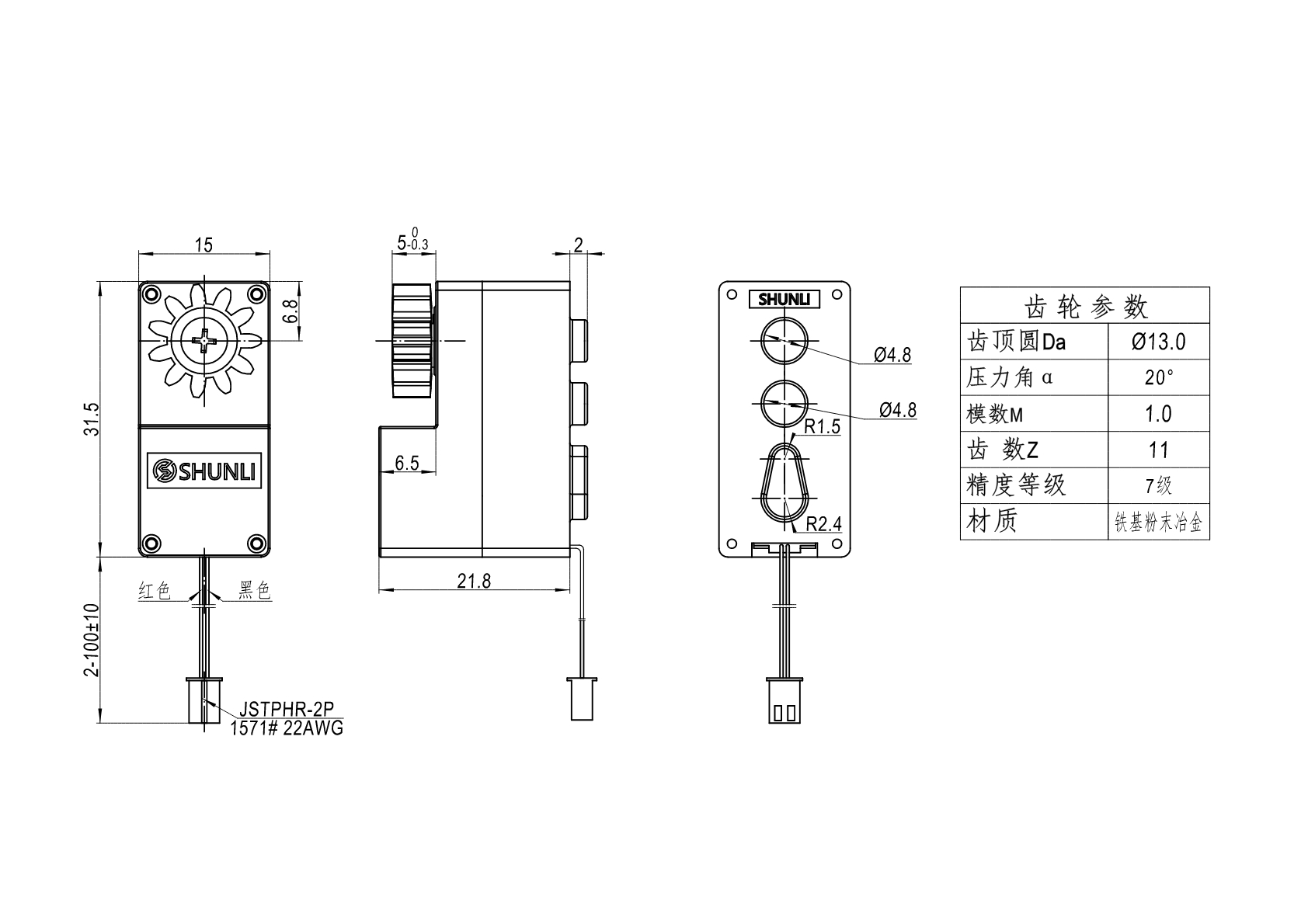

Reference Drawing ------ GM2215

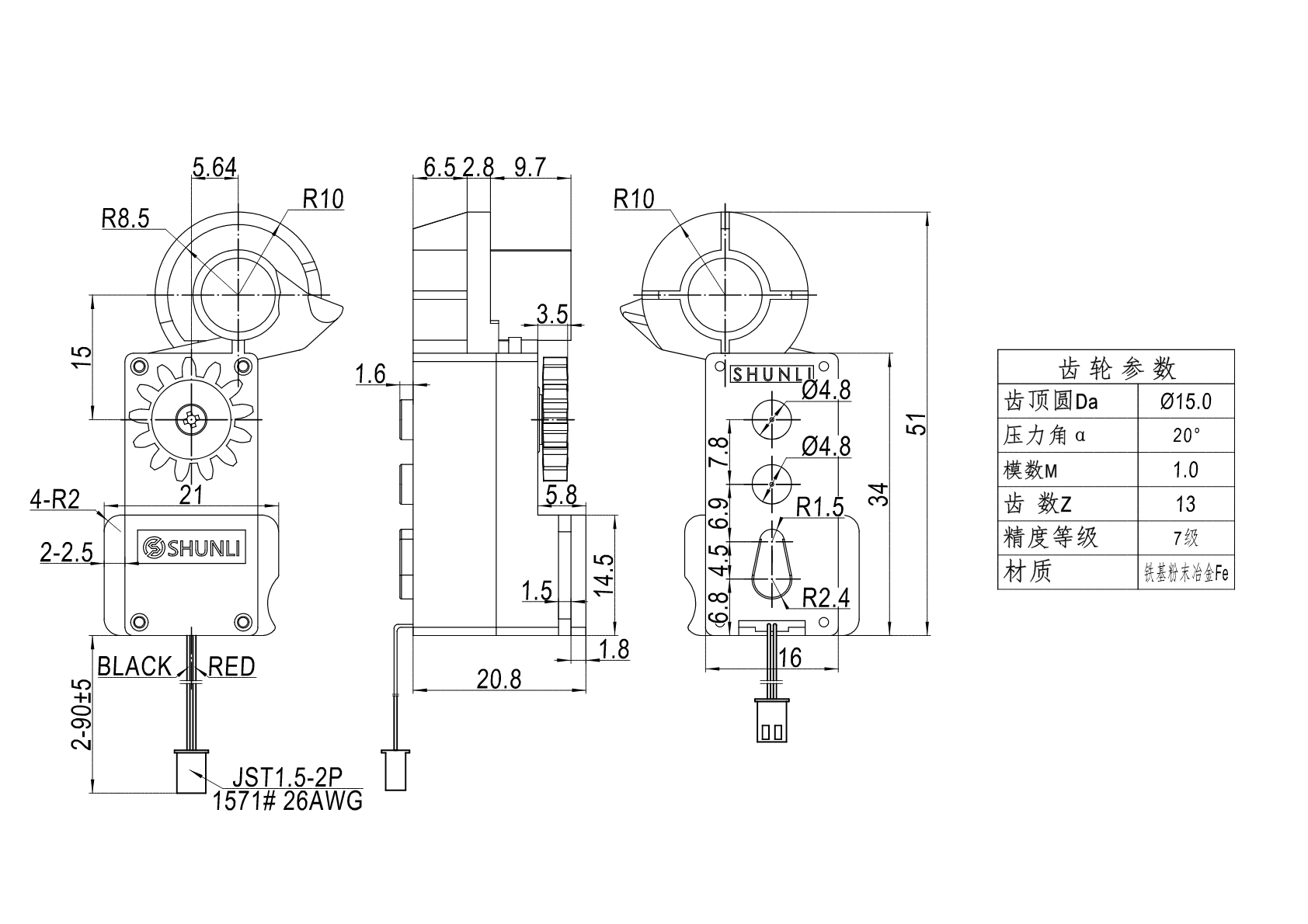

Reference Drawing ------ GM2219
Reference Datasheet
Gearbox Technical Data
| Parameter | Value / Range |
|---|---|
| Ratio | 199K / 241K / 265K |
| Max. Rated Torque | 1.5 ~ 2.5 Kgf.cm |
| Max. Gear Breaked Torque | 4 ~ 5 Kgf.cm |
| Gearbox Efficiency | 45% ~ 60% |
Gearmotor Technical Data
| Gearmotor Model | Ratio | Rated Voltage | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed (RPM) | Current (mA) | Speed (RPM) | Current (mA) | Torque (mN.m / gf.cm) | Current (mA) | Torque (N.m / Kgf.cm) | |||
| GM2215FMN20-199K | 1 : 199 | 4.5 VDC | 52 | ≤ 50 | 40 | ≤ 120 | 18 / 180 | ≤ 350 | 0.18 / 1.8 |
| GM2222FMN20-230K | 1 : 230 | 58 | ≤ 78 | 49 | ≤ 135 | 24 / 240 | ≤ 450 | 0.2 / 2.0 | |
| GM2219FMN20-265K | 1 : 241 | 58 | ≤ 65 | 50 | ≤ 130 | 24 / 240 | ≤ 680 | 0.2 / 2.0 | |
| GM2219FMN20-265K | 1 : 241 | 62 | ≤ 75 | 51 | ≤ 140 | 35 / 350 | ≤ 750 | 0.22 / 2.2 | |

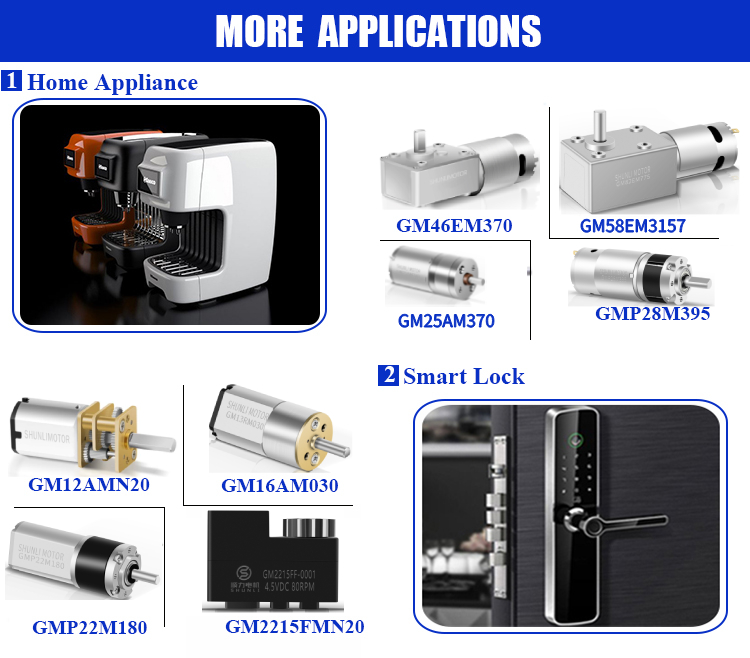

Product Range & Details
FAQ
Are you a trading company or a manufacturer?
We are a factory. We specialize in micro DC motors and DC gear motors with extensive manufacturing experience.
What are the available payment methods?
We offer flexible payment methods. Customers can complete transactions via secure online payment channels, PayPal, or TT wire transfers.
Can the motor specifications be customized?
Yes, we offer custom-tailored motor solutions to meet specific requirements regarding speed, voltage, torque, dimension, and other performance characteristics.
Do you hold certificates for these micro motors?
Yes, our products carry certifications such as CE, FCC, ISO, and others. Additional certificate applications can be requested based on specific target market requirements.
How is your quality control structured?
We employ dedicated quality inspectors on every assembly stage. Completed units undergo rigorous testing on industrial inspection equipment including hardness testers, 2.5D image testers, salt spray chambers, operational life testers, and noise chambers.
What are the typical applications for these micro gearbox motors?
These micro gear reduction motors are highly suitable for smart electronic locks, automatic steering systems, smart home doors, automotive actuators, and precision automation devices.
