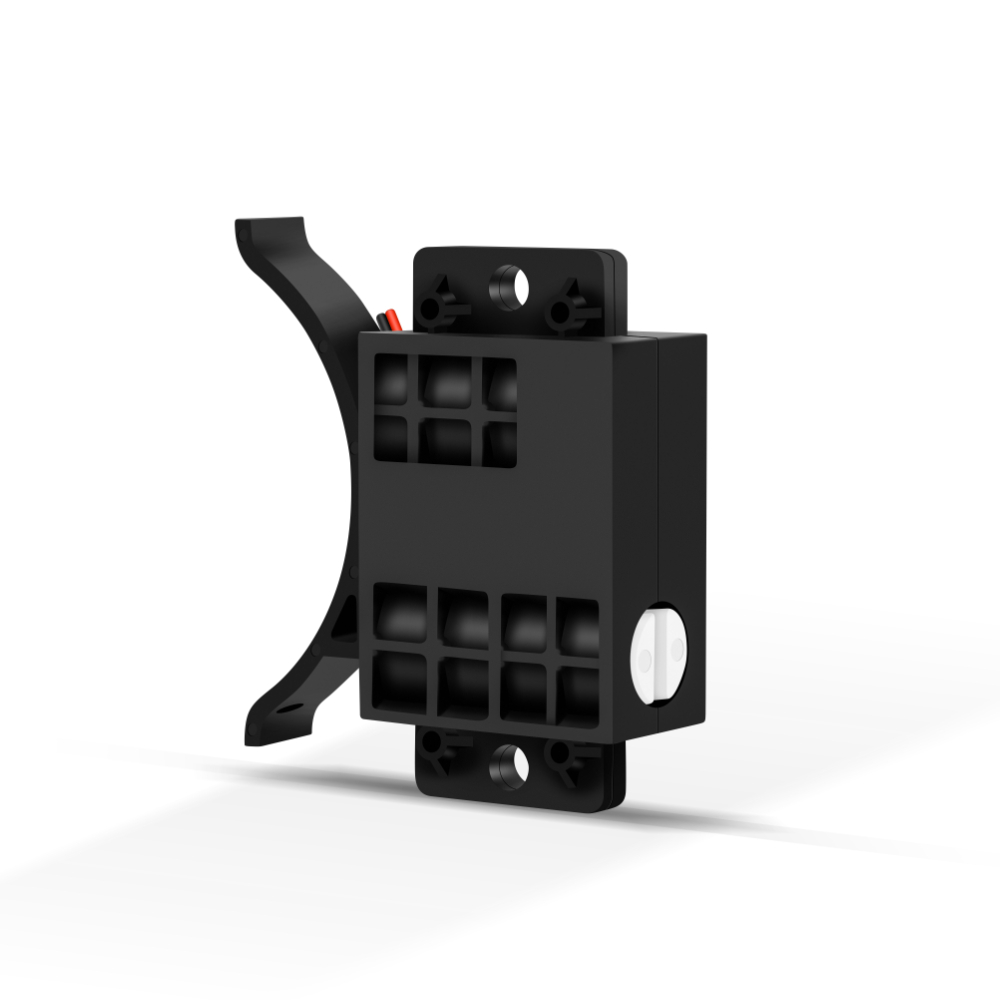

Shunli Vibration Dc Gear Motor 3V 6V 12V 1.4-1.6A 65RPM 75RPM 85RPM Hight Torque Coin Dc Gear Motor for Smart Lock
Product Description
Promotion
Product Description

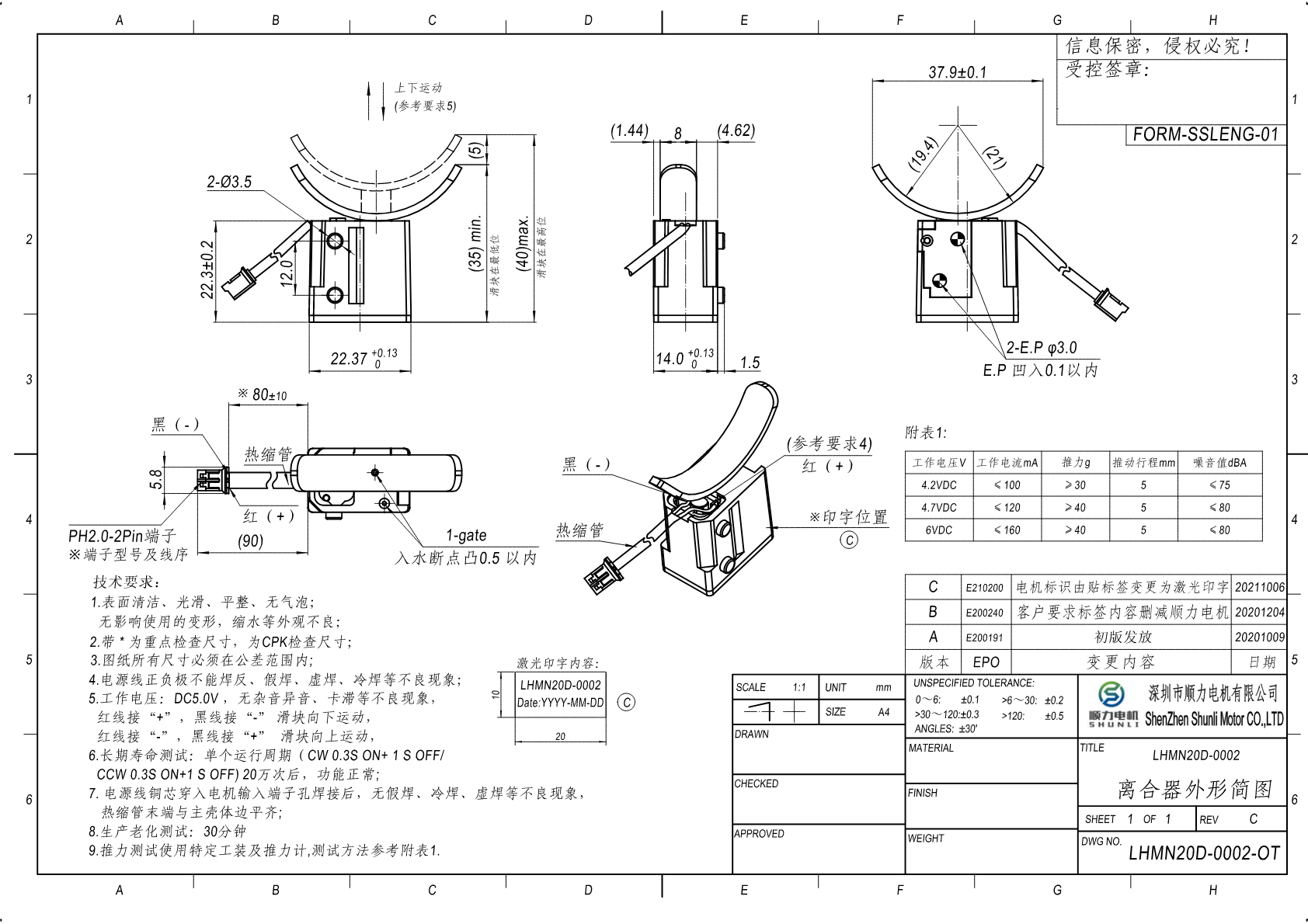

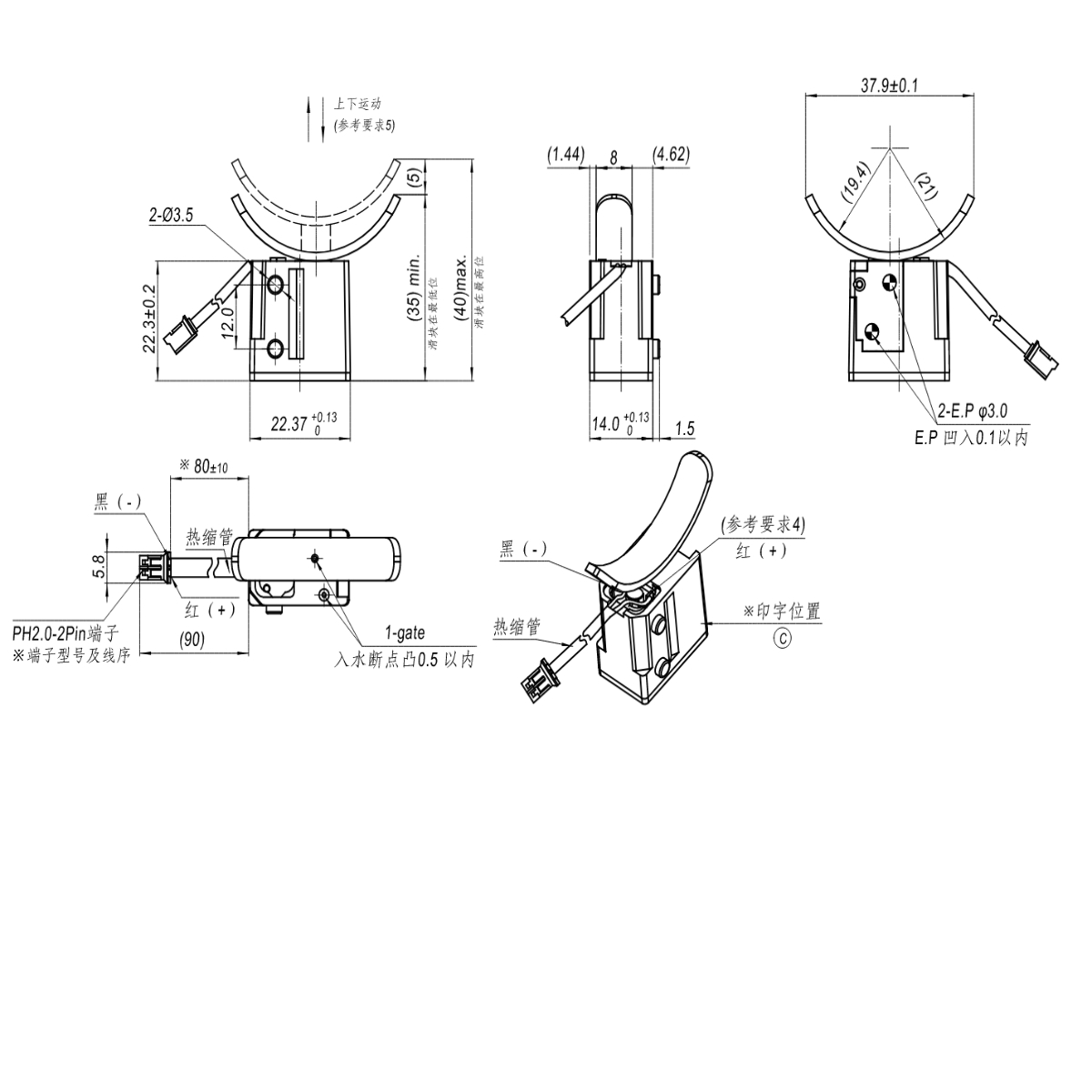

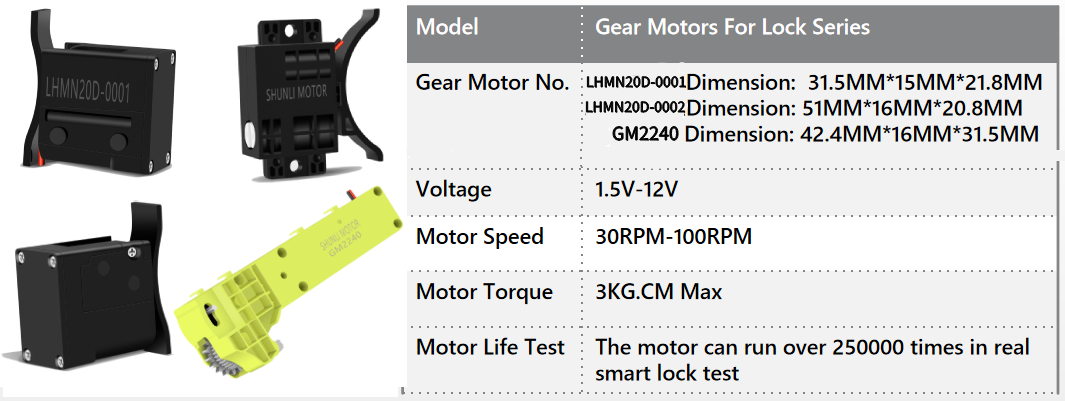

Specification
Gearbox Technical Data
| Parameter | Value |
|---|---|
| Ratio | 241k |
| Max. Rated Torque | 1.5~2.0 Kgf.cm |
| Max. Gear Breaked Torque | 4~5 Kgf.cm |
| Gearbox Efficiency | 45%~60% |
Gearmotor Technical Data
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | N.m / Kgf.cm | mA | N.m / Kgf.cm | |||
| GM2240 | 1 : 241 | 4.5 VDC | 52 | ≤ 50 | 40 | ≤ 120 | 18 / 180 | ≤ 350 | 0.18 / 0.18 |
| 58 | ≤ 65 | 50 | ≤ 130 | 24 / 240 | ≤ 680 | 0.2 / 2.0 | |||
| 68 | 75 | 56 | ≤ 140 | 26 / 260 | ≤ 750 | 0.22 / 2.2 | |||
PMDC Motor Technical Data
| PMDC MOTOR Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | mN.m / gf.cm | mA | mN.m / gf.cm | |||
| SL-N20 | 04510500 | 4.5 VDC | 10500 | ≤ 30 | 8250 | ≤ 80 | 0.2 / 2.0 | ≤ 300 | 1.05 / 10.5 |
| 04514000 | 4.5 VDC | 14000 | ≤ 40 | 12000 | ≤ 130 | 0.25 / 2.5 | ≤ 680 | 1.5 / 15 | |
| 04516500 | 4.5 VDC | 16500 | ≤ 50 | 13500 | ≤ 160 | 0.25 / 2.5 | ≤ 750 | 1.8 / 18 | |
Applications
Customer Evaluation
Certifications
Why Choose Us
1. Company Strength
We are a factory specializing in producing motors for more than 14 years. Our professional R&D team and mature management will bring you a pleasant shopping experience.
2. Quality Control
In order to confirm quality, from the moment we receive material to shipment, every step of the way is carefully checked. Quality is the basis of our development.
Frequently Asked Questions
Q1: Are you a trading company or a manufacturer?
A: We're a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.
Q2: What is the payment term for a new customer?
A: We can draw up an Ali Assurance Order Online for our new customer, which can be paid online with Master Card, Visa, etc. Customers can also pay with PayPal or TT, etc.
Q3: I can't find a suitable motor on your website, can you customize the motor for me?
A: Yes, we can customize a suitable motor according to our customer's requirements.
Q4: Do you have certificates for the motors?
A: Yes, we have CE, FCC, ISO, etc. If you have other certification requirements, we can apply for them for you.
Q5: How is your Quality Control?
A: We have professional inspection staff on every production line process. After finishing the whole motor, we use testing equipment such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers to check the performance.
