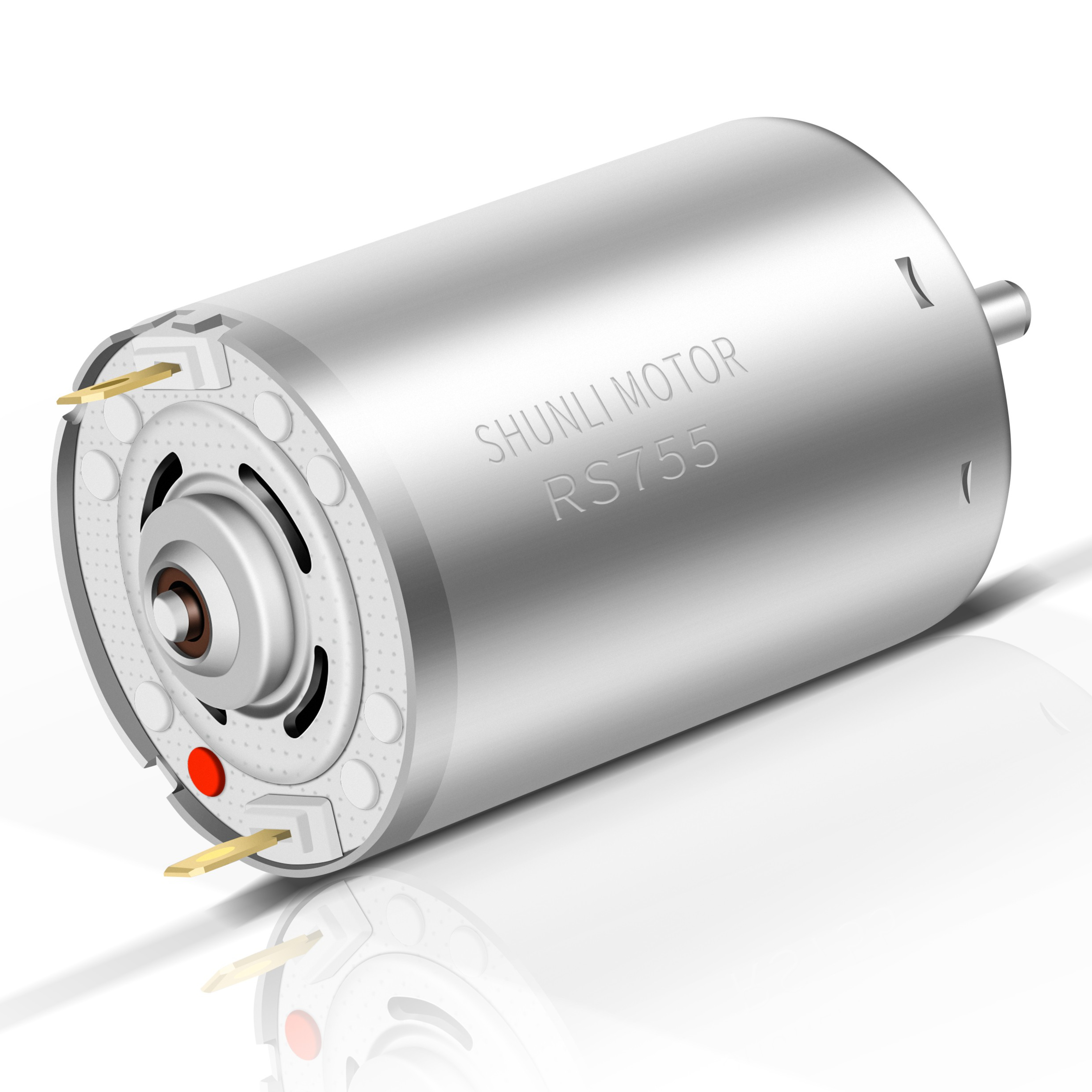

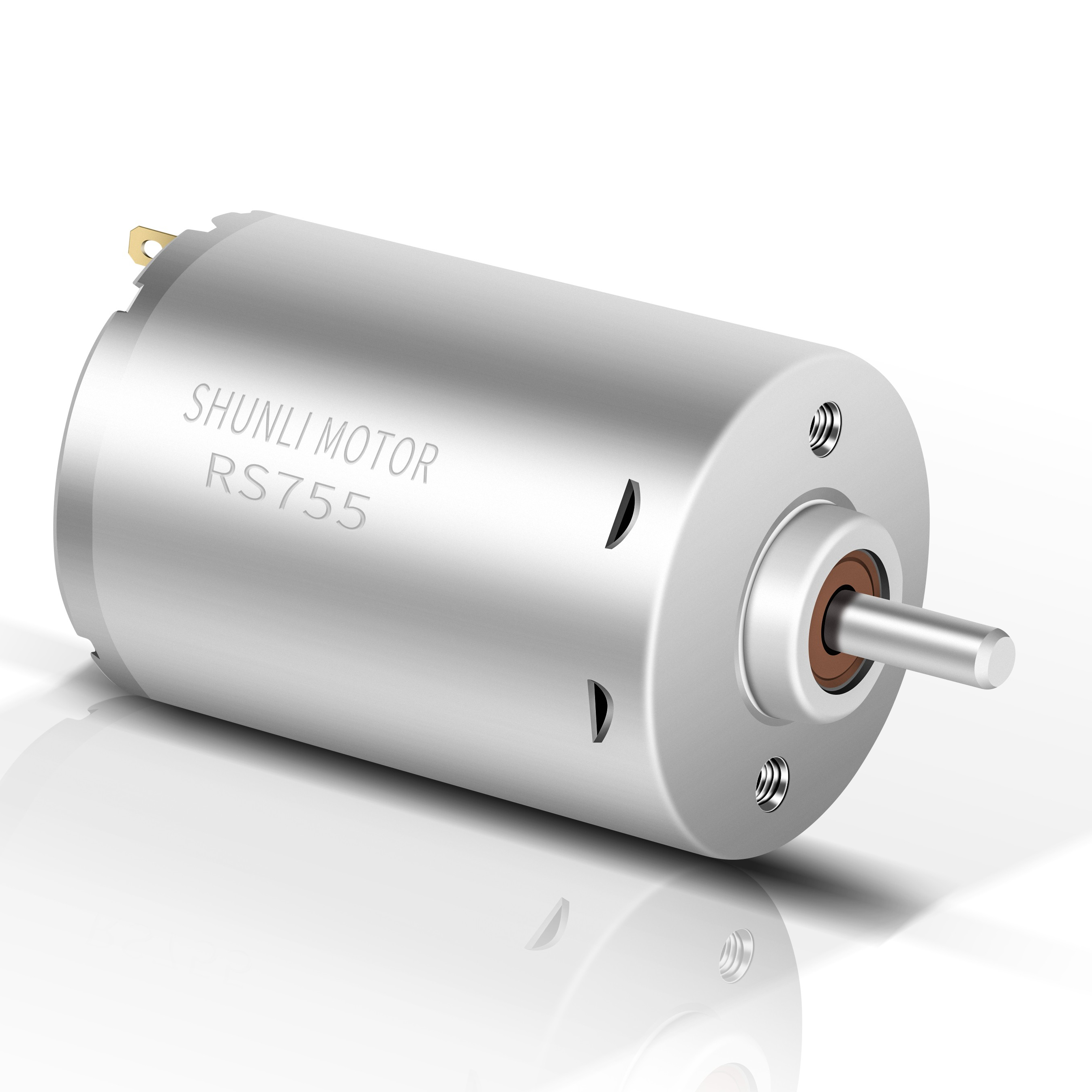

12v 24v 10W 100W DC Motor High Speed 15000 RPM for Air Pump/RC Model/Cordless Power Tool
Product Description
12v 24v 10W 100W DC Motor High Speed 15000 RPM for Air Pump/RC Model/Cordless Power Tool
Product Details
Motor Customized Specification is available.

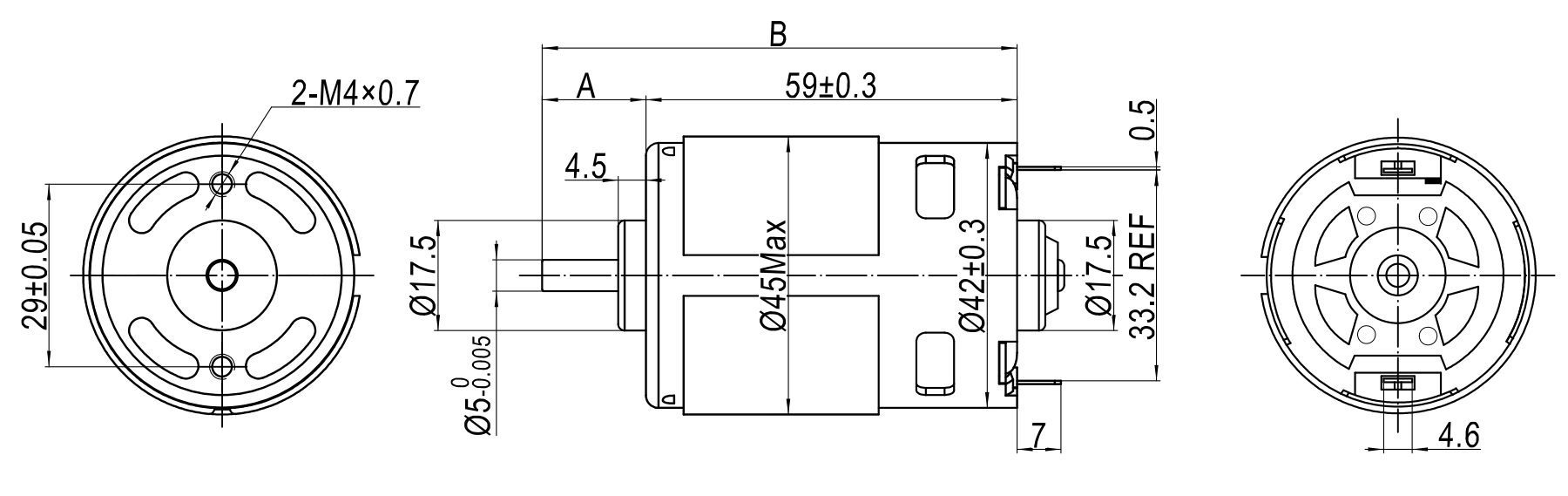

Reference Drawing
------ RS - 755 H
------ RS - 775 H
The length of shaft can be customized.
PMDC MOTOR Technical Data
| Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Operating Range | Nominal | Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| RPM | A | RPM | A | mN.m / gf.cm | W | A | mN.m / gf.cm | ||||
| RS-770H 8523R | 6.0~12.0 | 12 VDC | 15000 | 2.2 | 13177 | 15.91 | 81/826.2 | 111.8 | 115 | 666.9/6802 | |
| RS-775H 25110R | 6.0~24.0 | 24 VDC | 3478 | 0.15 | 2925 | 0.75 | 44.4/452.9 | 13.35 | 4.07 | 245.7/2506 | |
Application
Customer Evaluation
Certifications
Why Choose Us
1. Our Factory
We are a factory specialized in producing motors for more than 14 years. With three production facilities, a professional R&D team, mature management, and experienced engineers, we ensure a reliable and pleasant experience.
2. Quality Control
In order to guarantee quality, every step from raw material receiving to final shipment is carefully inspected. Quality is the core basis of our development.
3. Our Service
Gold seller in possession of high credibility.
100% on-time delivery rate to confirm your products arrive timely.
Samples will be produced within 2 weeks. Customized samples will be produced within 3 weeks.
Timely response, your message will be replied within 2 hours.
Recommend Product
Frequently Asked Questions
1. Are you a trading company or a manufacturer?
We are a factory. We have specialized in micro DC motors and DC gear motors for more than 14 years.
2. What is the payment term for a new customer?
We can draw up an Online Assurance Order for our new customers, which can be paid online with Master Card, Visa, etc. Customers can also pay via PayPal or TT.
3. I cannot find a suitable motor on your website, can you customize the motor for me?
Yes, we can customize a suitable motor according to our customers' specific requirements.
4. Do you have certificates for your motors?
Yes, we have CE, FCC, ISO, and other key certifications. If you have other specific certificate requirements, we can apply for them for you.
5. How is your Quality Control managed?
We have professional inspection staff for every production line process. Once the complete motor is assembled, we use advanced testing equipment, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.
6. What is the production time for samples?
Standard samples are typically produced within 2 weeks, while customized sample orders are completed within 3 weeks.
