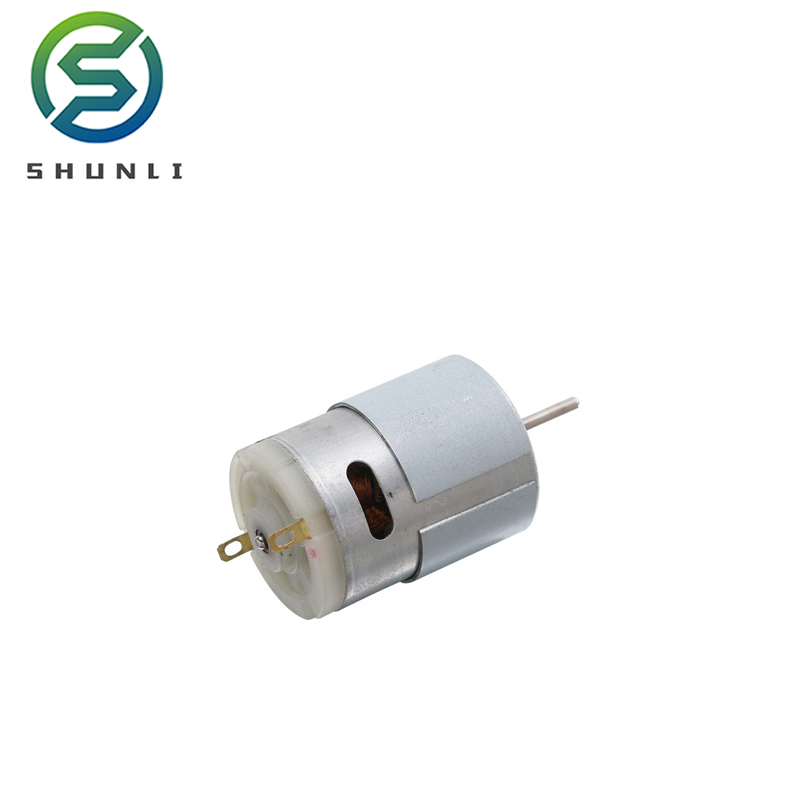

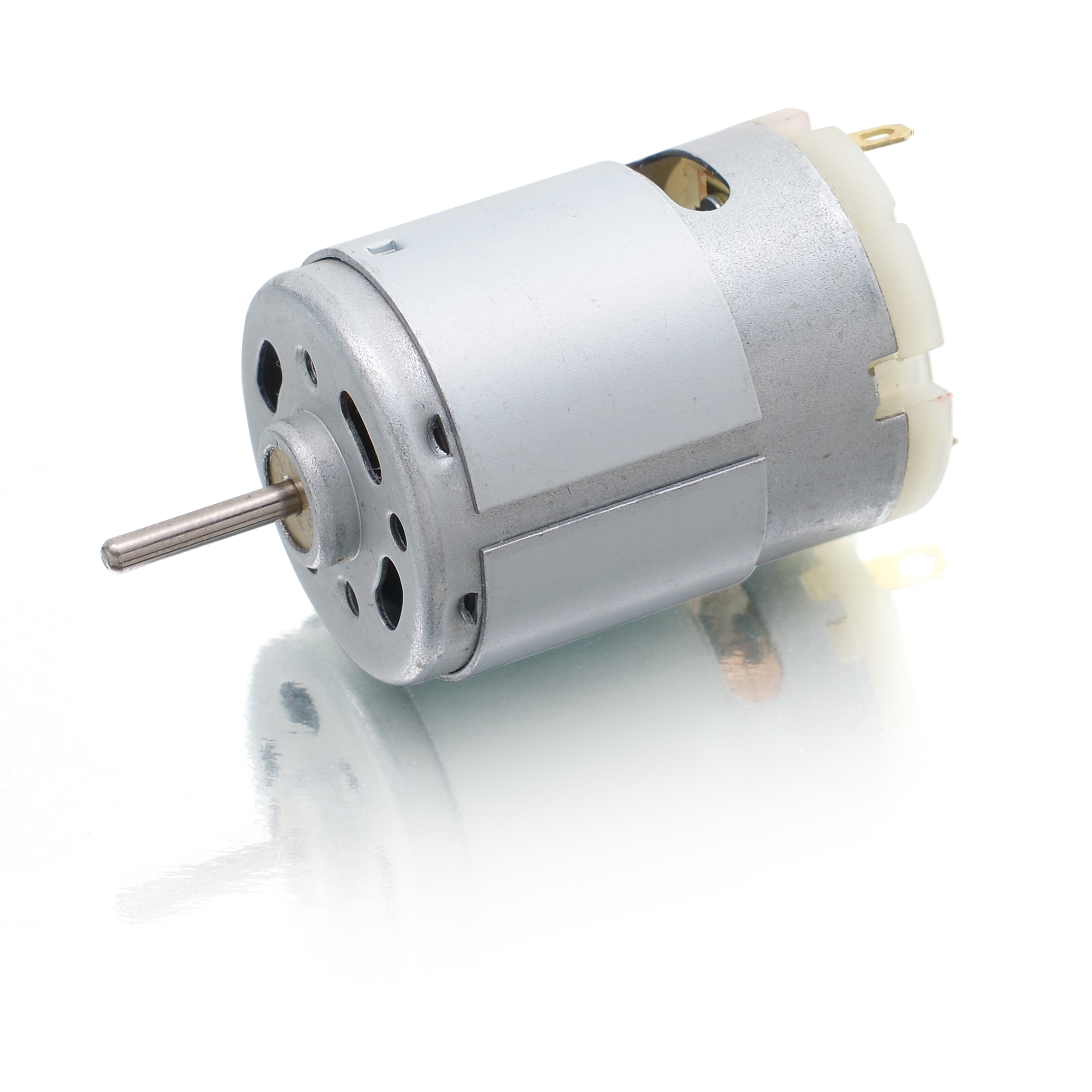

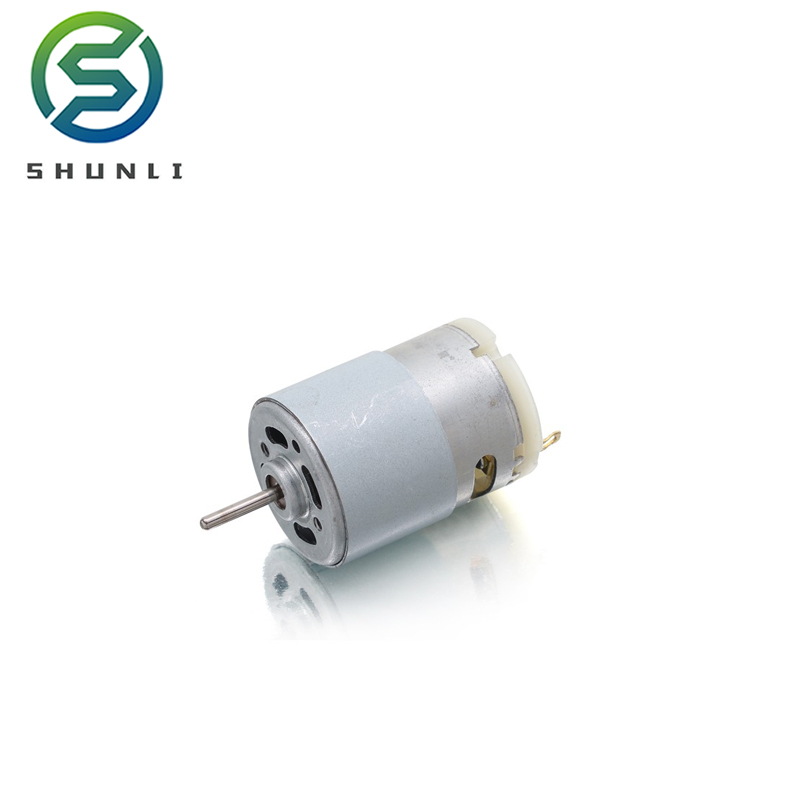

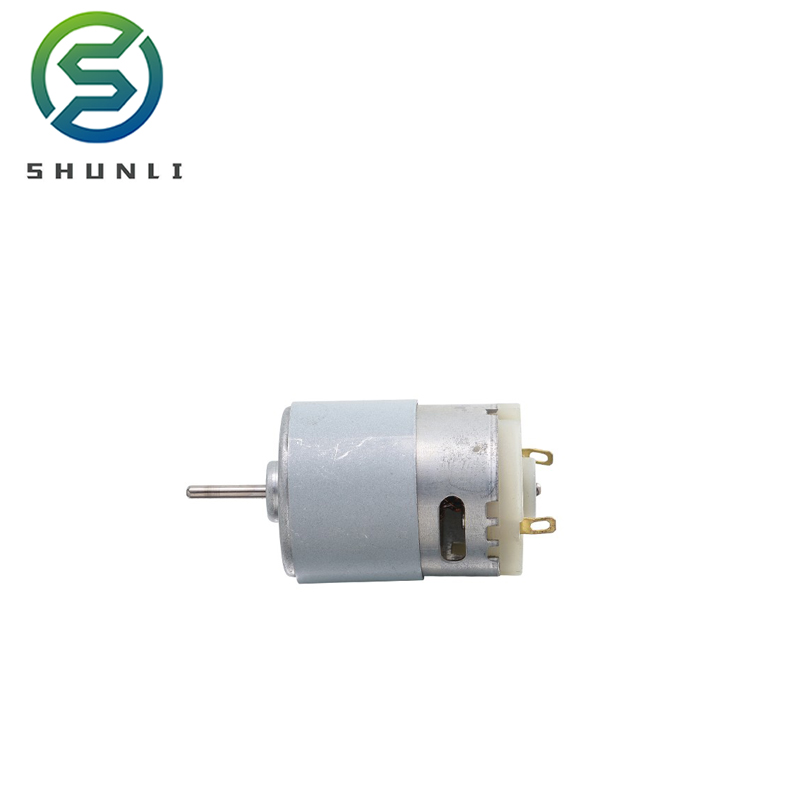

12 Dc Motor 9000 Rpm Brush Micro Motor 6-24v Is Available
Product Description
Promotion
Product Description
| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| RPM | A | RPM | A | mN.m / gf.cm | W | A | mN.m / gf.cm | ||||
| RS-380SH | 4052 | 3.0~6.0 | 4.8VDC | 7800 | 0.32 | 6701 | 1.95 | 9.9 / 101 | 6.98 | 11.9 | 70.6 / 720 |
| 3557 | 6.0~12.0 | 12VDC | 21200 | 0.44 | 18367 | 2.85 | 11.26 / 114.9 | 21.68 | 18.5 | 84.3 / 860 | |

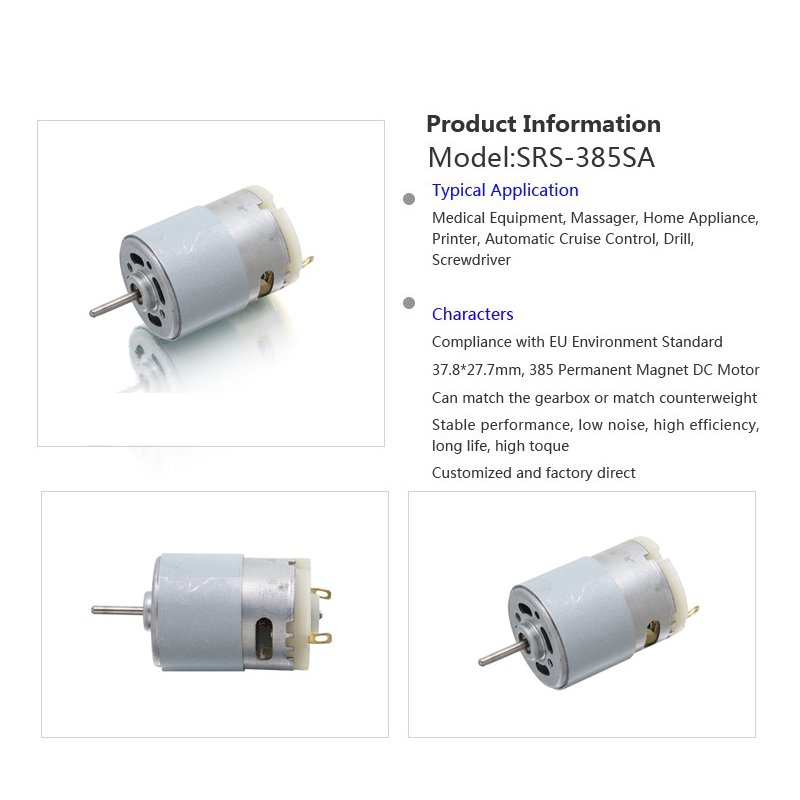

| RS-385SH | 17110 | 6.0~24.0 | 24VDC | 11000 | 0.15 | 9034 | 0.69 | 10.7 / 109 | 10.12 | 3.16 | 59.8 / 610 |
| 2267 | 6.0~12.0 | 12VDC | 10000 | 0.17 | 8340 | 0.85 | 7.5 / 76.5 | 6.53 | 4.29 | 45 / 459 | |
Application
Our Enterprise
Established in 2005, this high-tech enterprise integrates the research, development, production and sales of various kinds of micro DC motor, geared motor, planetary geared motor, shade pole geared motor and special gearbox motor. Products are widely used in automobiles, communications equipment, smart home, medical equipment, intelligent security, household appliances, western kitchen equipment, machinery and electronics and other high-end transmission structures. These premium products are exported to more than 50 countries and regions at home and abroad.
Production Process
Certifications
Frequently Asked Questions
1. Are you a trading company or a manufacturer?
We are a professional manufacturer. We have specialized in micro DC motors and DC gear motors for more than 14 years.
2. What is the payment term for new customers?
We can process secure online assurance orders for new customers, accepting credit cards (Mastercard, Visa), PayPal, or TT wire transfers.
3. Can you customize a motor if I cannot find a suitable model?
Yes, we offer fully customized motor solutions tailored precisely to your specific requirements and application parameters.
4. Do you have certificates for your micro DC motors?
Yes, we hold CE, FCC, and ISO certifications. If your market requires other specific certifications, we can apply for them to support your needs.
5. How do you manage quality control?
We maintain professional inspections at every stage of production. Finished motors undergo thorough testing using advanced equipment, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Chambers, and Noise Testers.
6. What is the typical operating voltage range of these micro motors?
Our micro DC motors generally operate within a flexible range of 6V to 24V DC, customizable to align with your specific system configurations.
