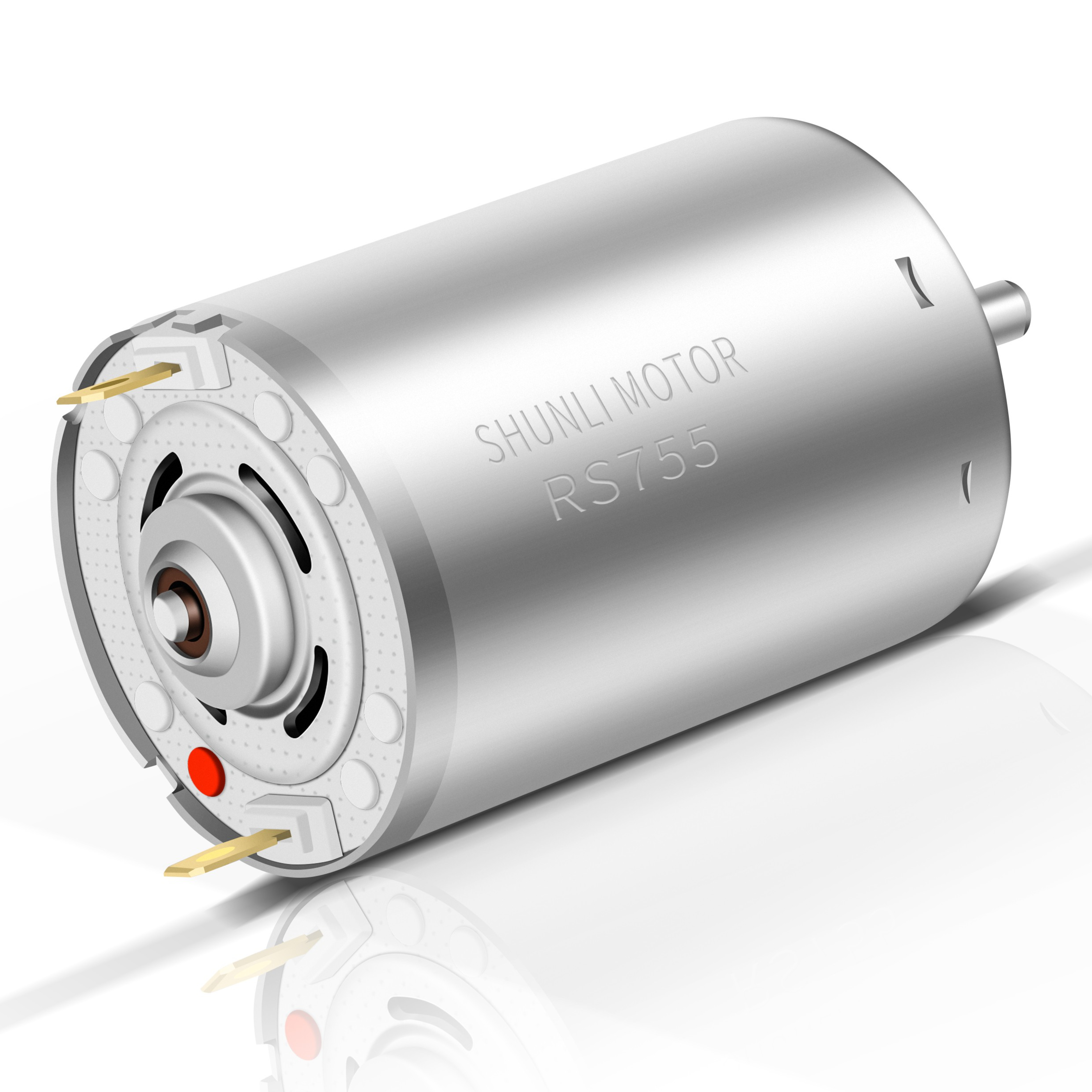

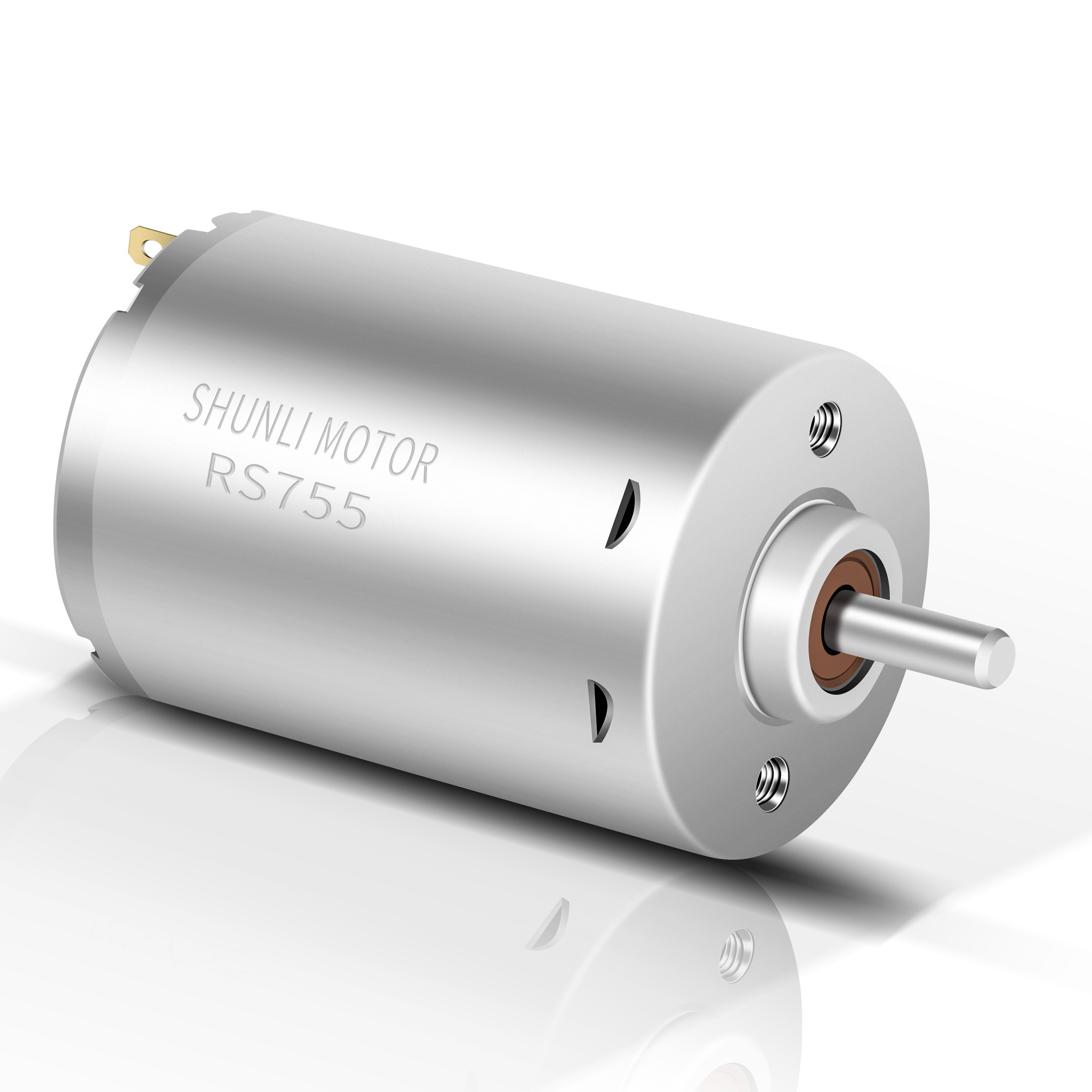

Powerfull 20000rpm rs 775 Mini High Speed 24 Volt Dc Motor
Product Description
Powerfull 20000rpm RS 775 Mini High Speed 24 Volt DC Motor
Product Details
⚙️
Motor Customized Specification, Please contact me.
Reference Drawing

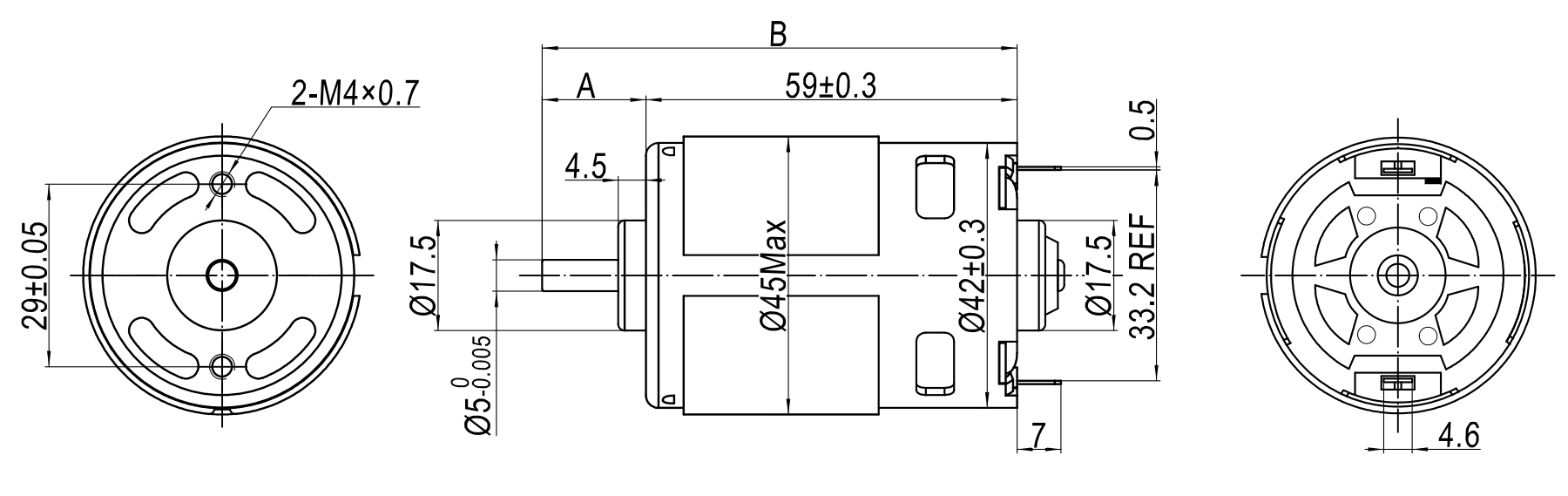

------ RS - 755 H

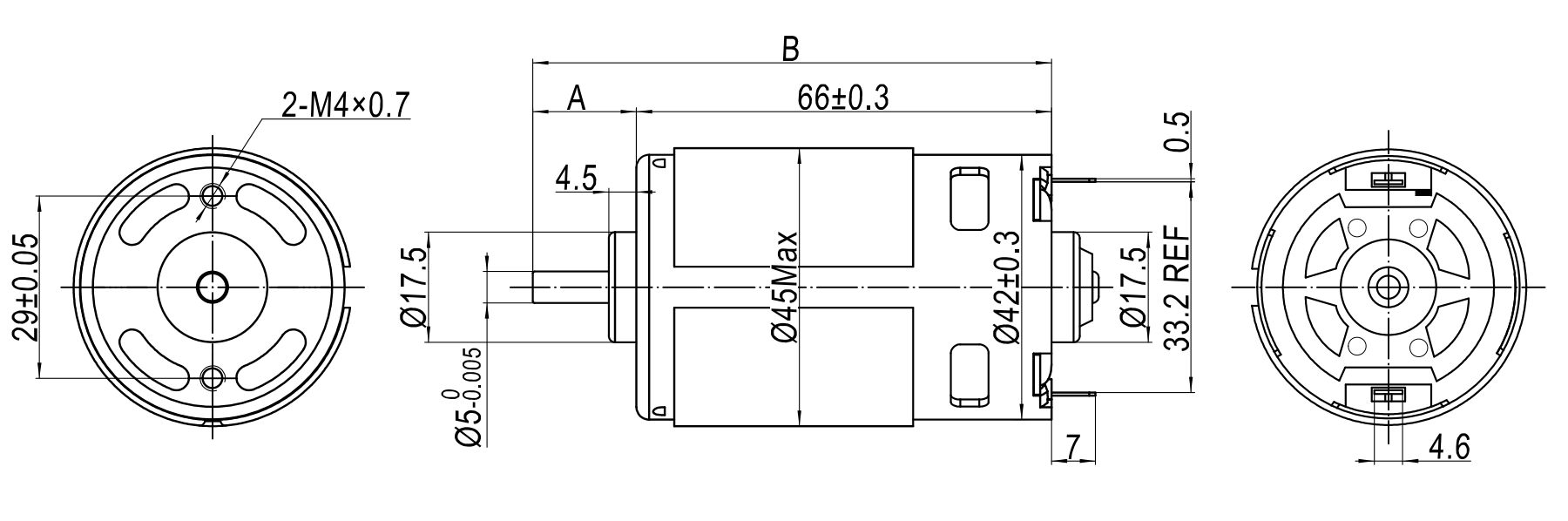

------ RS - 775 H
📏
The length of shaft can be customized, Please contact me.
Technical Specifications
| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| RPM | A | RPM | A | mN.m / gf.cm | W | A | mN.m / gf.cm | ||||
| RS-770H | 8523R | 6.0~12.0 | 12 VDC | 15000 | 2.2 | 13177 | 15.91 | 81 / 826.2 | 111.8 | 115 | 666.9 / 6802 |
| RS-775H | 25110R | 6.0~24.0 | 24 VDC | 3478 | 0.15 | 2925 | 0.75 | 44.4 / 452.9 | 13.35 | 4.07 | 245.7 / 2506 |
Application
Certifications
Recommend Product
Frequently Asked Questions
Are you a trading company or manufacturer?
We're a factory. We specialize in micro dc motor and dc gear motor for more than 14 years.
What is the payment term for a new customer?
We can draw up an Online Assurance Order for our new customer, which can be paid online with Master Card, Visa, etc. Customers can also pay with PayPal, TT, etc.
I can't find a suitable motor on your website, can you customize the motor for me?
Yes, we can customize a suitable motor according to our customer's specific requirements.
Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, etc. If you have other certification requirements, we can apply for them for you.
How is your Quality Control?
We have professional checking staff on every production line process. After finishing the whole motor, we use specialised testing machinery to evaluate it, such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise testers.
