390 Dc Motor for Machine Fan From Shenzhen Supplier 12v 6000rpm Motor
Product Description
390 DC Motor for Machine Fan - 12V 6000RPM Motor

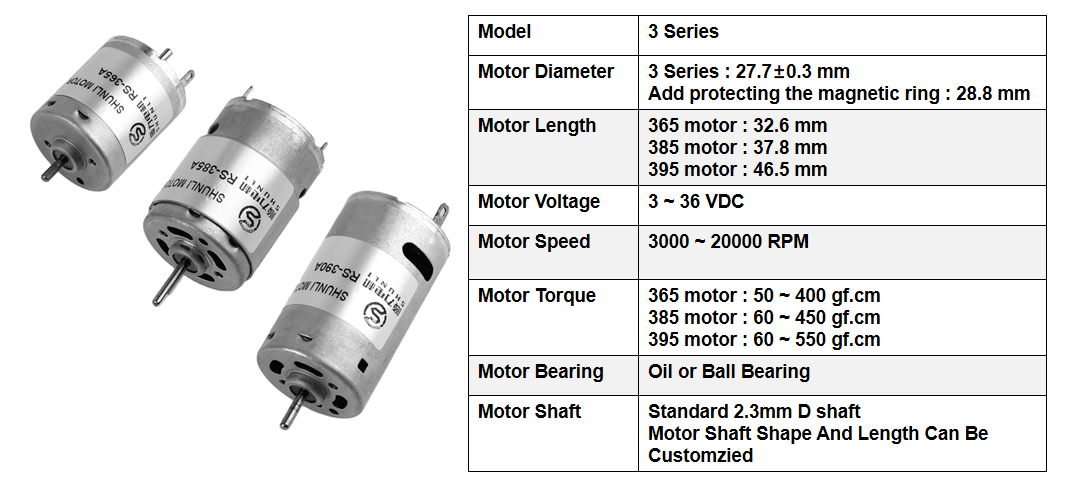

Product Details
Motor Customized Specification, Please contact me.
Reference Drawing

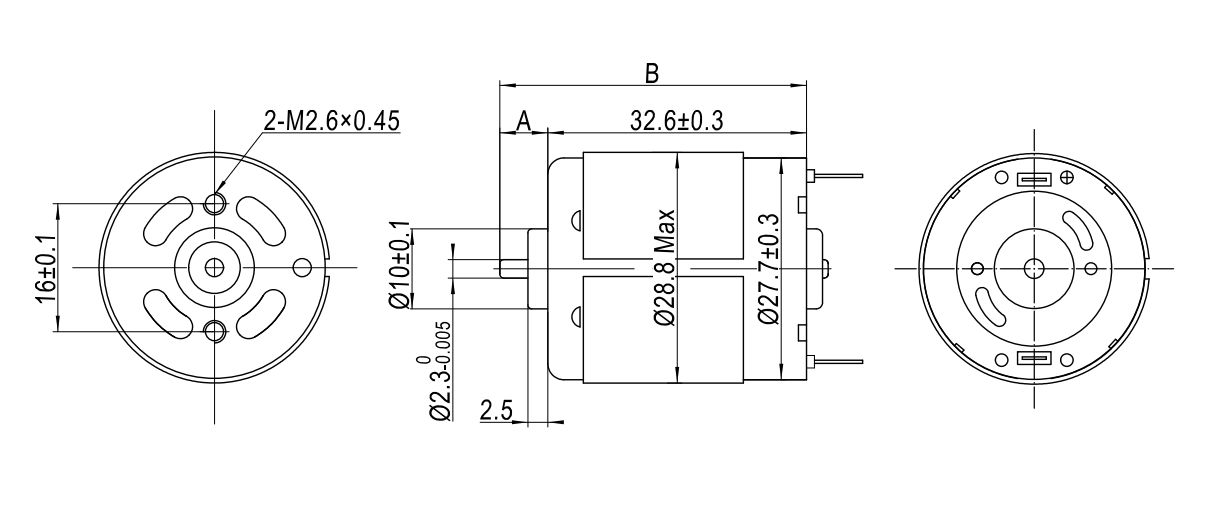

------ RS - 365

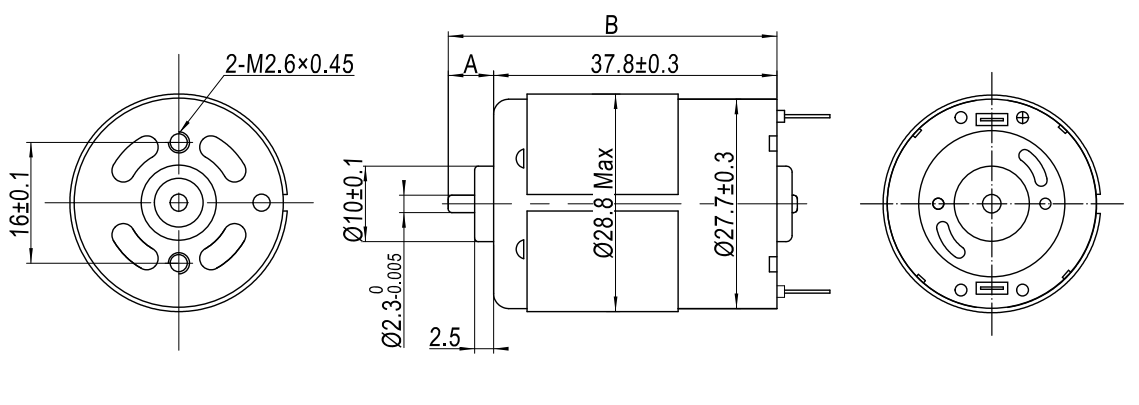

------ RS - 385

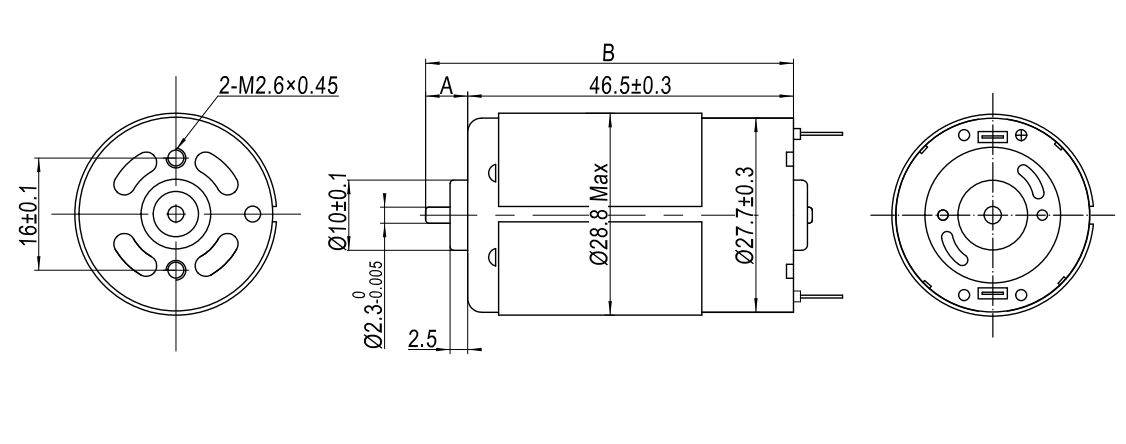

------ RS - 395
The length of shaft can be customized, Please contact me.
Reference Datasheet
| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed (RPM) | Current (A) | Speed (RPM) | Current (A) | Torque (mN.m / gf.cm) | Power (W) | Current (A) | Torque (mN.m / gf.cm) | ||
| RS-390SH | 20156R | 6.0~12.0 | 12VDC | 5000 | 0.08 | 4243 | 0.33 | 6.07/61.9 | 2.72 | 2.22 | 42.2/430 |
| 2975 | 6.0~12.0 | 12VDC | 12000 | 0.29 | 10165 | 0.33 | 5.75/58.6 | 1.31 | 8.9 | 80.4/820 | |
| RS-395SH | 15130 | 6.0~12.0 | 12VDC | 3650 | 0.66 | 2949 | 0.25 | 5.83/59.5 | 1.8 | 1.06 | 30.4/310 |
| 15100R | 6.0~24.0 | 24VDC | 10300 | 0.07 | 8893 | 0.38 | 7.09/72.3 | 6.68 | 2.66 | 54.9/560 | |
Give us a chance to cooperate with you!
Frequently Asked Questions (FAQ)
What is the typical operating voltage for the RS-390 and RS-395 motors?
The typical nominal operating voltage is 12VDC or 24VDC, depending on the specific model variation, with general operating ranges spanning from 6.0V to 24.0V.
Can the shaft length of these DC motors be customized?
Yes. The length of the shaft can be customized according to your specific application requirements.
What is the speed range of the RS-390SH models?
The no-load speed ranges from 5,000 RPM (for model 20156R at 12V) up to 12,000 RPM (for model 2975 at 12V), providing versatile power choices for machine fans.
Are customized electrical specifications available?
Yes, customized motor specifications can be designed and manufactured to align perfectly with your technical parameters.
What is the typical application for these PMDC motors?
These motors are ideally designed for machine fans, household appliances, and other micro-electromechanical components requiring reliable DC power.
