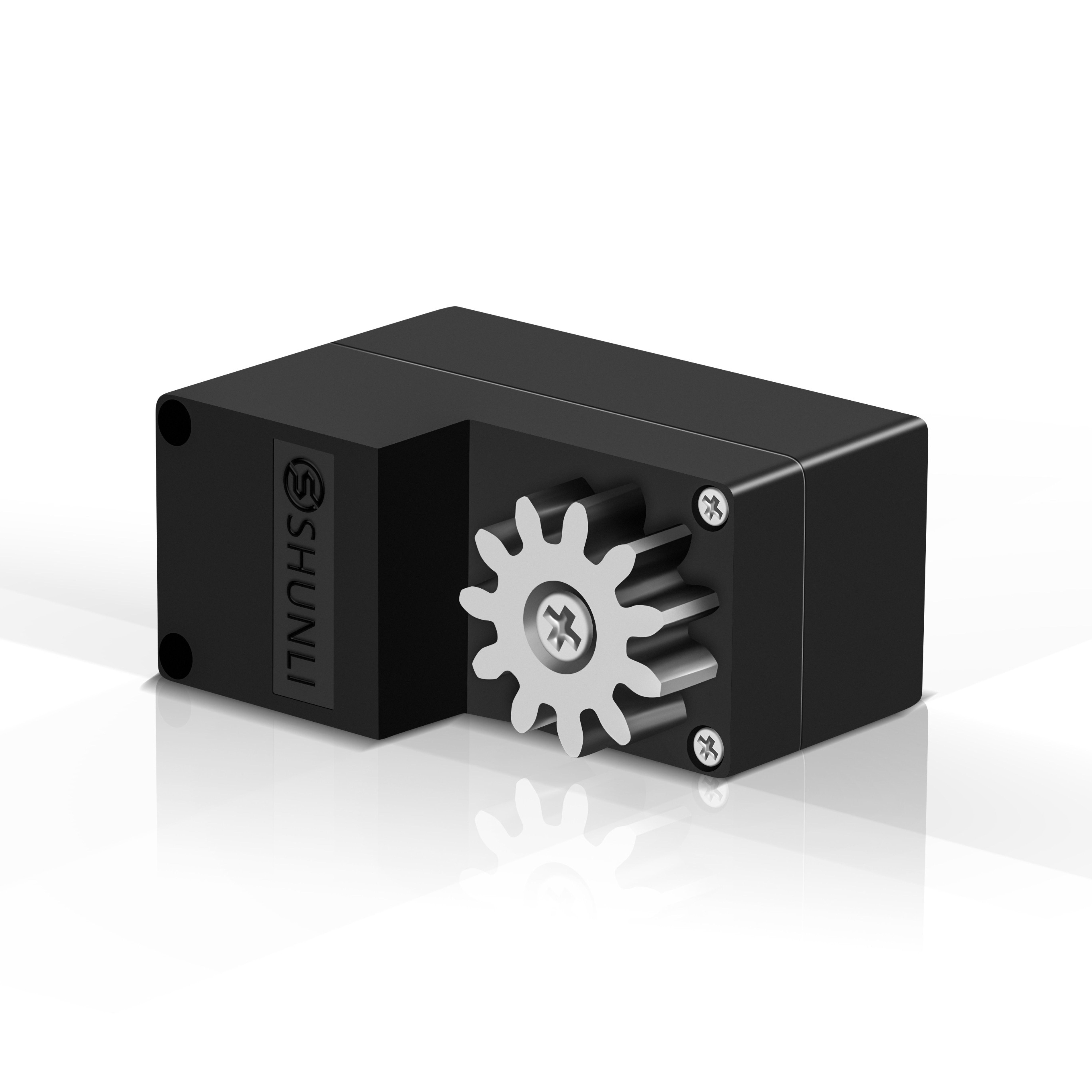

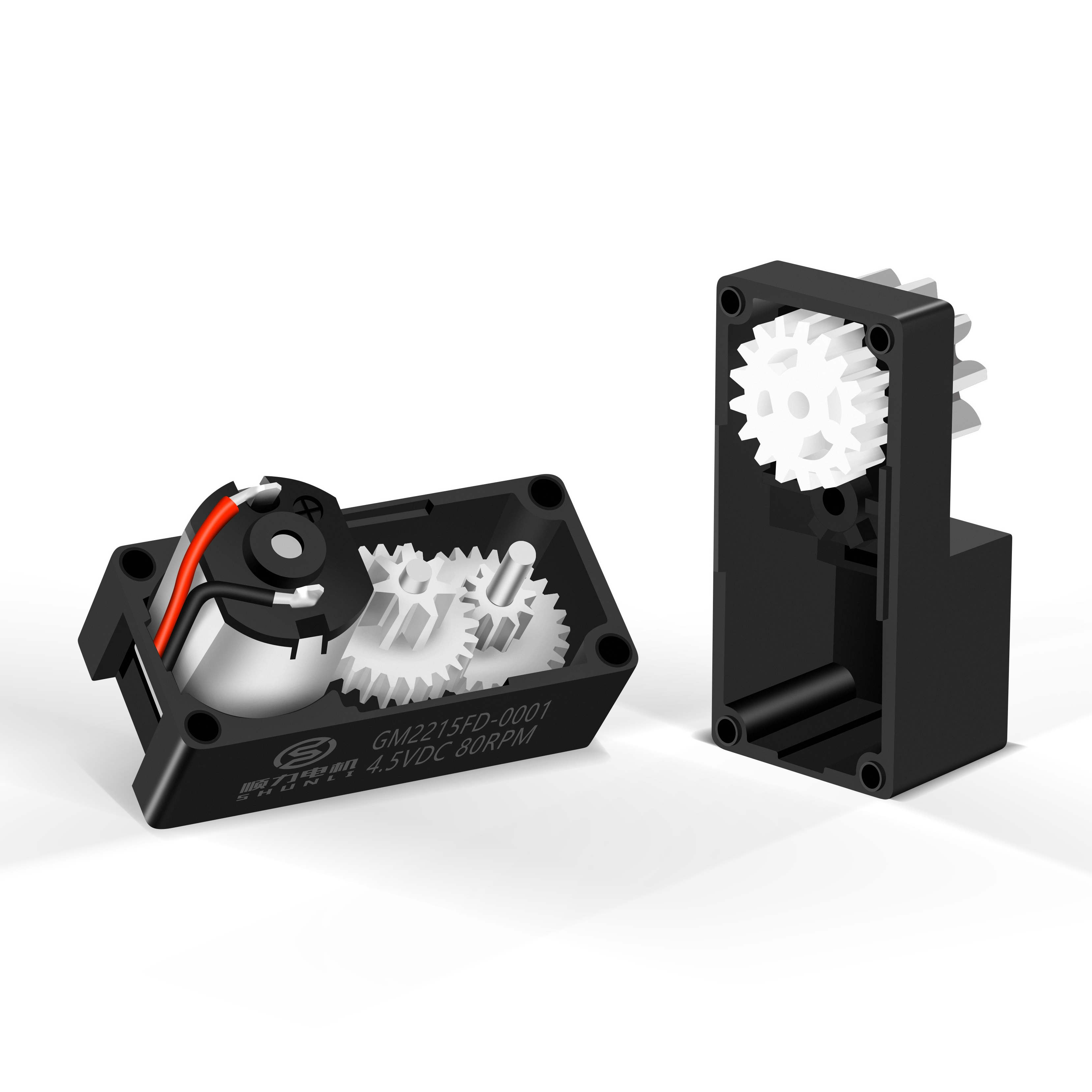

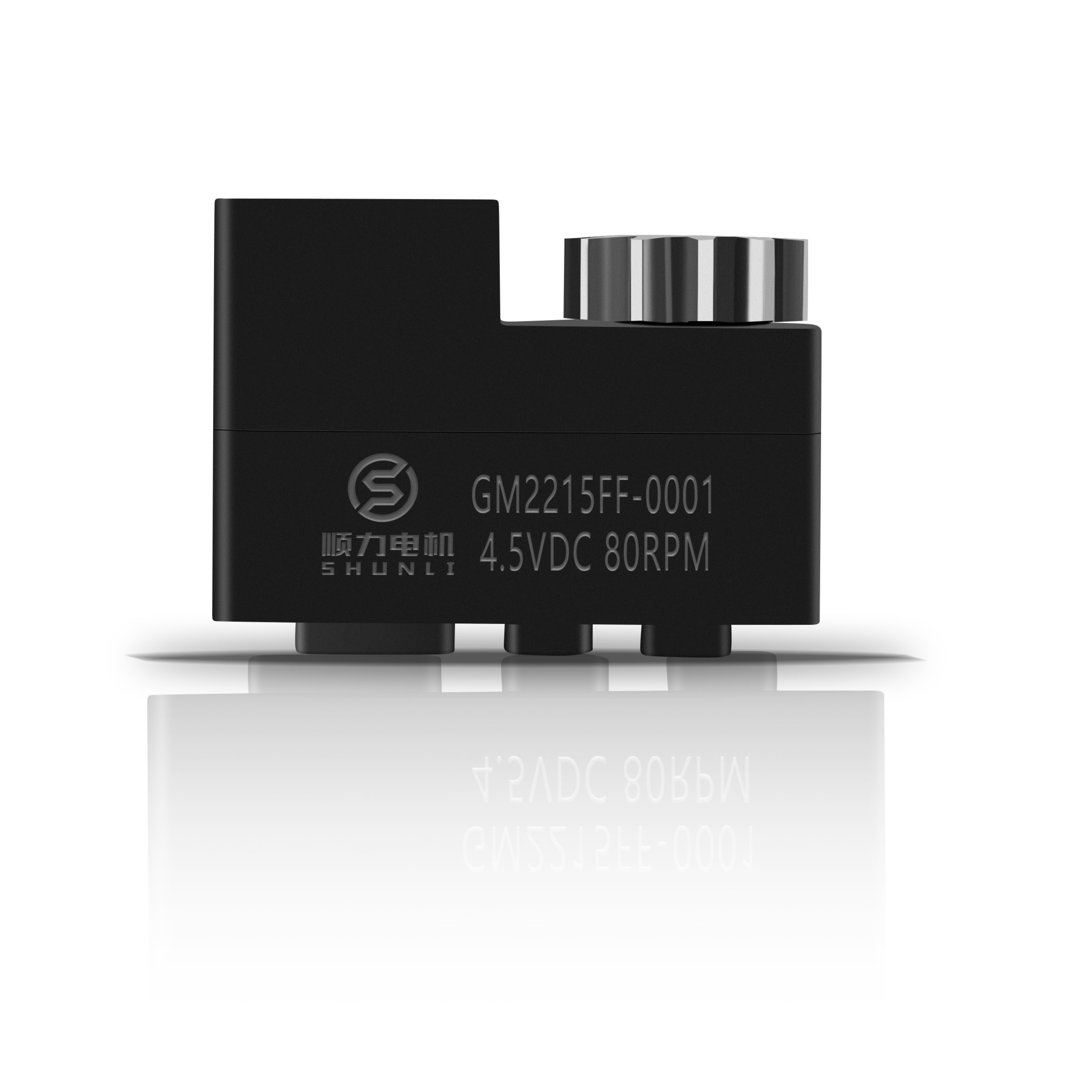

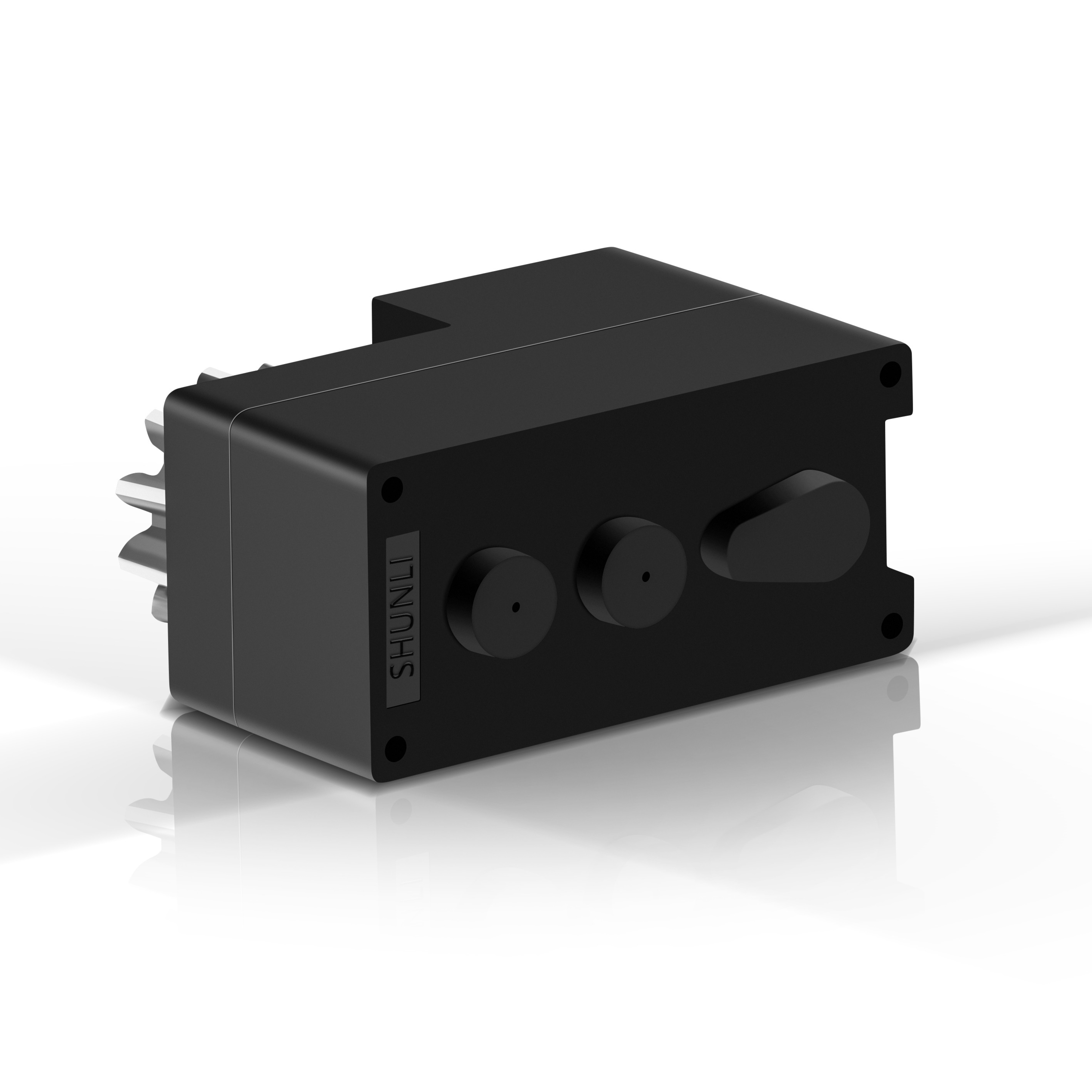

4.5v Dc Gear Motor for Electric Lock Low Rpm 60rpm Shunli Permanent Magnet Brush Customized 30-100RPM
Product Description
Gearbox Technical Data
| Ratio | Max. Rated Torque | Max. Gear Breaked Torque | Gearbox Efficiency |
|---|---|---|---|
| 241k | 1.5~2.0 Kgf.cm | 4~5 Kgf.cm | 45%~60% |
Gearmotor Technical Data
| Model | Ratio | Voltage | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| RPM | mA | RPM | mA | Torque (Kgf.cm) | mA | Torque (Kgf.cm) | |||
| GM2215FMN20-241K | 1:241 | 4.5 VDC | 43 | ≤ 50 | 34 | ≤ 120 | 2.5 | ≤ 350 | 1.5 |
| 58 | ≤ 65 | 50 | ≤ 130 | 2.8 | ≤ 680 | 1.8 | |||
| 68 | 75 | 56 | ≤ 140 | 3.0 | ≤ 750 | 2.0 | |||
PMDC Motor Technical Data
| Model | Voltage | No-Load RPM | No-Load mA | Rated RPM | Rated Torque (gf.cm) | Stall Torque (gf.cm) |
|---|---|---|---|---|---|---|
| SL-N20-04510500 | 4.5 VDC | 10500 | ≤ 30 | 8250 | 2.0 | 10.5 |
| SL-N20-04514000 | 4.5 VDC | 14000 | ≤ 40 | 12000 | 2.5 | 15.0 |
| SL-N20-04516500 | 4.5 VDC | 16500 | ≤ 50 | 13500 | 2.5 | 18.0 |
1. Manufacturing Excellence
We are a professional factory specializing in producing motors for more than 14 years. Our expert R&D team and mature management systems ensure a superior product experience.
2. Strict Quality Control
Quality is the basis of our development. Every step, from material receipt to final shipment, is carefully checked by professional staff using advanced testing equipment.
1 Are you a trading company or a manufacturer?
We are a factory. We have specialized in micro DC motors and DC gear motors for more than 14 years.
2 Can you customize a motor for my specific needs?
Yes, we can customize a suitable motor according to our customers' specific technical requirements.
3 What are the payment terms for new customers?
New customers can pay online via Assurance Orders (Master Card, Visa), PayPal, or T/T.
4 Do your motors come with international certifications?
Yes, we hold CE, FCC, ISO, and other relevant certificates. We can apply for additional certifications if required.
5 How do you manage quality control?
We employ professional inspectors at every stage of production. Finished motors undergo rigorous testing using hardness testers, 2.5D image testers, salt spray chambers, and life testers.
6 What type of motors do you specialize in?
We specialize in a wide range of micro DC motors, including gear motors, planetary motors, brushless motors, and vibration motors.
