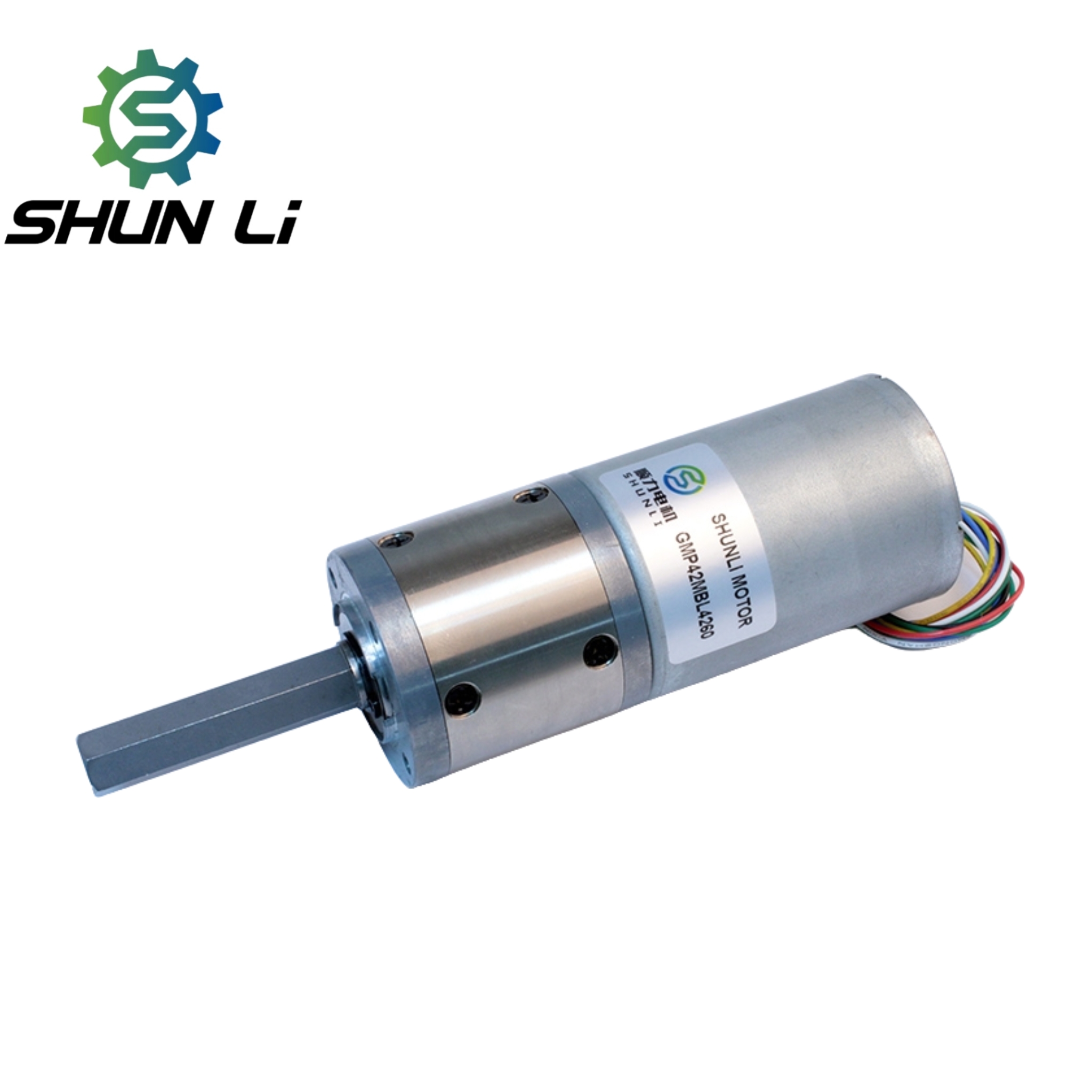

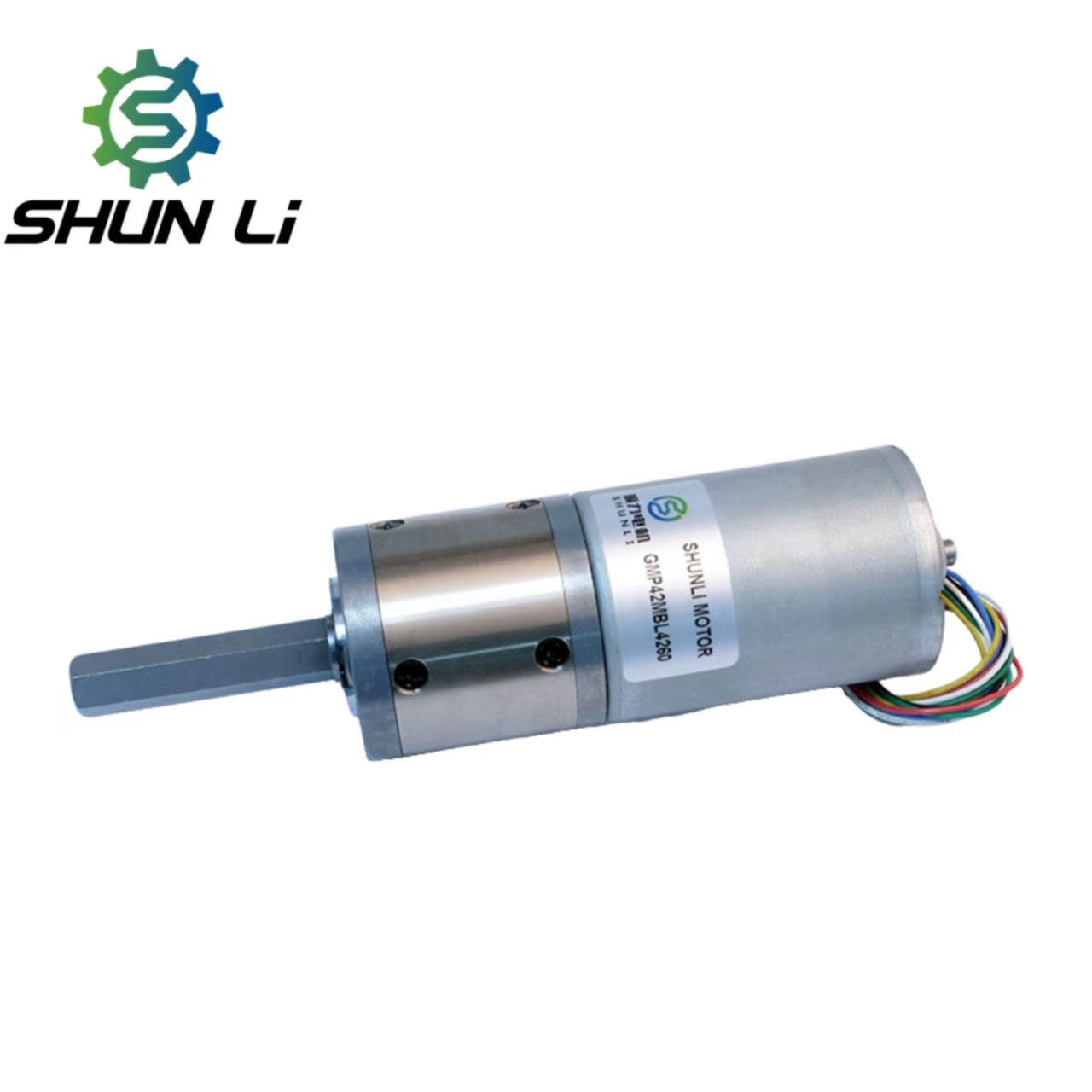

6 Wire Brushless DC Motor Sensored Brushless Motor with Speed Control
Product Description
📊 Specification Details
| Product Model | GMP42MBL4260 |
| Gearbox Length | 33.5~67.5mm |
| Speed | 8RPM-135RPM |
| Voltage | 12V/24V |
| Torque | 2.5 N.m/6.0 N.m |
| Support Customization | The Transmission Dimensions And Motor Parameters Can Be Customized |

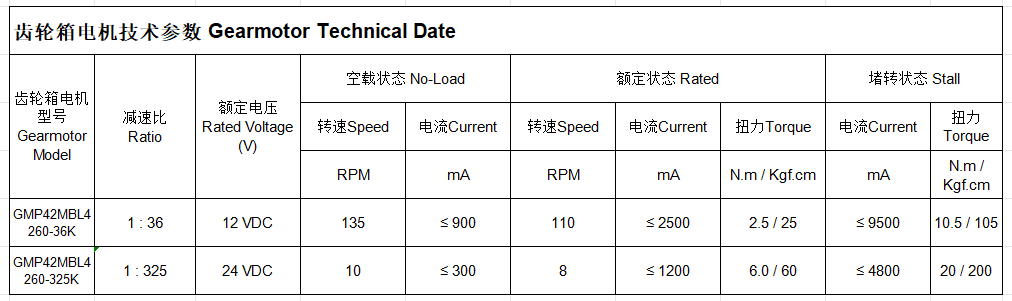

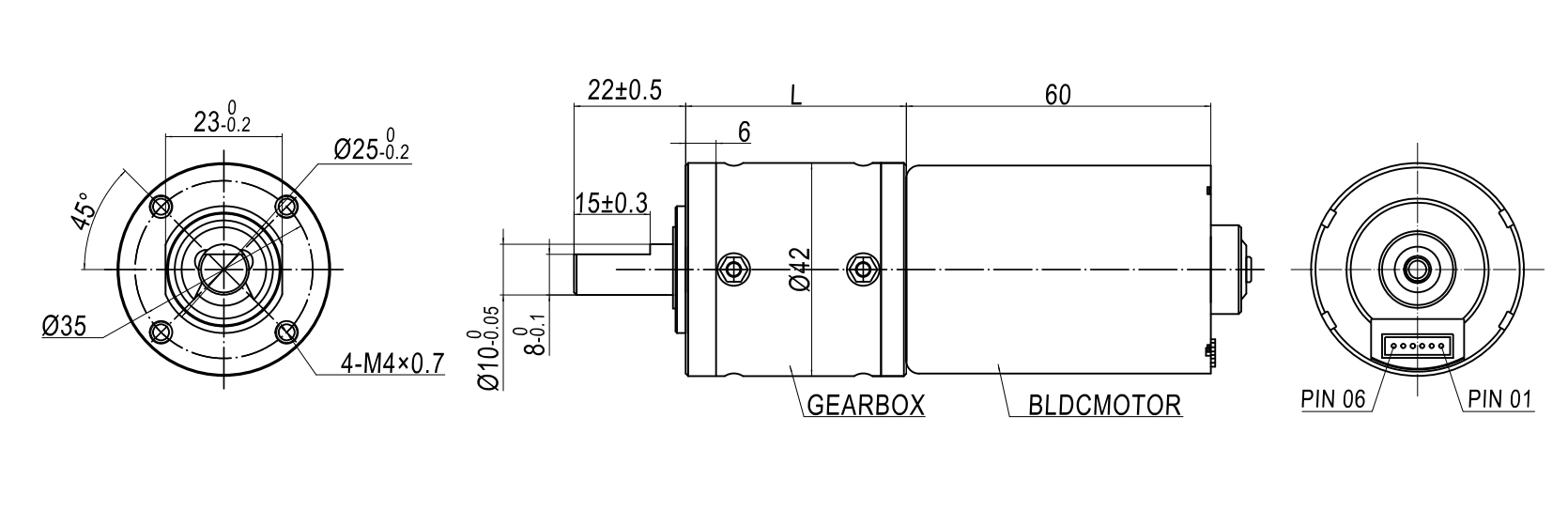

⚙️ Technical Dimensions & Performance

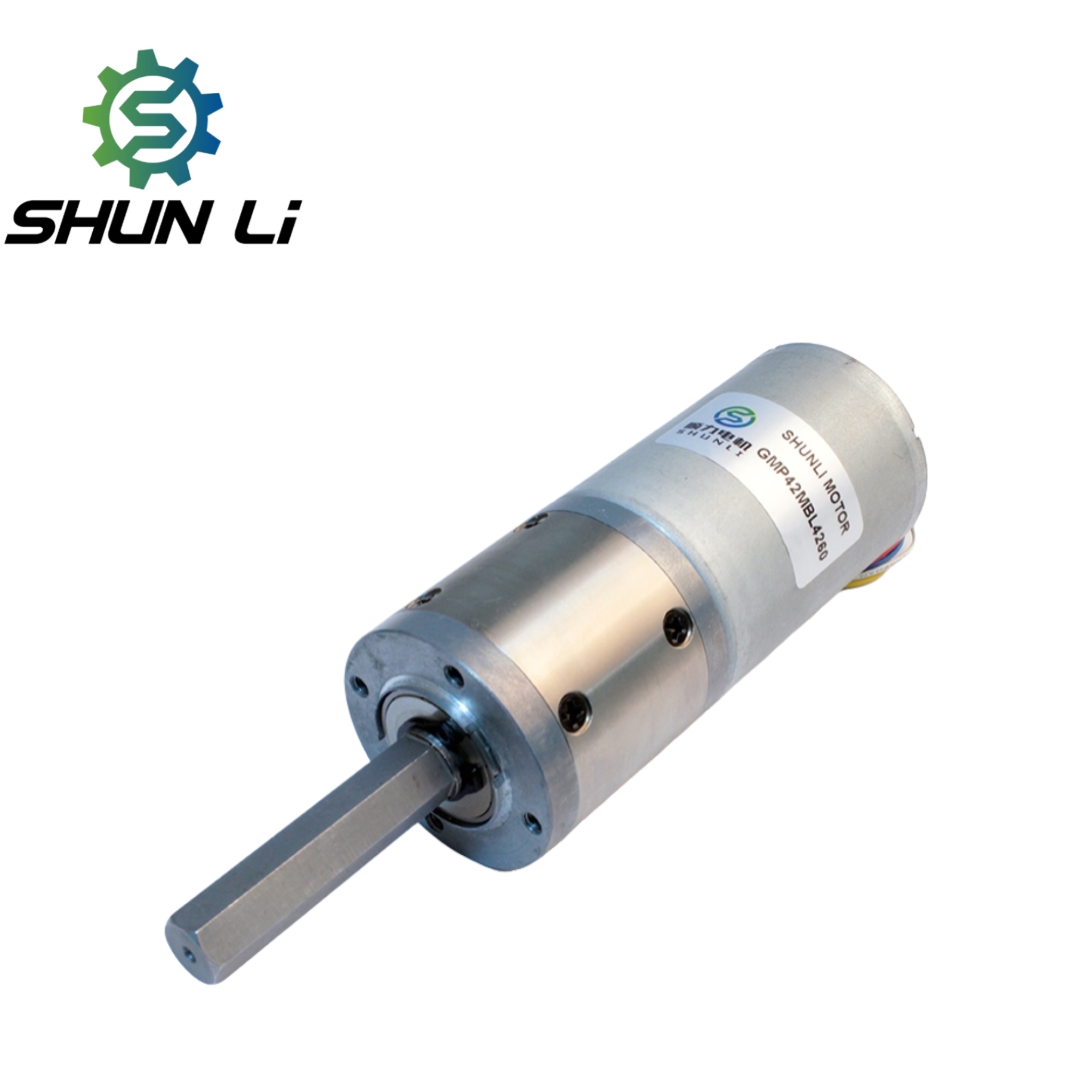

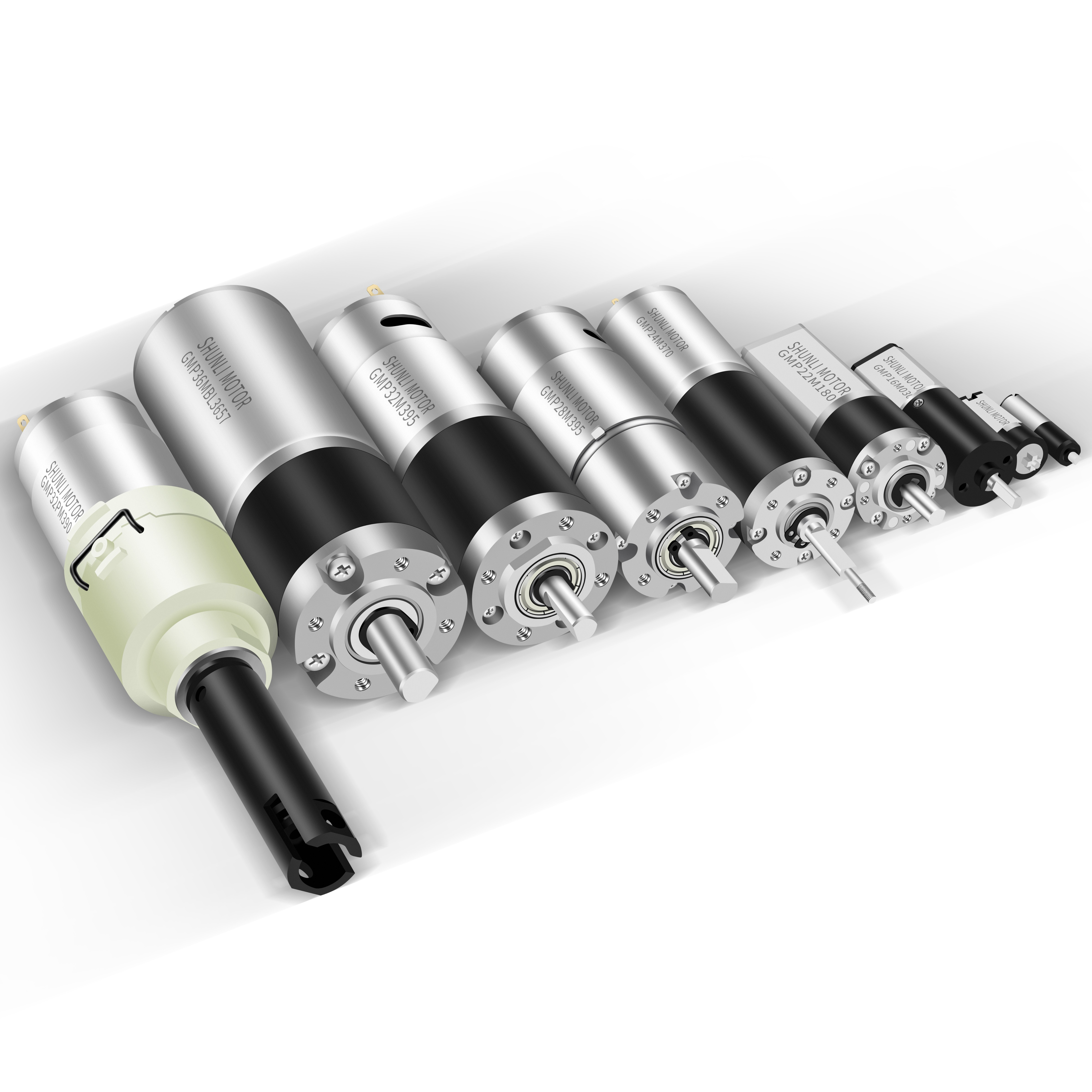

📸 Product Display
❓ Frequently Asked Questions
Are you a trading company or manufacturer?
We're a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.
What is the payment term for a new customer?
We can draw up an Assurance Order Online for our new customers, which can be paid online with Master Card, Visa, etc. Customers can also pay with PayPal or TT.
I can't find a suitable motor on your website, can you customize the motor for me?
Yes, we can customize a suitable motor according to our customer's specific requirements.
Do you have certificates for the motors?
Yes, we have CE, FCC, ISO, and other relevant certificates. If you have other specific certificate requirements, we can apply for them for you.
How is your Quality Control?
We have professional checking staff on every production line process. After finishing the motor, we use advanced testing machinery including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise testers to ensure quality.
What is the standard lead time for customized orders?
The lead time for customized motor parameters and transmission dimensions varies based on technical complexity; please consult our technical team for a detailed timeline.
