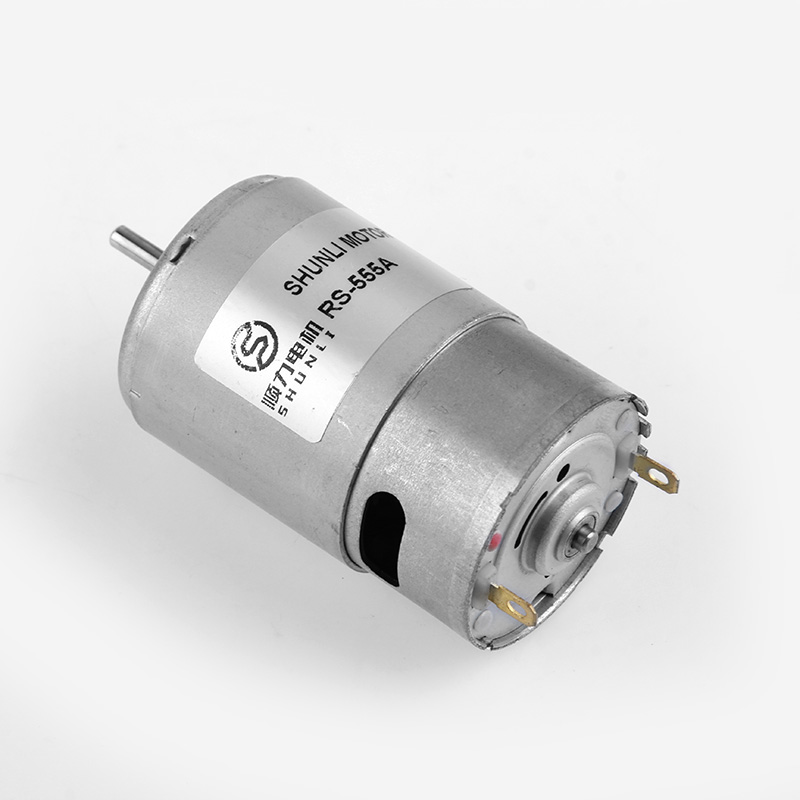

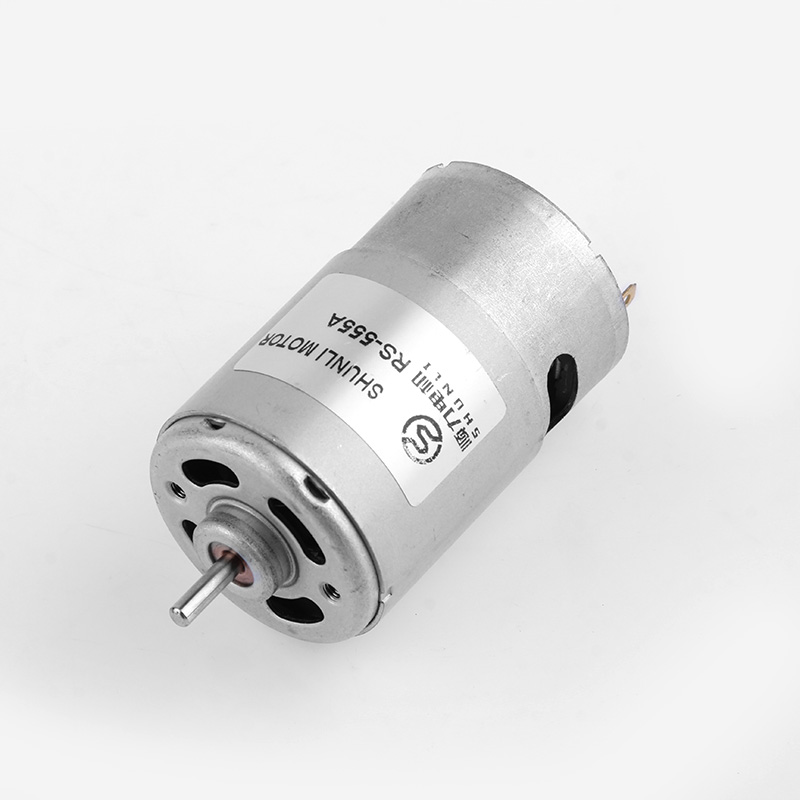

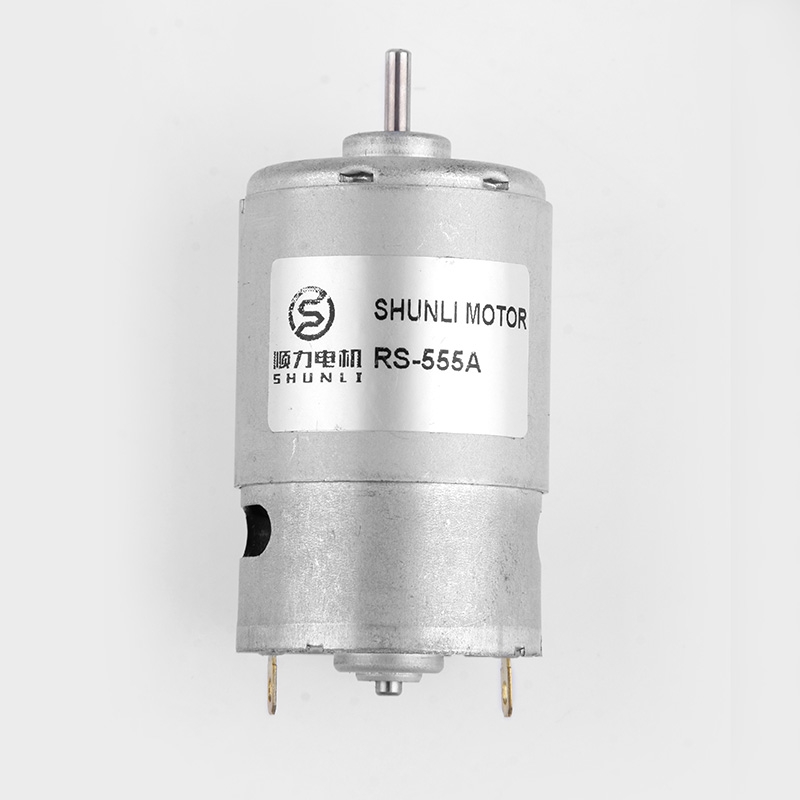

Small Size High Power High Rpm 12v 24v Gear Motor for Vacuum Cleaner/cordless Power Tools/sewing Machine
Product Description
Small Size High Power High RPM 12V 24V Gear Motor for Vacuum Cleaner / Cordless Power Tools / Sewing Machine
Promotion
Product Description
| PMDC MOTOR TECHNICAL DATA | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| RPM | A | RPM | A | mN.m / gf.cm | W | A | mN.m / gf.cm | ||||
| RS-550H | 23128R | 6.0~24.0 | 24VDC | 4500 | 0.1 | 3932 | 0.39 | 25.7 / 262 | 10.6 | 4.8 | 204 / 2080 |
| 6034 | 6.0~12.0 | 12VDC | 16000 | 1.12 | 13613 | 4.96 | 25.6 / 261.3 | 40.36 | 48.89 | 281.4 / 2870 | |
| RS-555H | 3540 | 6.0~12.0 | 12VDC | 7800 | 0.3 | 6708 | 1.84 | 21.9 / 223.4 | 15.35 | 11.31 | 156 / 1591 |
| 23100 | 6.0~24.0 | 24VDC | 7000 | 0.14 | 6004 | 0.77 | 19.2 / 195.8 | 12.09 | 4.2 | 124.5 / 1270 | |
Applications
Customer Evaluation
Certifications
Recommend Products
Contact Us
Looking forward to your feedback!
We are committed to providing high-quality micro DC motor solutions customized to your needs.
Frequently Asked Questions
Are you a trading company or a manufacturer?
We're a factory. We specialize in micro DC motors and DC gear motors with more than 14 years of industry experience.
What is the payment term for new customers?
We can draw up an Online Assurance Order for our new customers, which can be paid online with Mastercard, Visa, etc. Customers can also pay via PayPal, T/T, and other convenient methods.
I can't find a suitable motor on your website, can you customize the motor for me?
Yes, we can customize a suitable motor configuration according to our customer's specific technical and dimensional requirements.
Do you have certificates for the motors?
Yes, we hold CE, FCC, ISO, and other relevant certifications. If you have additional certification requirements, we can apply for them to support your market needs.
How do you manage your quality control?
We have professional quality checking staff at every stage of the production process. After completing the motor assembly, we perform comprehensive performance testing using testing equipment such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, and Noise Testers.
What information is needed to get a quick quotation?
To receive a precise proposal, please provide your target voltage, speed (RPM), torque requirements, dimensions, shaft specifications, and estimated annual usage volume.
