6V 12V 18V DC Motor RS 550 545 555 High RPM Speed DC Motor 15000RPM
Product Description
High RPM Speed DC Motor RS 550 / 545 / 555 Series
⚡ Application & Features
Product Performance Details
These 6V, 12V, and 18V DC motors provide exceptional speed reaching up to 30,000 RPM, designed for high-efficiency industrial and hobbyist applications.
⭐ High Speed 30000RPM
⭐ Multiple Voltage Options
⭐ Durable PMDC Design
⭐ Precision Engineering
Motor Customized Specification Available
📊 PMDC Motor Technical Data
| PMDC MOTOR TECHNICAL DATA | |||||||||
| Model | Rated Voltage(V) | No-Load | Rated | ||||||
| Operating Range | Nominal | Speed (RPM) | Current (A) | Speed (RPM) | Current (A) | Torque (mN.m) | Power (W) | ||
| RS-550H | 23128R | 6.0~24.0 | 24VDC | 4500 | 0.1 | 3932 | 0.39 | 25.7 | 10.6 |
| 6034 | 6.0~12.0 | 12VDC | 16000 | 1.12 | 13613 | 4.96 | 25.6 | 40.36 | |
| RS-555H | 3540 | 6.0~12.0 | 12VDC | 7800 | 0.3 | 6708 | 1.84 | 21.9 | 15.35 |
| 23100 | 6.0~24.0 | 24VDC | 7000 | 0.14 | 6004 | 0.77 | 19.2 | 12.09 | |
📐 Dimensional Specifications

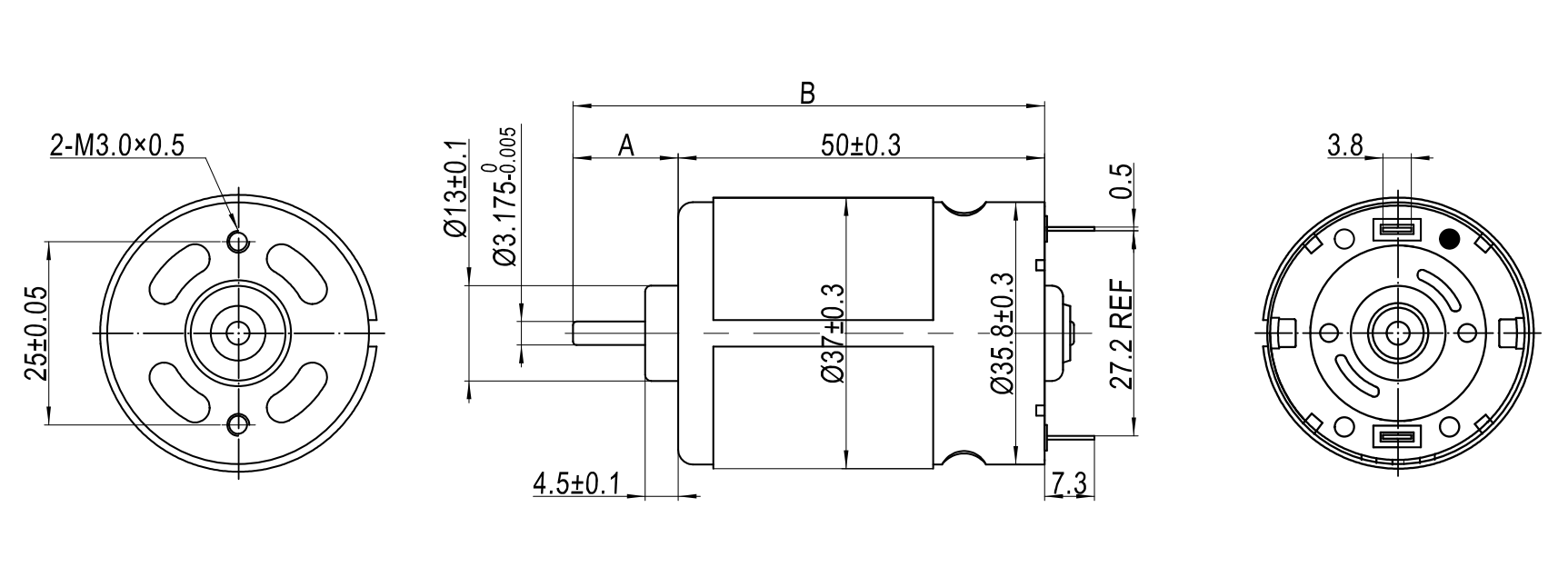

------ RS - 545 A Specification Drawing

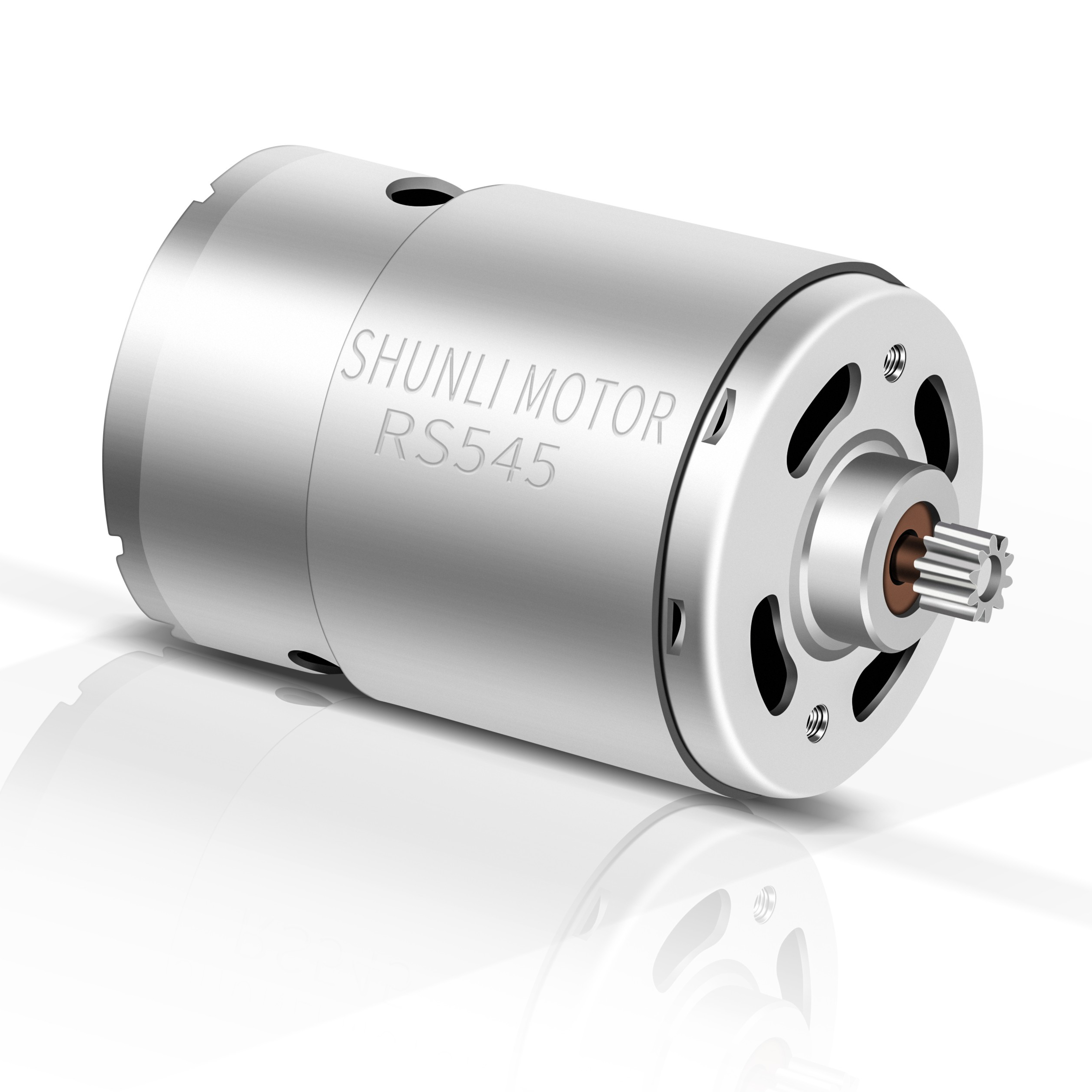

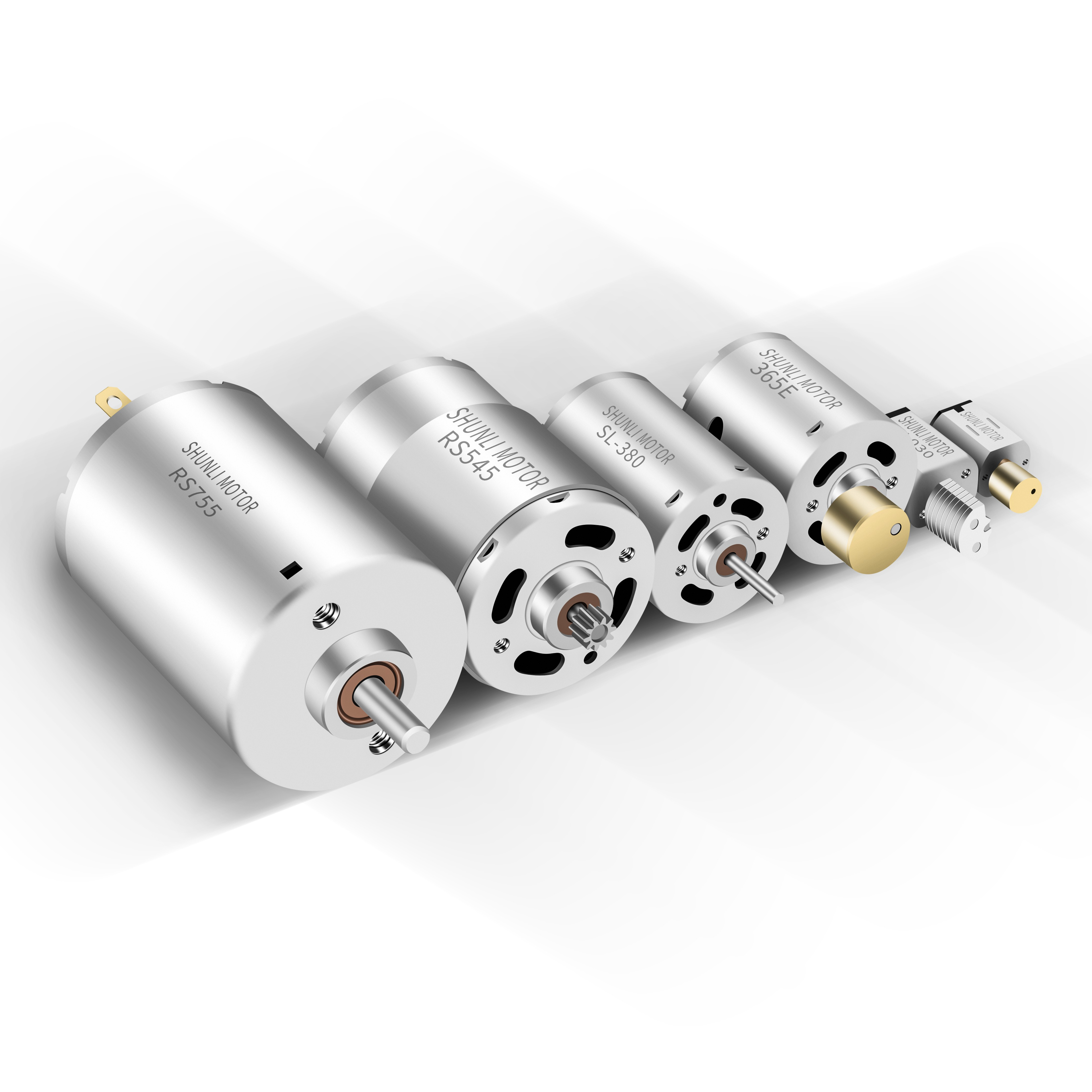

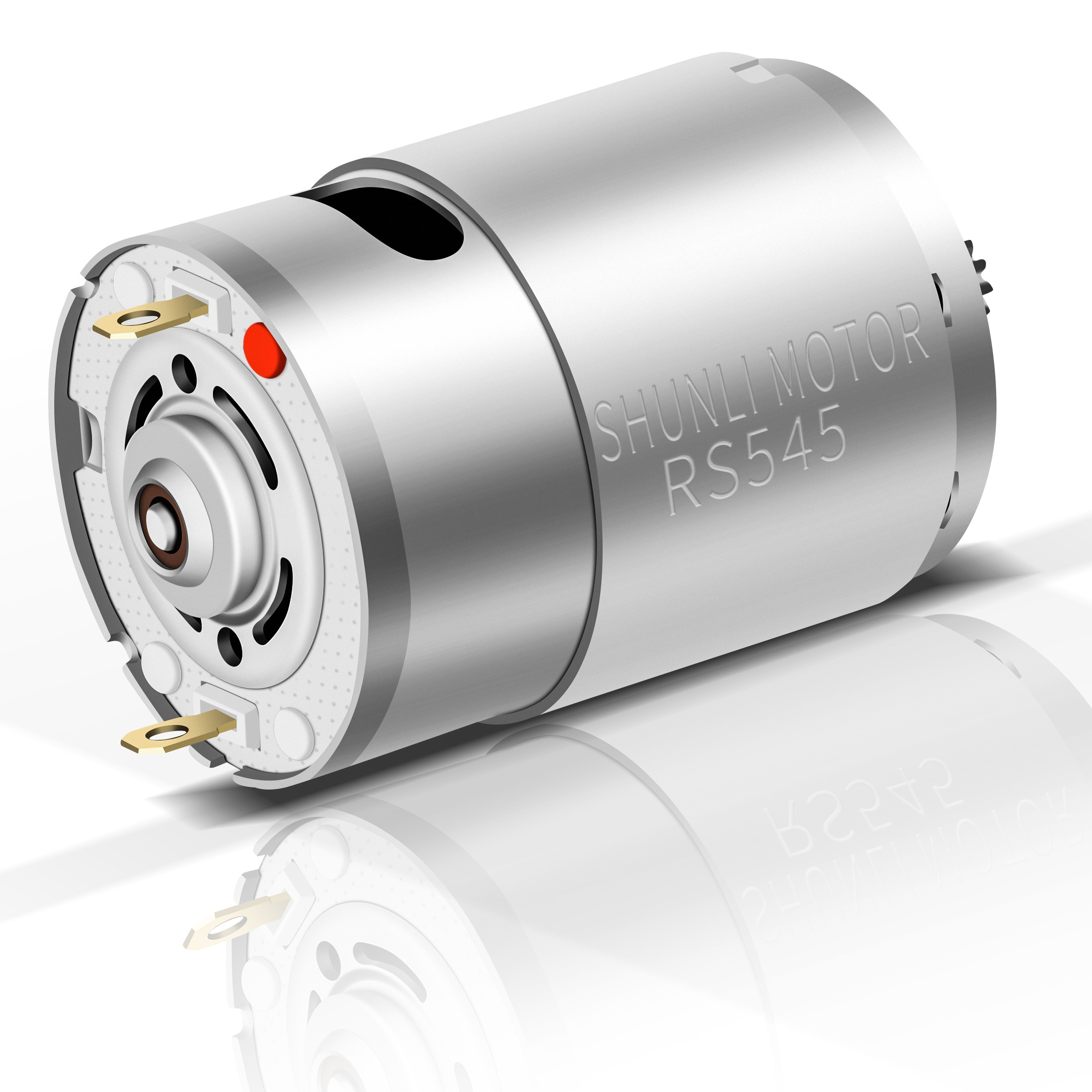

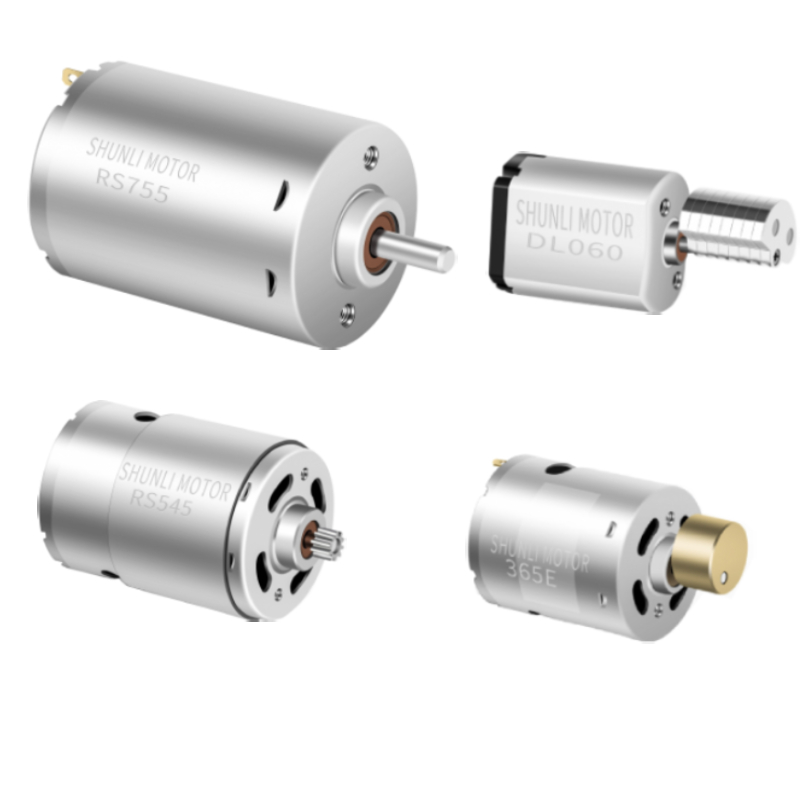

📸 Product Gallery
Frequently Asked Questions
What is the voltage range for these motors?
The motors are designed to operate within a range of 6.0V to 24.0V DC, with nominal ratings typically at 12V or 24V depending on the specific model.
Can the technical specifications be customized?
Yes, we offer customized specifications for motor speed, voltage, and torque to meet your specific application requirements.
What are the maximum RPM capabilities?
Depending on the model and configuration (such as the RS-550H 6034), no-load speeds can reach up to 16,000 RPM at 12V, and higher speeds up to 30,000 RPM are possible in specific high-speed variants.
What are the primary applications for the RS-550 series?
These motors are commonly used in power tools, vacuum cleaners, automotive parts, massage devices, and various high-torque DIY projects.
What is the difference between RS-545, 550, and 555 models?
The primary differences lie in the motor body length and internal winding configurations, which result in different torque profiles and power output capacities.
Are these motors suitable for continuous high-load operation?
These PMDC motors are optimized for efficiency; however, heat management should be considered for continuous operation at peak rated power.
