6v 12v 24v Micro Motor Electric Car Motor Micro Dc Motor
Product Description
Product Description

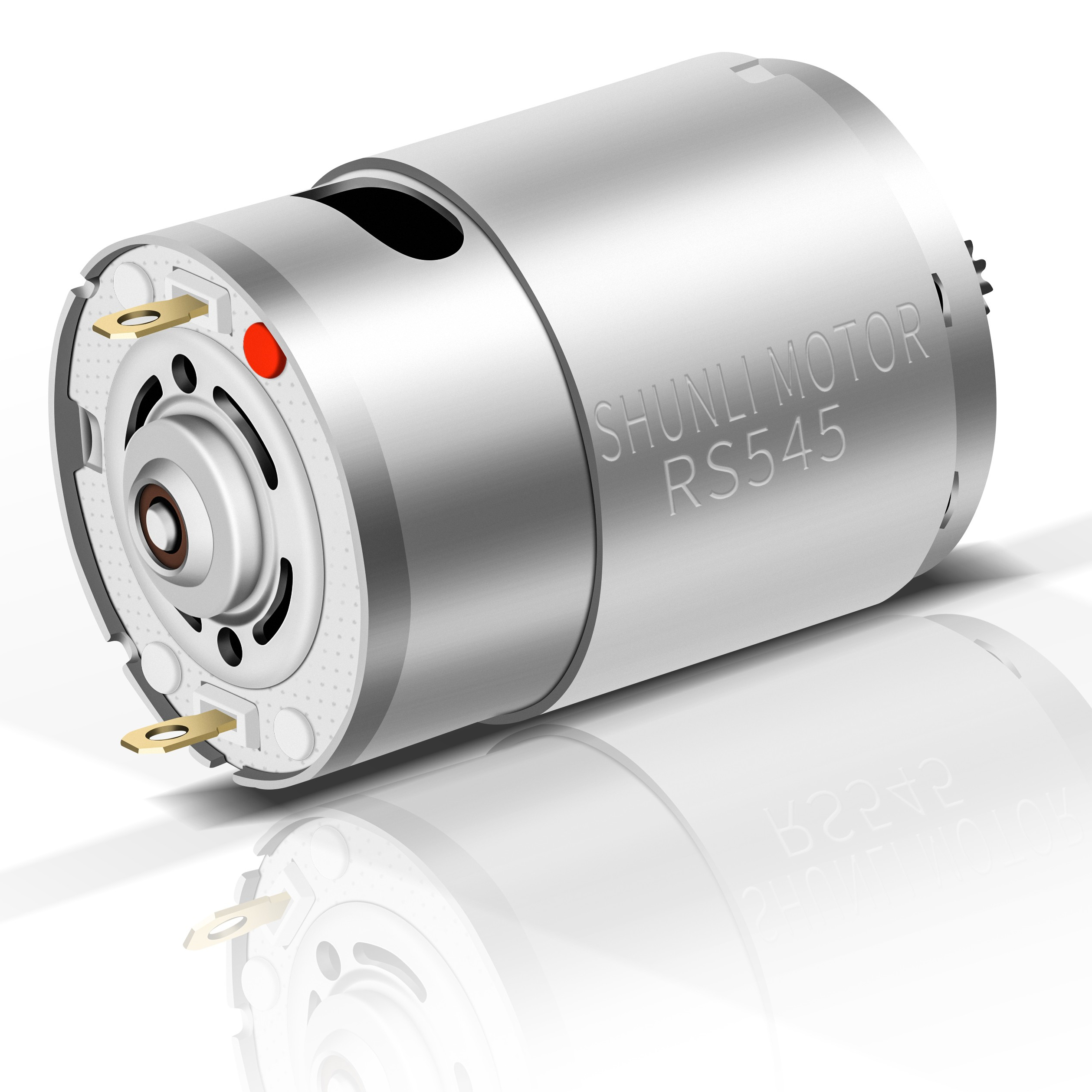

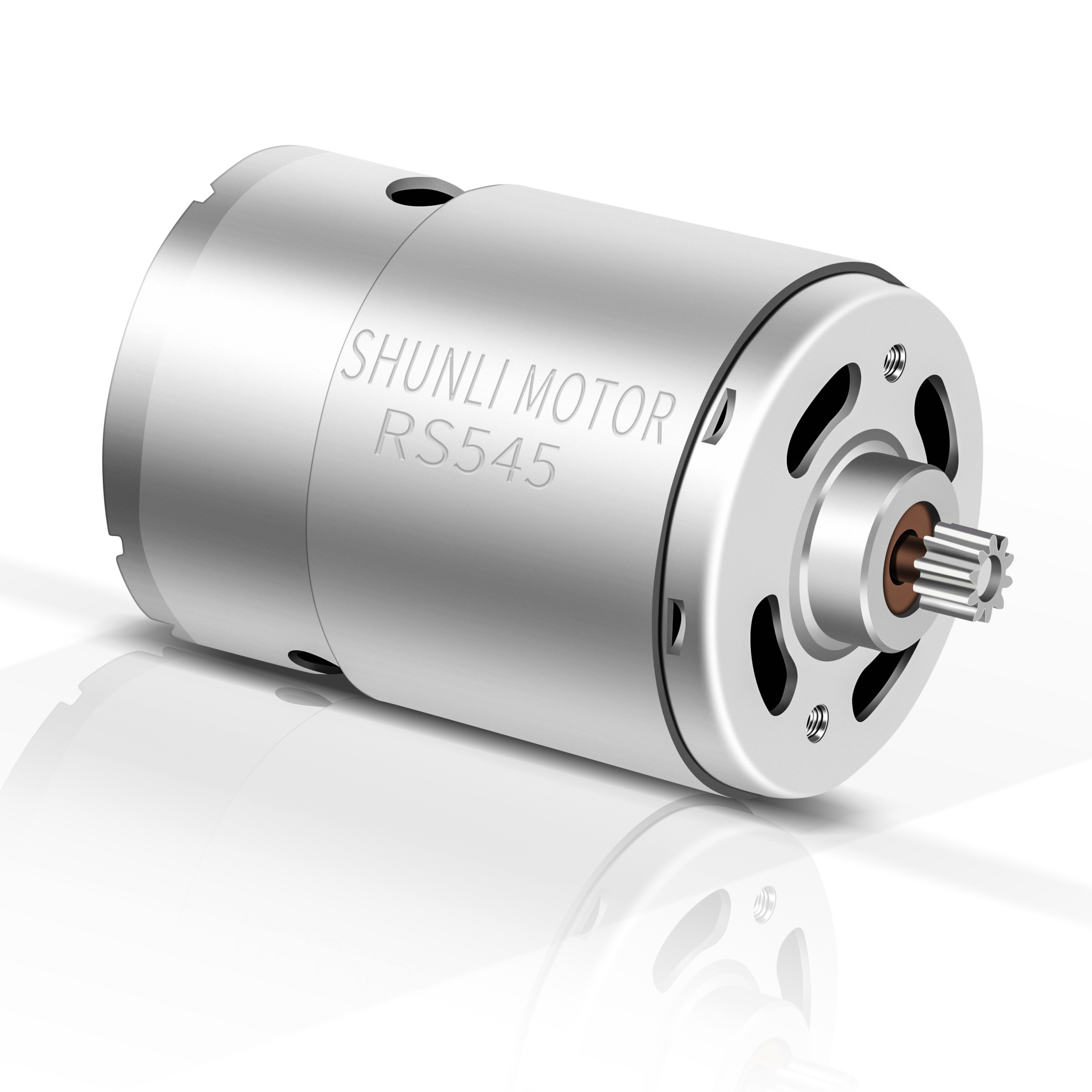

6v 12v 24v micro motor electric car motor micro dc motor
Product Details
Motor Customized Specification, Please contact me.

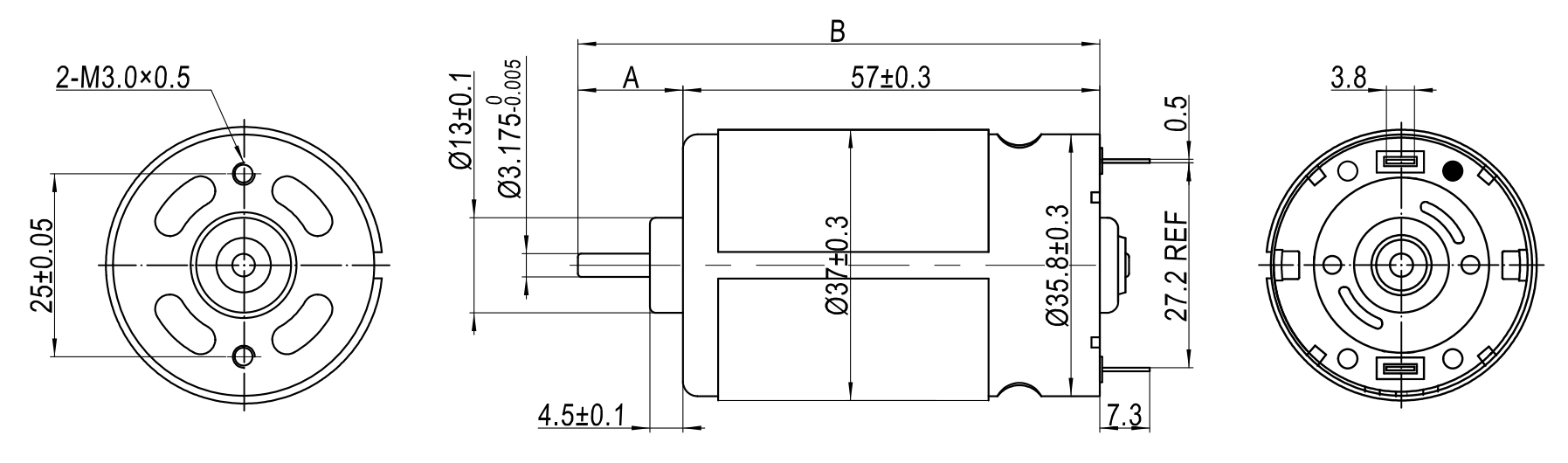

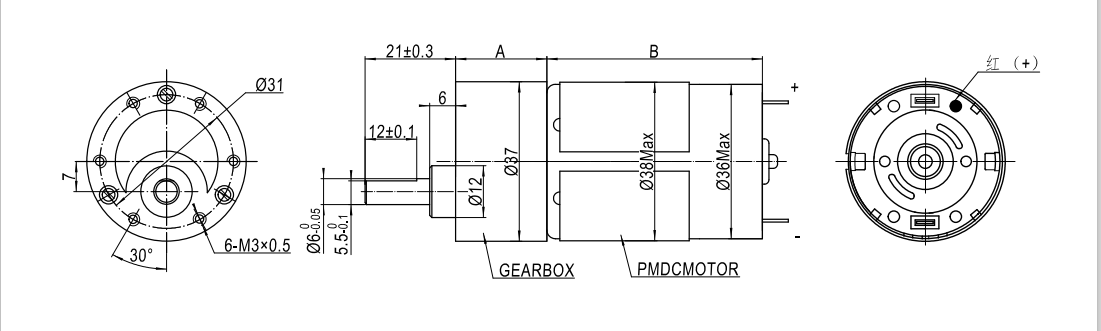

Reference Drawing
------ RS - 545 A
------ RS - 555 A
------ RS - 575 A
The length of shaft can be customized, Please contact me.
Reference Datasheet
| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Rated Voltage(V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed (RPM) | Current (A) | Speed (RPM) | Current (A) | Torque (mN.m / gf.cm) | Power (W) | Current (A) | Torque (mN.m / gf.cm) | ||
| RS-550H | 23128R | 6.0~24.0 | 24VDC | 4500 | 0.1 | 3932 | 0.39 | 25.7/262 | 10.6 | 4.8 | 204/2080 |
| 6034 | 6.0~12.0 | 12VDC | 16000 | 1.12 | 13613 | 4.96 | 25.6/261.3 | 40.36 | 48.89 | 281.4/2870 | |
| RS-555H | 3540 | 6.0~12.0 | 12VDC | 7800 | 0.3 | 6708 | 1.84 | 21.9/223.4 | 15.35 | 11.31 | 156/1591 |
| 23100 | 6.0~24.0 | 24VDC | 7000 | 0.14 | 6004 | 0.77 | 19.2/195.8 | 12.09 | 4.2 | 124.5/1270 | |
Recommend Product
Frequently Asked Questions
Q1: What voltage specifications do these micro DC motors support?
These micro DC motors are engineered to operate across versatile voltage configurations, supportively operating at 6V, 12V, and 24V DC to match diverse project needs.
Q2: Can the output shaft dimensions be customized?
Yes. The length, diameter, and shape of the shaft can be fully customized according to your mechanical and spatial design requirements.
Q3: What are the typical applications for the RS-545, RS-555, and RS-575 series?
These motors are commonly utilized in electric vehicles, smart home automation, high-torque tools, and precision mechanical systems demanding reliable performance.
Q4: How can I request a customized motor design?
You can specify your required operating range, nominal voltage, no-load speed, torque, power targets, and physical dimensions to receive tailored solutions.
Q5: What advantages do PMDC (Permanent Magnet DC) motors offer?
PMDC motors provide high starting torque, excellent efficiency, robust performance, and linear speed-torque curves, making control systems straightforward.
