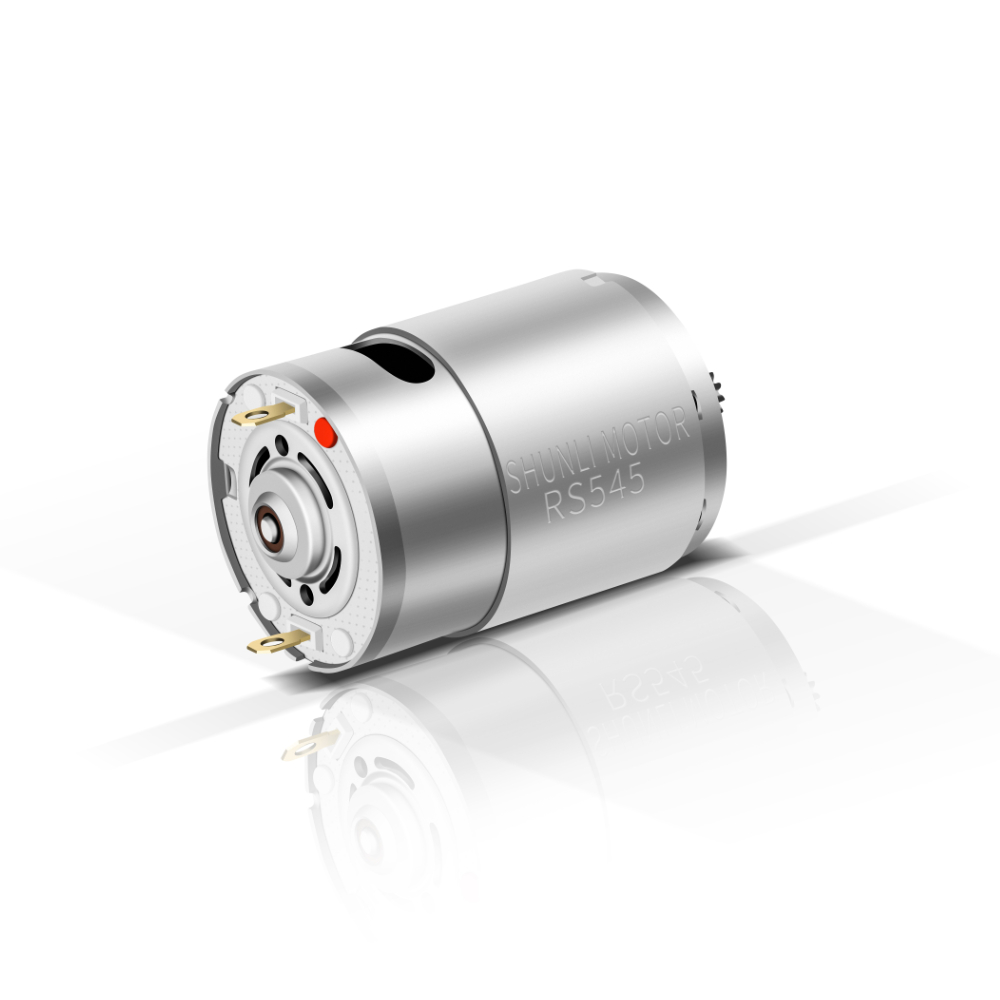

Shunli 6v 12v Dc Gear Motors 24v 15000 Rpm Mini Dc Motor Rs-555 with the Lowest Price
Product Description
Product Description
6v 12v 24v 15000 rpm dc motor rs-555 with the lowest price

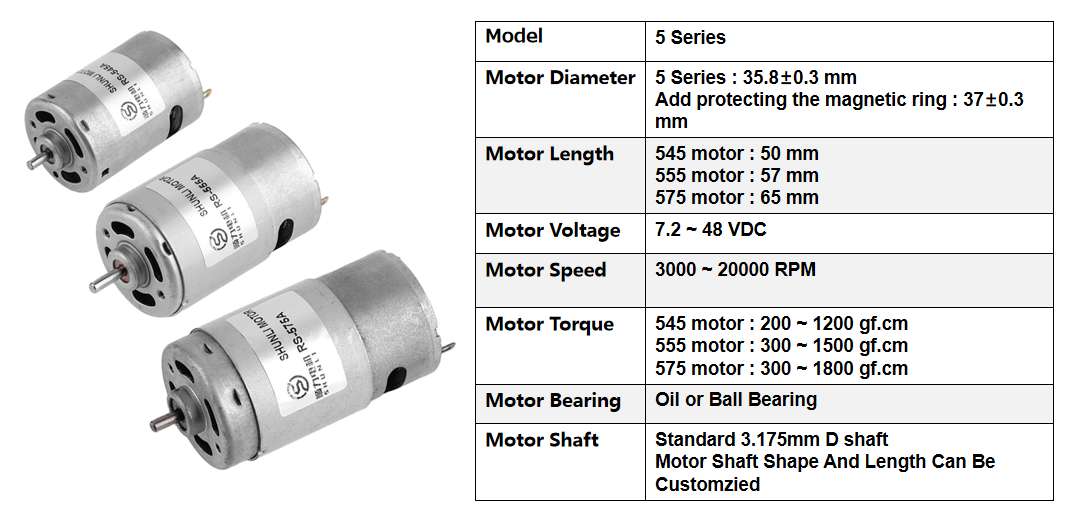

Product Details
Motor Customized Specification, Please contact us for details.
Reference Drawing

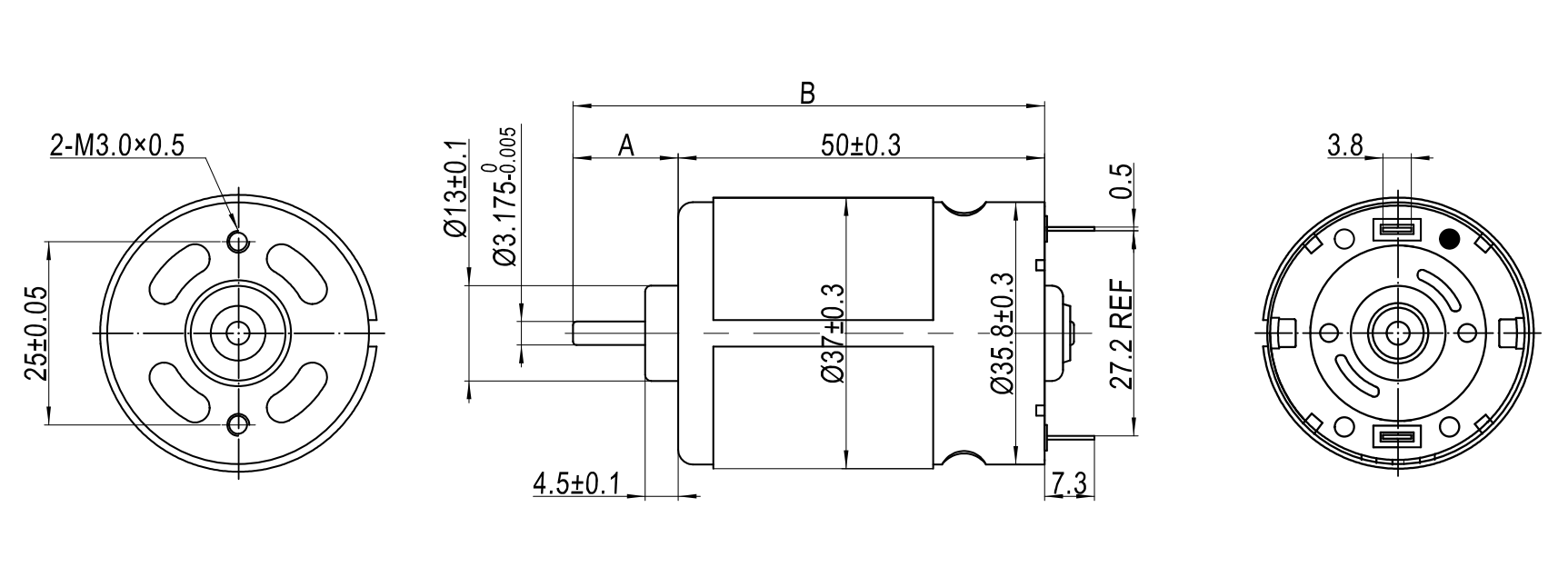

RS - 545 A

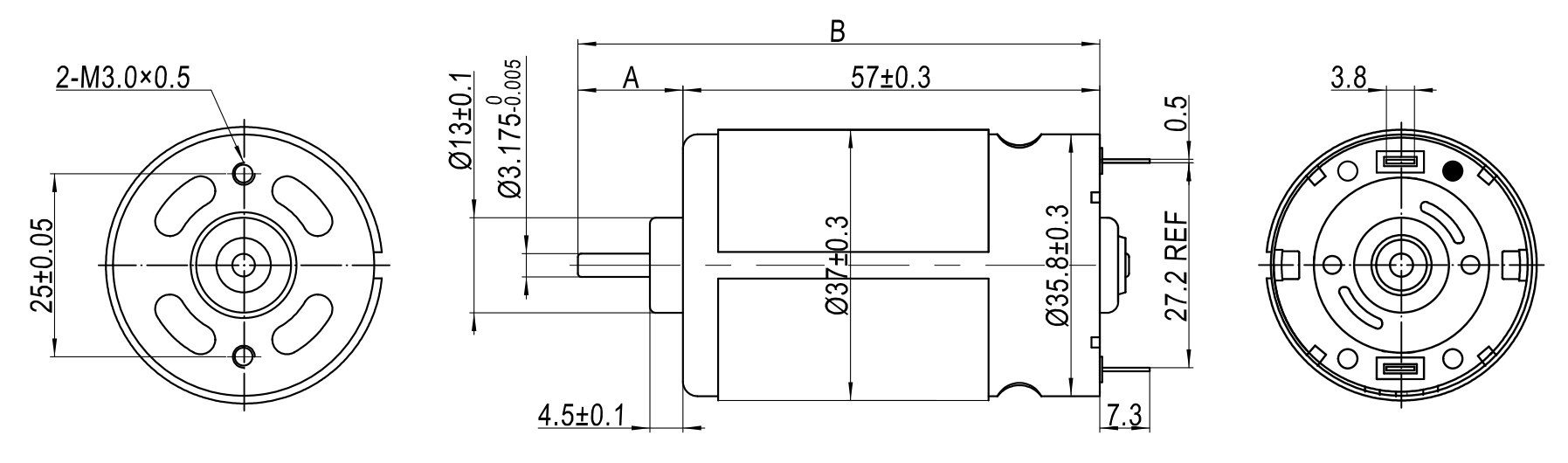

RS - 555 A

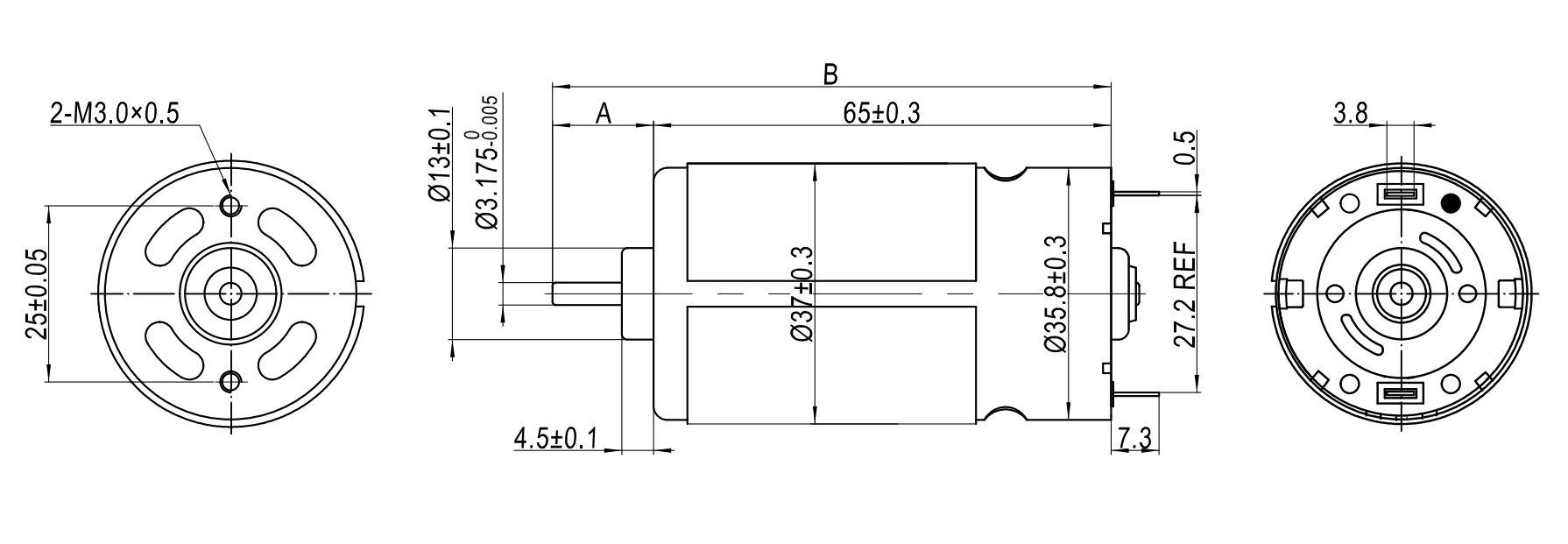

RS - 575 A
The length of shaft can be customized. Please reach out for customized requirements.
Reference Datasheet
| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Rated Voltage(V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| RPM | A | RPM | A | mN.m / gf.cm | W | A | mN.m / gf.cm | ||||
| RS-550H | 23128R | 6.0~24.0 | 24VDC | 4500 | 0.1 | 3932 | 0.39 | 25.7/262 | 10.6 | 4.8 | 204/2080 |
| 6034 | 6.0~12.0 | 12VDC | 16000 | 1.12 | 13613 | 4.96 | 25.6/261.3 | 40.36 | 48.89 | 281.4/2870 | |
| RS-555H | 3540 | 6.0~12.0 | 12VDC | 7800 | 0.3 | 6708 | 1.84 | 21.9/223.4 | 15.35 | 11.31 | 156/1591 |
| 23100 | 6.0~24.0 | 24VDC | 7000 | 0.14 | 6004 | 0.77 | 19.2/195.8 | 12.09 | 4.2 | 124.5/1270 | |
Application
Certifications
Why Choose Us
Production Capability
We are a factory specializing in producing motors for more than 14 years. Our professional R&D team and mature management system ensure a highly reliable and satisfying procurement experience.
Strict Quality Control
To guarantee premium quality, every step of the process—from receiving incoming raw materials to final shipping inspections—is carefully audited. Quality is the absolute foundation of our development.
FAQ
1. Q: Are you a trading company or a manufacturer?
A: We are a factory. We have specialized in micro DC motors and DC gear motors for more than 14 years.
2. Q: What is the payment term for a new customer?
A: We can set up an online assurance order for our new customers, which supports online payment via Master Card, Visa, etc. Customers can also choose to pay via PayPal, T/T, and other convenient methods.
3. Q: I can't find a suitable motor on your website, can you customize the motor for me?
A: Yes, we can customize motors according to our customers' specific technical requirements.
4. Q: Do you have certificates for the motors?
A: Yes, we have CE, FCC, ISO, etc. If you require other specific certifications, we can apply for them on your behalf.
5. Q: How is your Quality Control managed?
A: We employ professional QC inspectors at every stage of the production line. Once the motor is fully assembled, we perform tests using advanced equipment including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Machines, Noise Testers, and more.
