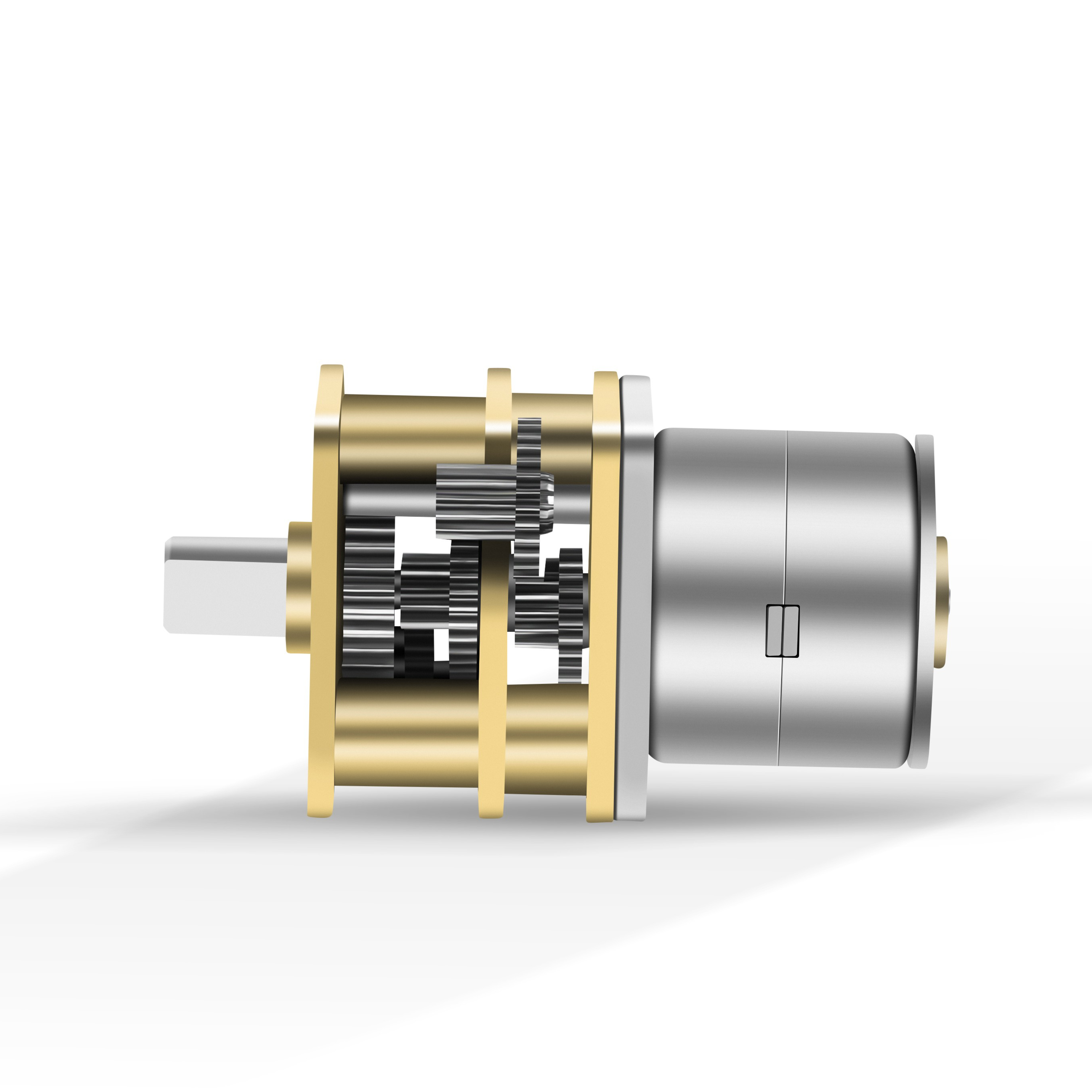

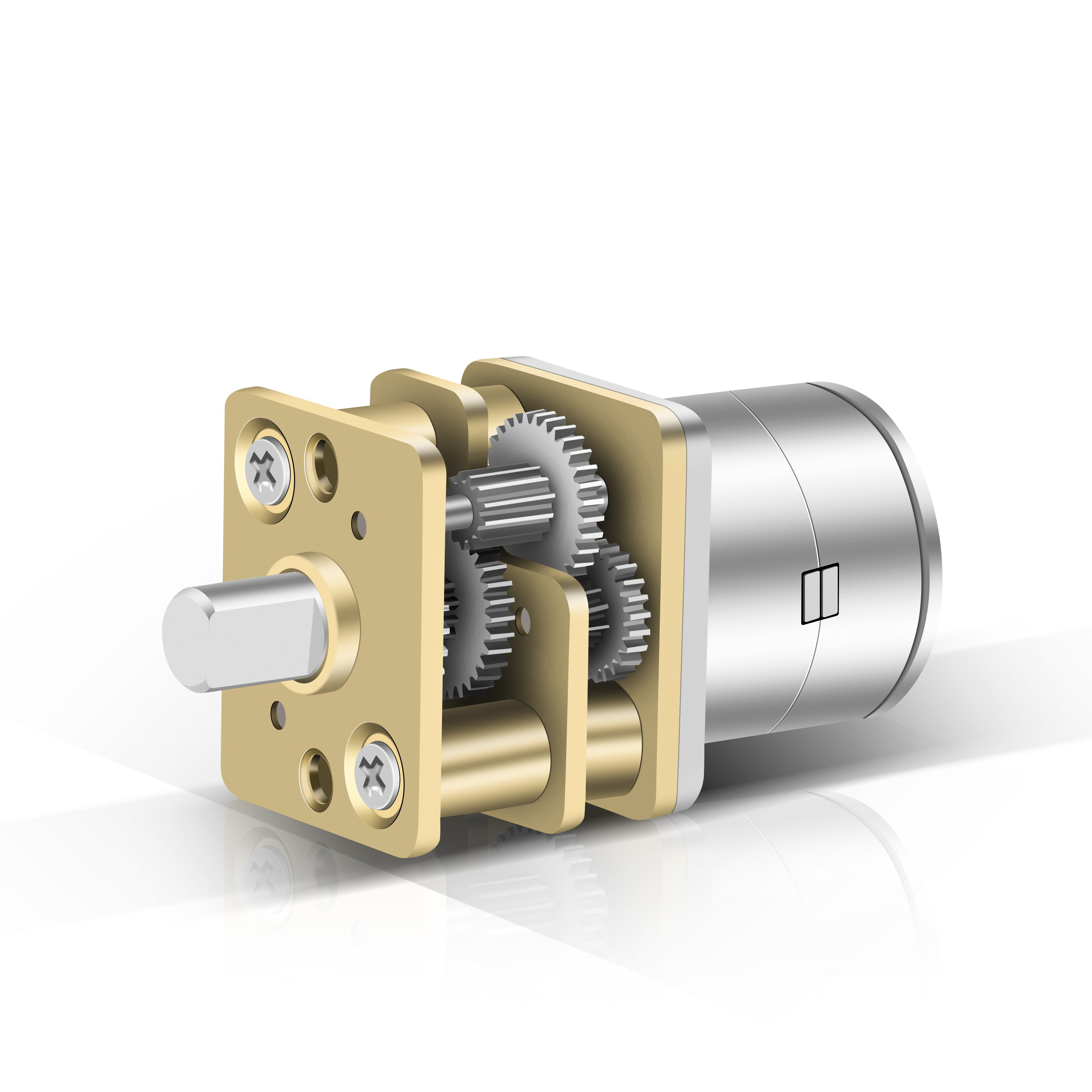

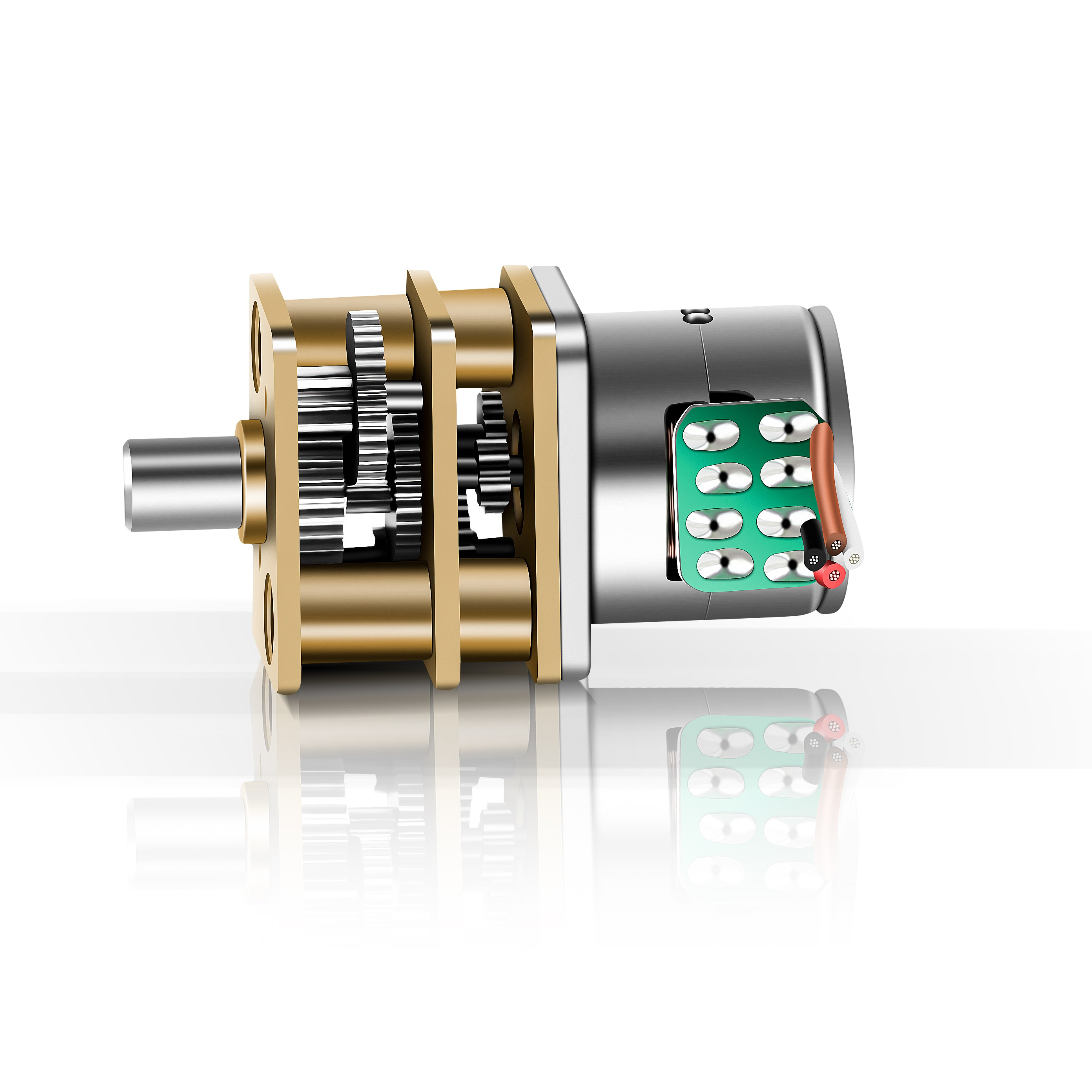

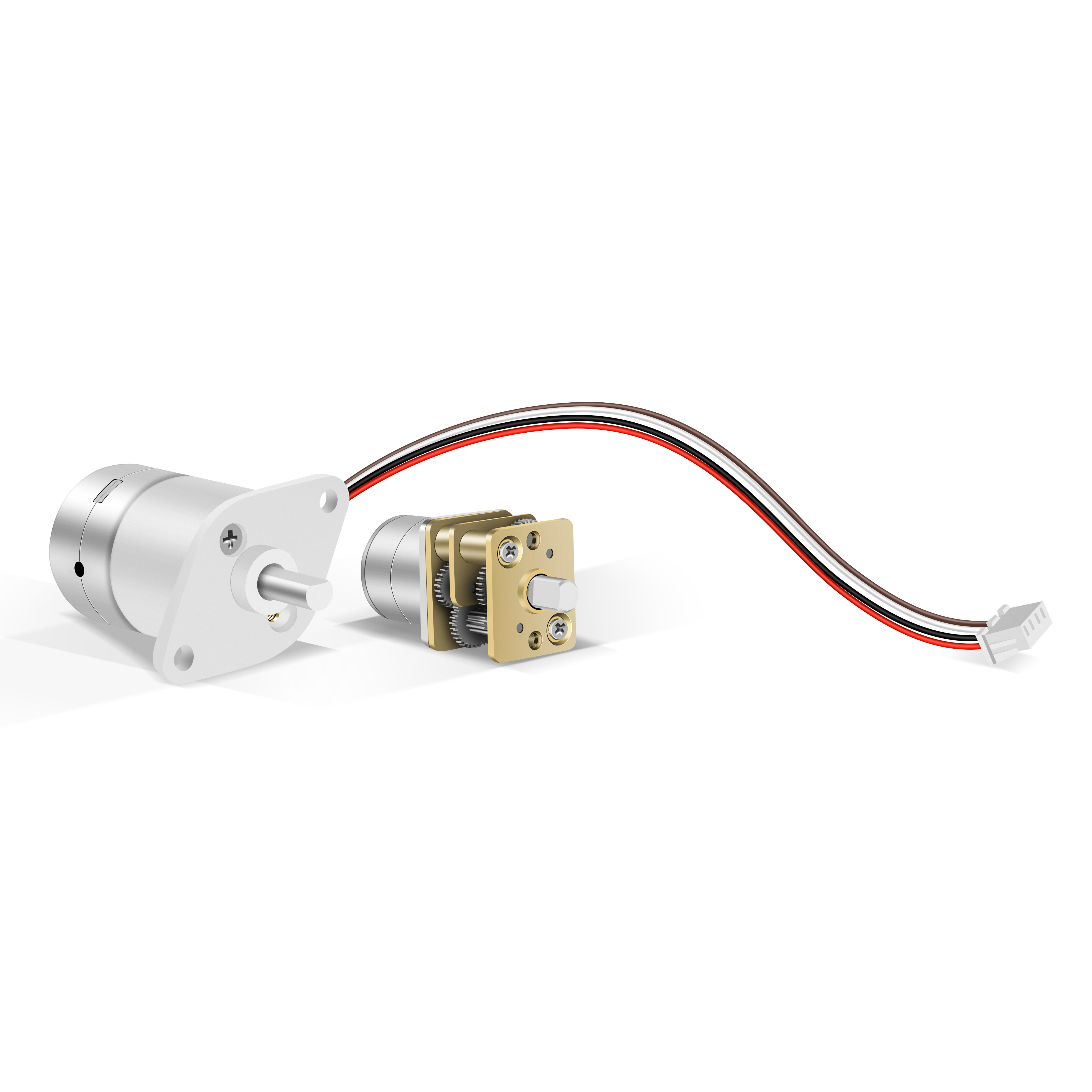

Shunli Dc Door Lock Stepper Gear Motor Double Dual Shafts Gearbox Low Speed Gear Motor Customized 5V for Vehicle Air Conditioner
Product Description
Customized 12mm micro dc gear motor Non captive stepper motor miniature 5v stepper motor of medical equipment

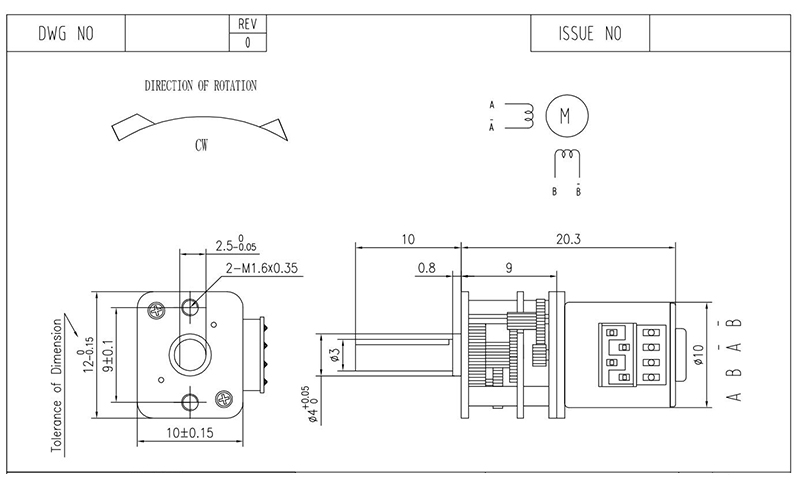

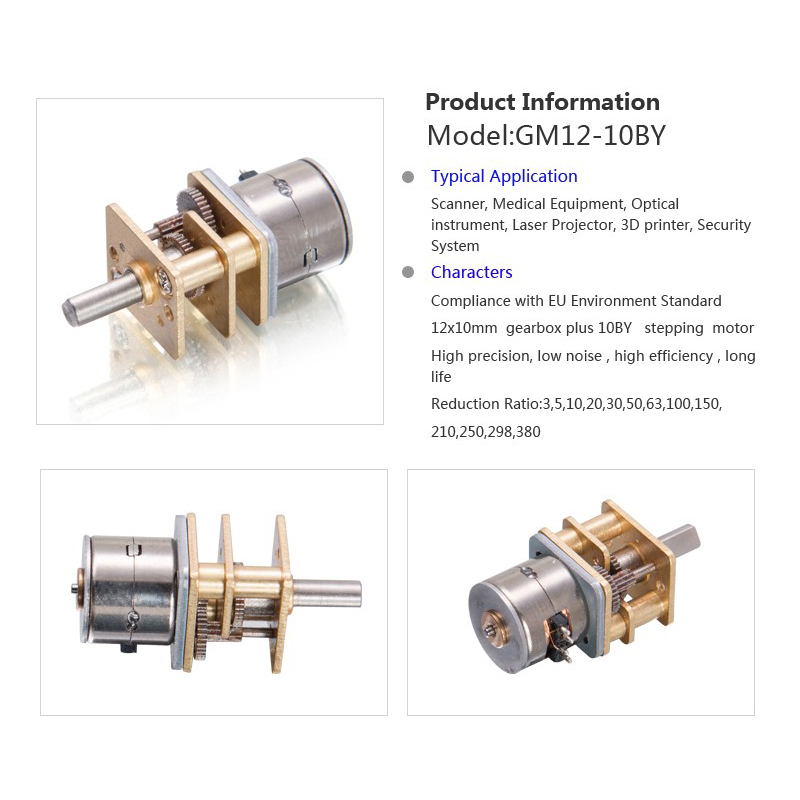

Reference Drawing — GM12-10BY
Gearbox Technical Data
| Number of stages | 1 | 2 | 3 | 4 | 5 |
|---|---|---|---|---|---|
| Ratio | 4K / 4.75K | 16K / 19K / 22.6K | 64K / 74K / 90K / 107K | 256K / 304K / 361K / 429K / 509K | 1024K / 1216K / 1444K / 1715K / 2036K / 2418K |
| Gearbox Length “L”(mm) | 13.3 | 16.8 | 20.3 | 23.8 | 27.3 |
| Max. Rated Torque | 1.0 Kgf.cm | 2.0 Kgf.cm | 4.0 Kgf.cm | 4.0 Kgf.cm | 4.0 Kgf.cm |
| Max. Gear Breaked Torque | 3.5 Kgf.cm | 6.5 Kgf.cm | 12.5 Kgf.cm | 12.5 Kgf.cm | 12.5 Kgf.cm |
| Gearbox Efficiency | 80%~90% | 70%~80% | 60%~70% | 50%~60% | 40%~50% |
| Customized 12mm micro dc gear motor Non captive stepper motor miniature 5v stepper motor of medical equipment | |||||
Gearmotor Technical Data
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed (RPM) | Current (mA) | Speed (RPM) | Current (mA) | Torque (N.m / Kgf.cm) | Current (mA) | Torque (N.m / Kgf.cm) | |||
| GMP22M130-64K | 1 : 64 | 6 VDC | 138 | ≤ 160 | 110 | ≤ 450 | 0.095 / 0.95 | ≤ 1700 | 0.42 / 4.2 |
| GMP22M180-256K | 1 : 256 | 5 VDC | 38 | ≤ 180 | 30 | ≤ 1050 | 0.32 / 3.2 | ≤ 3900 | 1.25 / 12.5 |

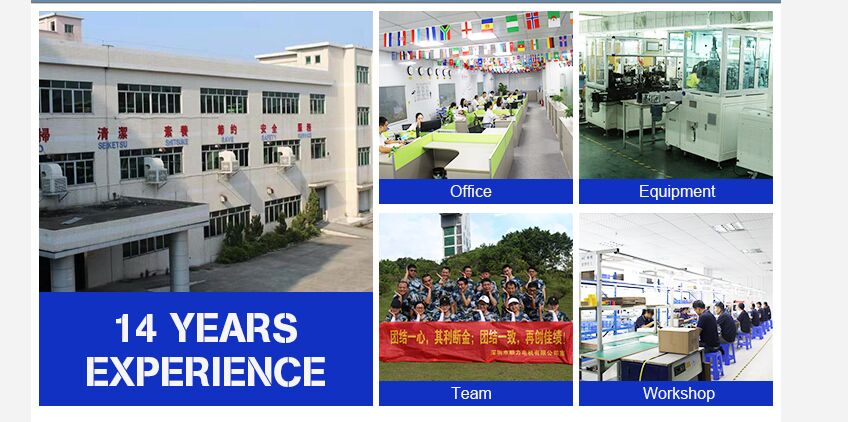

Established in 2005, the factory is a high-tech enterprise integrating the research, development, production, and sales of various kinds of micro DC motors, geared motors, planetary geared motors, shade pole geared motors, and special gearbox motors. The products are widely used in automobiles, communications equipment, smart homes, medical equipment, intelligent security, household appliances, Western kitchen equipment, machinery, electronics, and other high-end transmission structures. These high-quality solutions are exported to more than 50 countries and regions worldwide.
Q1: Are you a trading company or a manufacturer?
A: We are a factory. We specialize in micro DC motors and DC gear motors with more than 14 years of professional experience.
Q2: What payment methods do you accept for new customers?
A: We support various secure online payment methods, including major credit cards (Visa, MasterCard), PayPal, and Telegraphic Transfer (T/T).
Q3: Can you customize a motor if I cannot find a matching model on the website?
A: Yes, we offer extensive customization services. We can design and manufacture custom motors tailored to your specific mechanical and electrical performance requirements.
Q4: What certifications do your micro motors hold?
A: Our products are fully certified with international standards including CE, FCC, and ISO. If you require other specific market certifications, we can apply for them to support your local compliance needs.
Q5: How do you guarantee product quality?
A: We maintain strict quality control at every phase of the assembly process. Our facilities are equipped with professional testing hardware, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Cycle Testers, Temperature Test Chambers, and Noise Level chambers, ensuring reliable performance in every batch.
