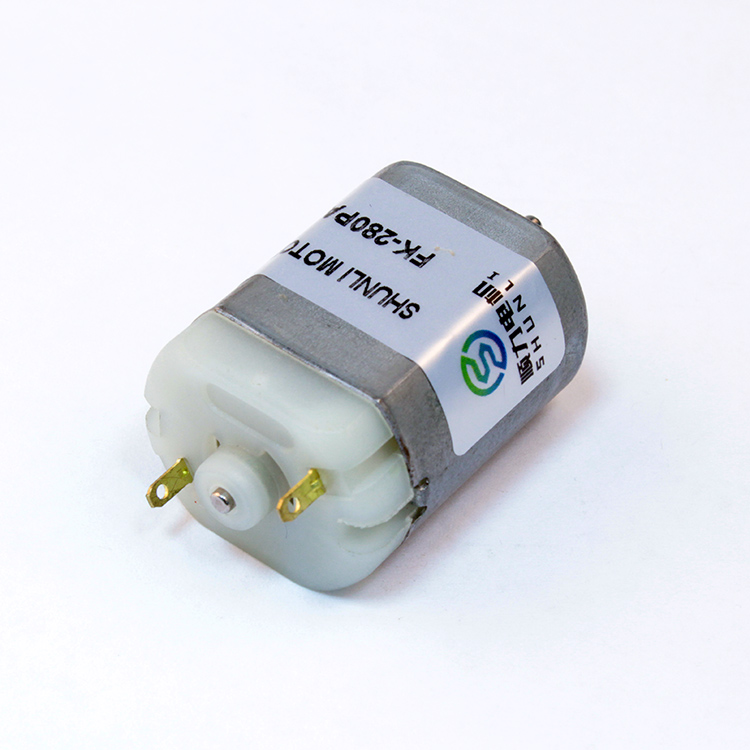

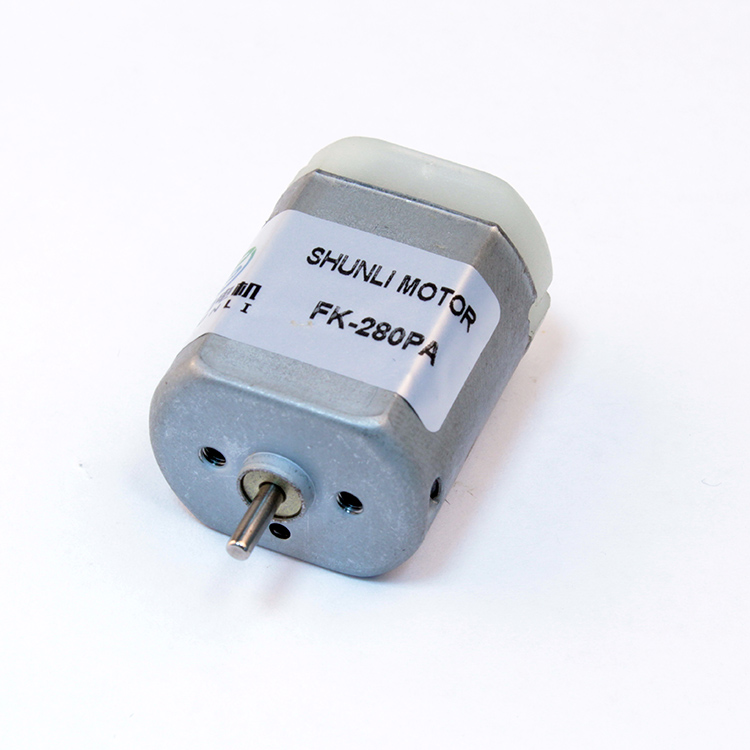

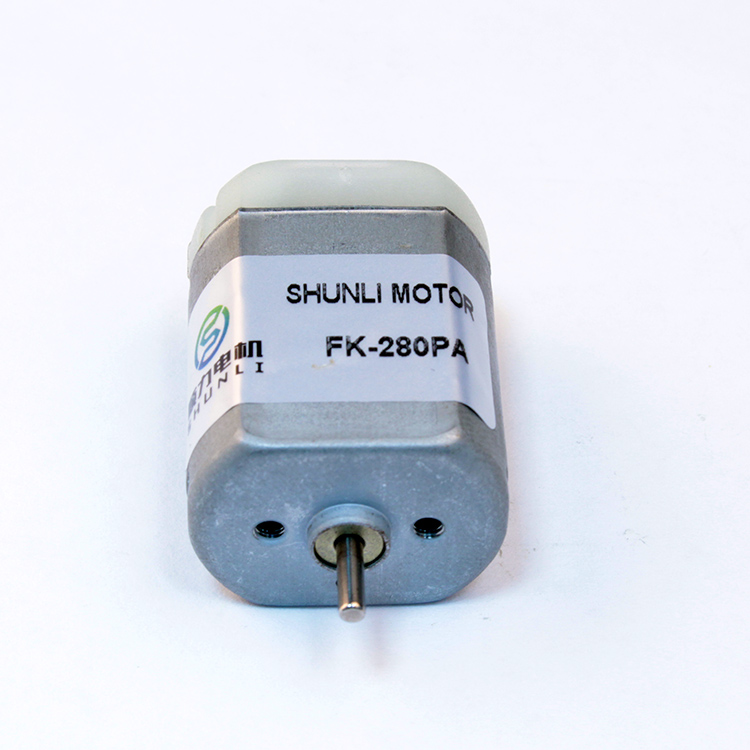

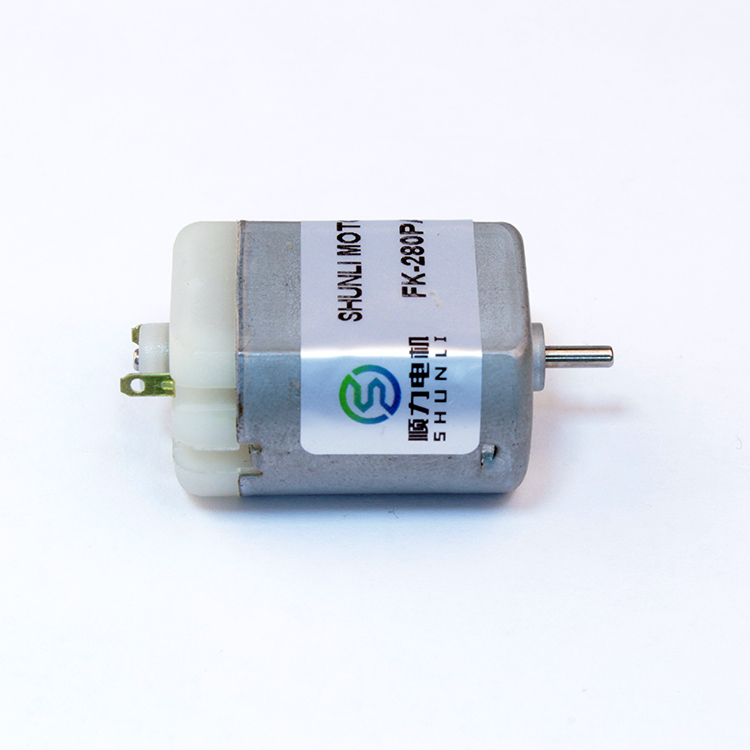

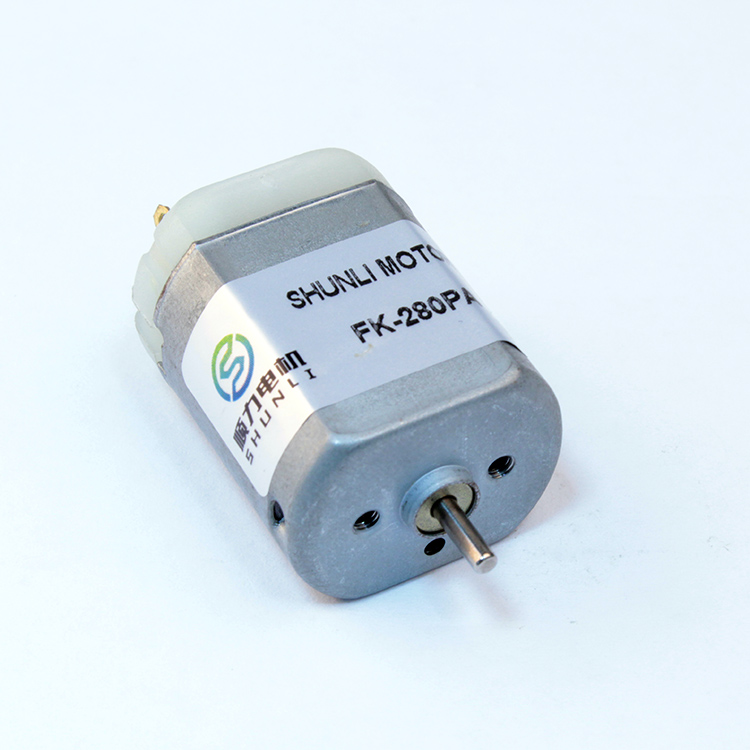

SRC-280 12v Dc Electric Motor Bicycle SRC-280A Micro Dc Motor Shunli Motor Strong or Normal One for Option Permanent Magnet 42g
Product Description
SRC-280 12v DC Electric Motor Bicycle
Product Range
Product Description
| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| PMDC Motor Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| RPM | mA | RPM | mA | mN.m / gf.cm | W | mA | mN.m / gf.cm | ||||
| FK-280SA | 4525 | 1.0~2.0 | 1.2VDC | 8670 | 730 | 6560 | 2240 | 1.74 / 17.7 | 1.3 | 8430 | 9.61 / 98 |
| 16245 | 6.0~12.0 | 12VDC | 7300 | 60 | 6027 | 290 | 3.4 / 34.6 | 2.15 | 1350 | 19.5 / 198 | |
Applications
Certifications
Why Choose Us
Manufacturing Capability
We are a factory specializing in producing motors for more than 14 years. Our professional R&D team, mature management, and experienced engineering sales team will bring you a pleasant purchasing experience.
Strict Quality Control
In order to confirm quality, from the moment we receive materials to the final shipment, we check carefully every step of the way. Quality is the basis of our development.
Our Service Commitments
-
We are a highly credible seller focused on long-term partnerships. -
100% on-time delivery rate guarantees your product arrives on schedule. -
Standard samples will be produced within 2 weeks. Customized samples will be produced within 3 weeks. -
Timely communication, all messages and inquiries will be replied to within 2 hours.
Recommended Products
Frequently Asked Questions
Q1: Are you a trading company or a manufacturer?
A: We are a factory. We have specialized in micro DC motors and DC gear motors for more than 14 years.
Q2: What is the payment term for a new customer?
A: We can establish an Online Assurance Order for our new customers, which allows payment online using MasterCard, Visa, etc. Customers can also choose to pay via PayPal or T/T.
Q3: Can you customize a motor if I cannot find a suitable model on your website?
A: Yes, we can customize a suitable motor configurations and dimensions according to our customers' specific requirements.
Q4: Do you have certificates for your motors?
A: Yes, we have standard certifications including CE, FCC, ISO, etc. If you require other specific certifications, we can apply for them on your behalf.
Q5: How do you control the quality of your products?
A: We have professional quality inspection personnel on every production line process. After the assembly is completed, the motor is tested with specialized machinery, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, Temperature Test Chambers, and Noise Testers.
Q6: What is your typical lead time for producing samples?
A: Standard samples are typically produced within 2 weeks, while customized samples are completed within 3 weeks.
