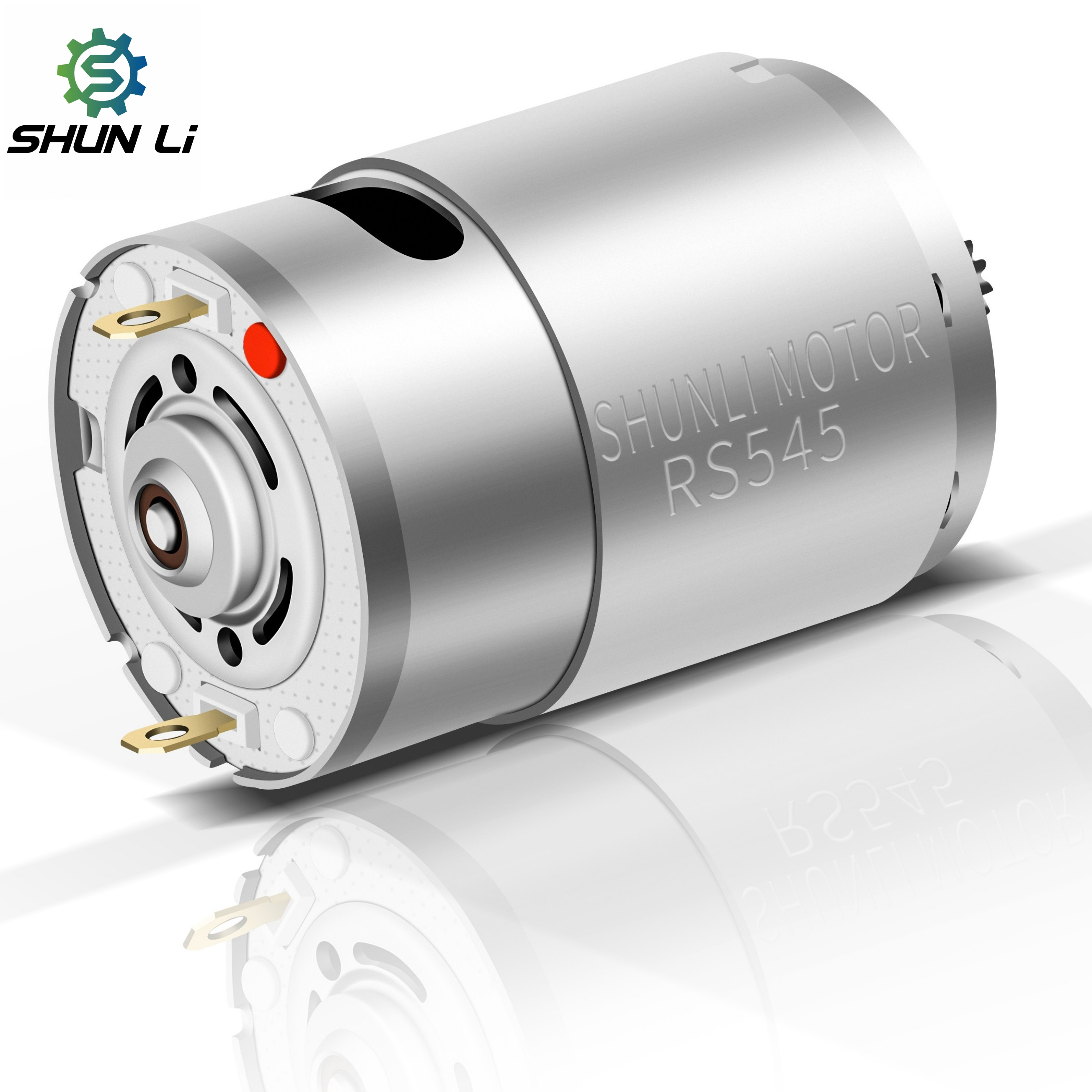

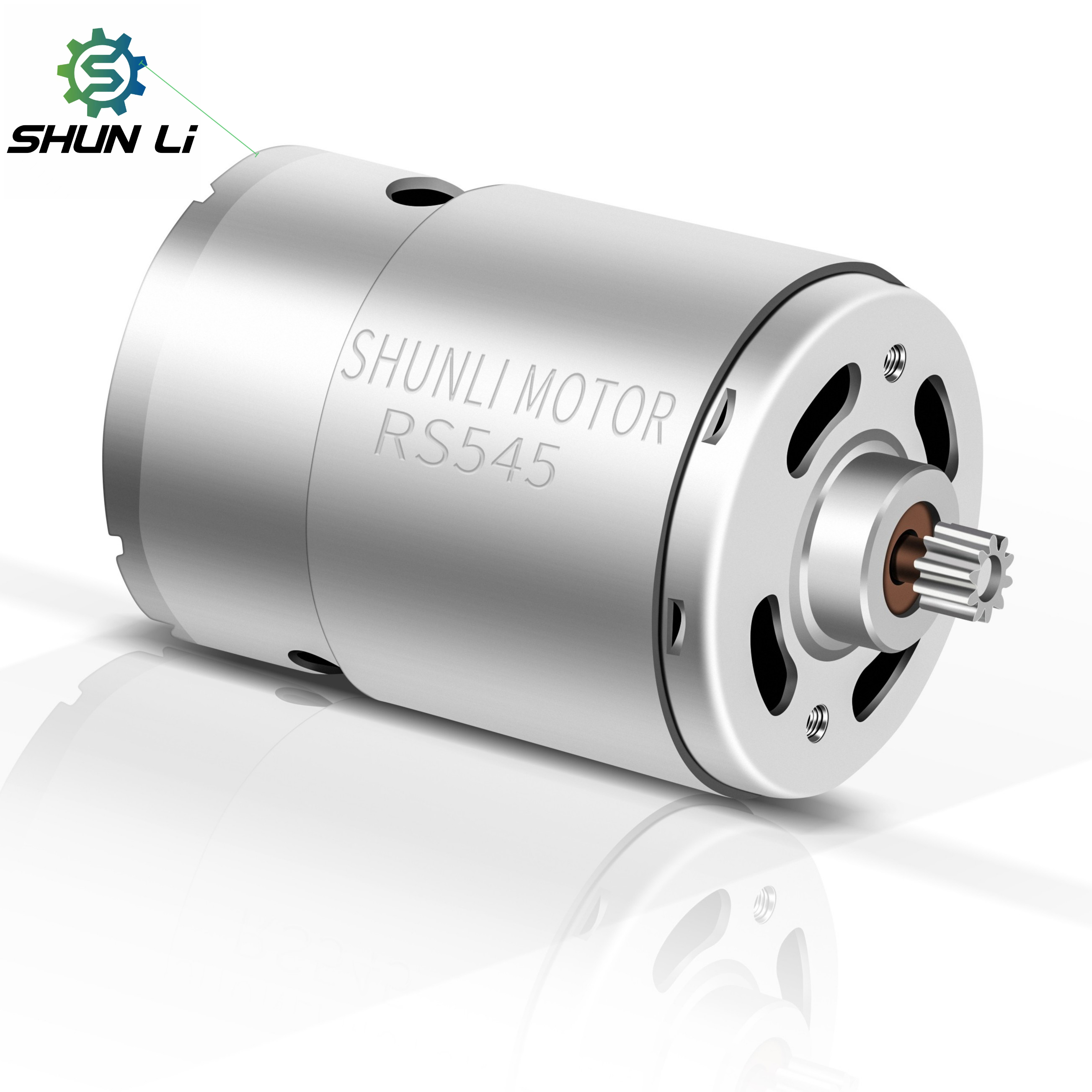

SRS-555 Dc Motor 12v 24v Micro Dc Motor for Toys
Product Description
SRS-555 12v 24v micro dc motor for water pump

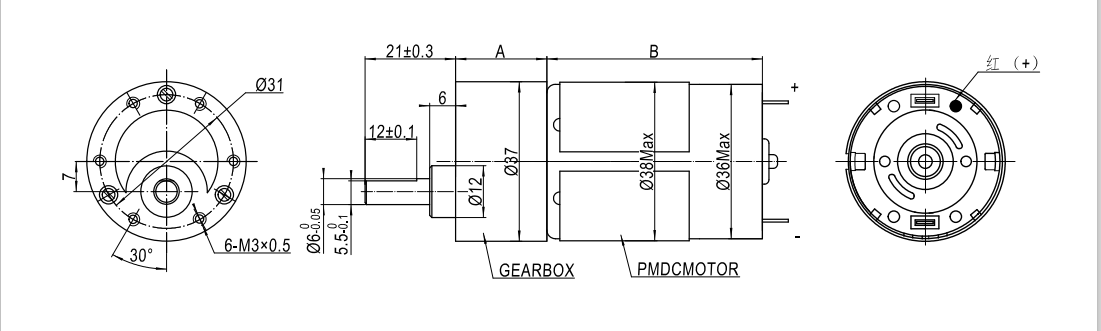

Reference Drawing
RS - 545 A
RS - 555 A
RS - 575 A
Reference Datasheet
| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Rated Voltage(V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| RPM | A | RPM | A | mN.m / gf.cm | W | A | mN.m / gf.cm | ||||
| RS-550H | 23128R | 6.0~24.0 | 24VDC | 4500 | 0.1 | 3932 | 0.39 | 25.7/262 | 10.6 | 4.8 | 204/2080 |
| 6034 | 6.0~12.0 | 12VDC | 16000 | 1.12 | 13613 | 4.96 | 25.6/261.3 | 40.36 | 48.89 | 281.4/2870 | |
| RS-555H | 3540 | 6.0~12.0 | 12VDC | 7800 | 0.3 | 6708 | 1.84 | 21.9/223.4 | 15.35 | 11.31 | 156/1591 |
| 23100 | 6.0~24.0 | 24VDC | 7000 | 0.14 | 6004 | 0.77 | 19.2/195.8 | 12.09 | 4.2 | 124.5/1270 | |

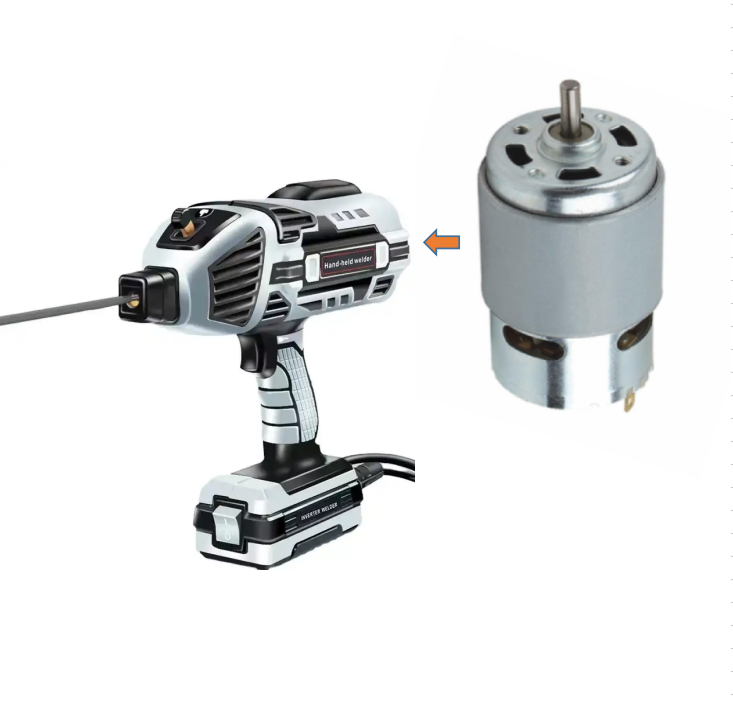

Application
Certifications
Frequently Asked Questions
1. Are you a trading company or a manufacturer?
We are a factory. We specialize in micro DC motors and DC gear motors with over 14 years of professional experience.
2. What is the payment term for a new customer?
We can draw up an online trade assurance order for new customers, supporting online payments via credit card (Visa, MasterCard, etc.). Traditional options like PayPal and T/T are also supported.
3. I cannot find a suitable motor on your website. Can you customize a motor for me?
Yes, we can customize parameters such as voltage, speed, torque, and shaft dimensions according to our customers' specific requirements.
4. Do you have certificates for your motors?
Yes, we hold CE, FCC, ISO, and other relevant industry certifications. If you need other specific regional certificates, we can apply for them for you.
5. How do you handle quality control?
We have dedicated QA staff at every stage of the production line. Every finished motor undergoes comprehensive testing including hardness, 2.5D dimension measurement, salt spray testing, life-cycle testing, temperature resistance, and noise levels.
6. How can we obtain technical datasheets and drawings for verification?
You can contact us detailing your desired specifications (such as speed, voltage, torque, or space limitations), and our engineering team will provide the appropriate documentation.
Looking forward to your feedback!
We are ready to provide technical support and tailored solutions for your projects.
