Manufacturer Worm 755 Dc Motor 6 Volt Gear Small Micro 12v 15000rpm Permanent Magnet Brush Home Appliance
Product Description
Product Description
6v 12v High RPM 9000rpm 15000rpm 750/755 DC Motor

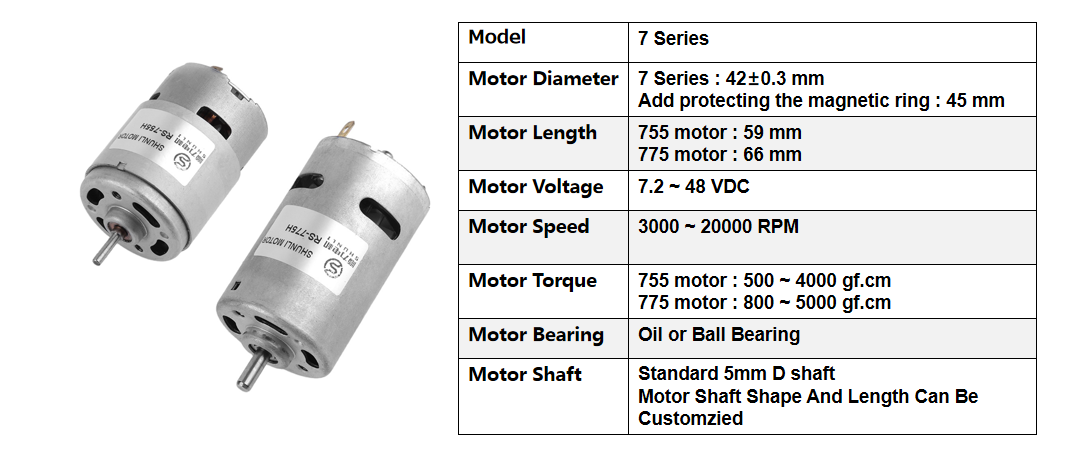

Product Details
Motor Customized Specification, Please contact me.
Reference Drawing

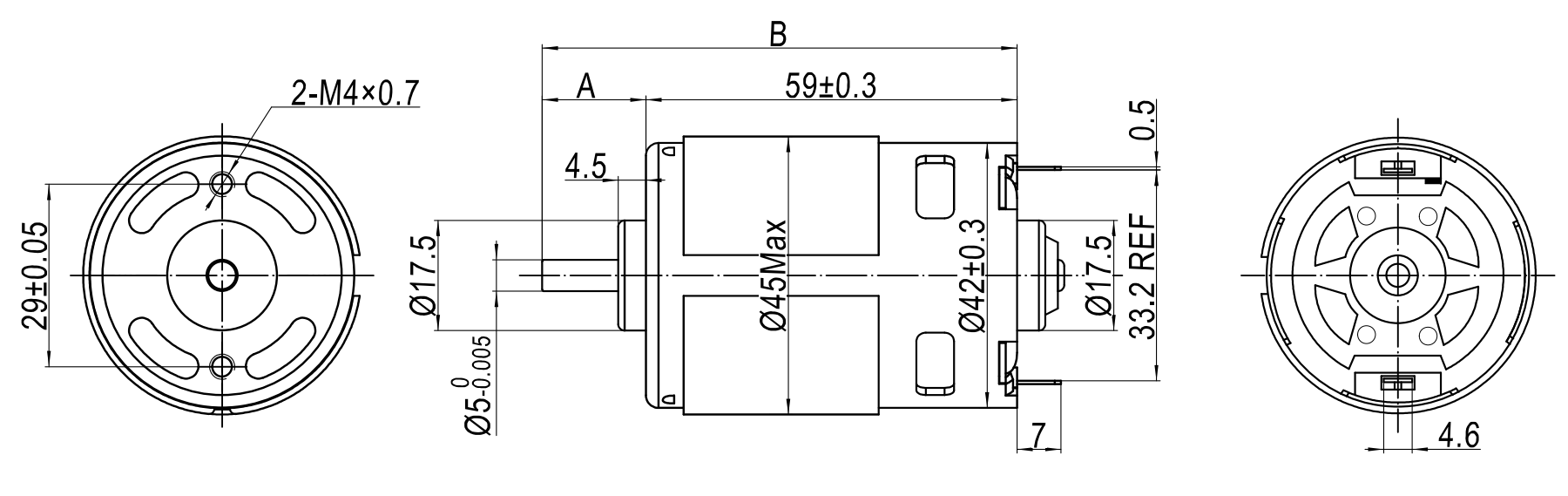

------ RS - 755 H

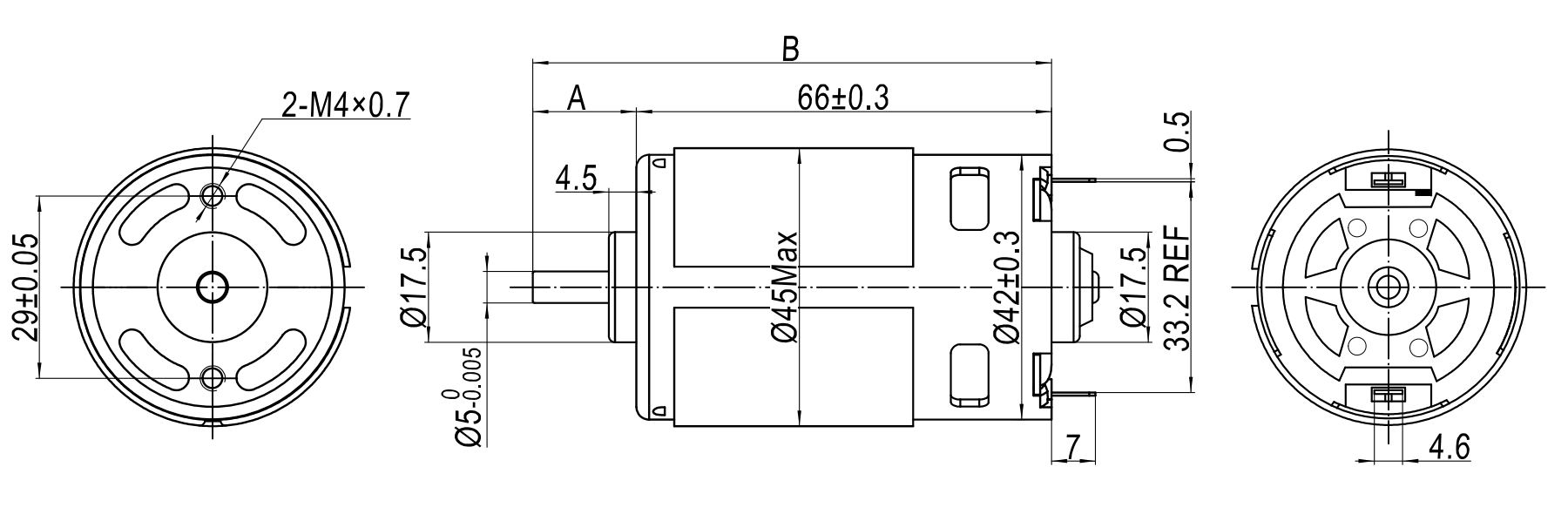

------ RS - 775 H
The length of shaft can be customized, Please contact me.

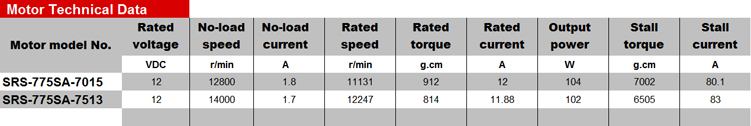

Technical Specifications
| PMDC MOTOR Technical Data | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | Rated Voltage (V) | No-Load | Rated | Stall | |||||||
| Operating Range | Nominal | Speed (RPM) | Current (A) | Speed (RPM) | Current (A) | Torque (mN.m / gf.cm) | Power (W) | Current (A) | Torque (mN.m / gf.cm) | ||
| RS-750H | 7032R | 6.0~12.0 | 12 VDC | 15000 | 1.79 | 12671 | 7.52 | 48.6 / 496 | 66.6 | 55.6 | 393.1 / 4010 |
| 7512R | 3.0~6.0 | 6 VDC | 9500 | 2.26 | 8123 | 9.31 | 45.1 / 460 | 38.2 | 66.34 | 306.9 / 3130 | |
Application
Certifications
Why Choose Us
Our Factory Capabilities
We are a factory specializing in producing motors for more than 14 years. We have three production facilities, supported by a professional R&D team, mature management, and experienced engineering and sales personnel to ensure a seamless purchasing experience.
Strict Quality Control
In order to guarantee premium quality, we inspect all stages carefully, starting from incoming materials to final product shipment. Quality is the very basis of our development.
Our Service Strengths
We are verified gold sellers in possession of high credibility.
100% on-time delivery rate ensures your products arrive timely.
Standard samples are produced within 2 weeks; customized samples are completed within 3 weeks.
Fast response times, all messages are replied to within 2 hours.
Recommended Products
Frequently Asked Questions
Q
Are you a trading company or a manufacturer?
We are a factory. We specialize in micro DC motors and DC gear motors for more than 14 years.
Q
What are the payment terms for a new customer?
We can support online assurance orders, allowing payments via MasterCard, Visa, etc. Customers can also pay with PayPal or TT bank transfers.
Q
Can you customize the motor if I cannot find a suitable one on the website?
Yes, we can customize a suitable motor according to our customers' specific requirements.
Q
Do you hold certifications for your motors?
Yes, we have CE, FCC, ISO, and other relevant standard certificates. If you require other certifications, we can apply for them for you.
Q
How is your quality control structured?
We have professional checking staff monitoring every step of the production line. After finishing production, we perform comprehensive machine tests, including testing hardness, 2.5D imaging, salt spray resistance, product lifetime, temperature thresholds, and noise levels.
Q
Can the motor's shaft length be customized?
Yes, the length of the shaft can be customized according to your design specifications.
