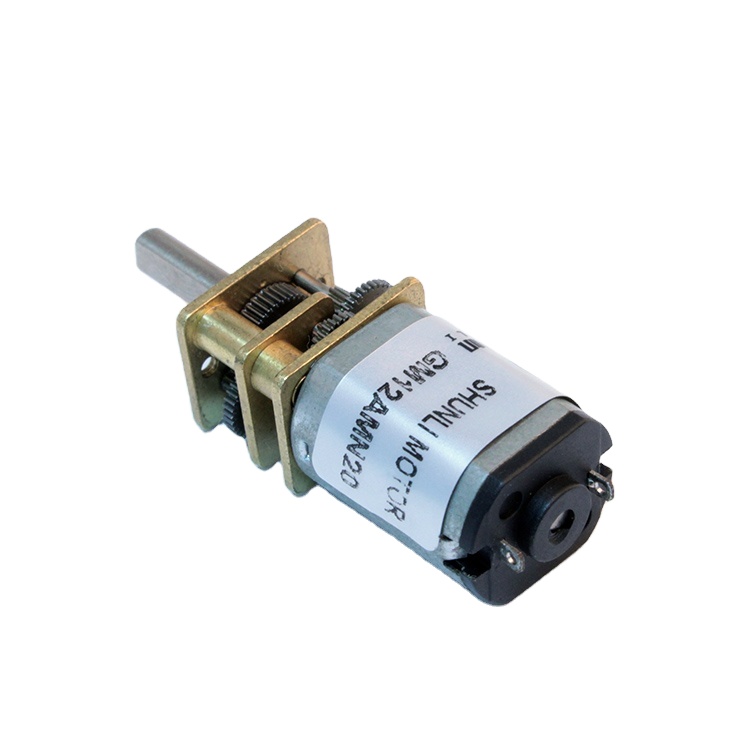

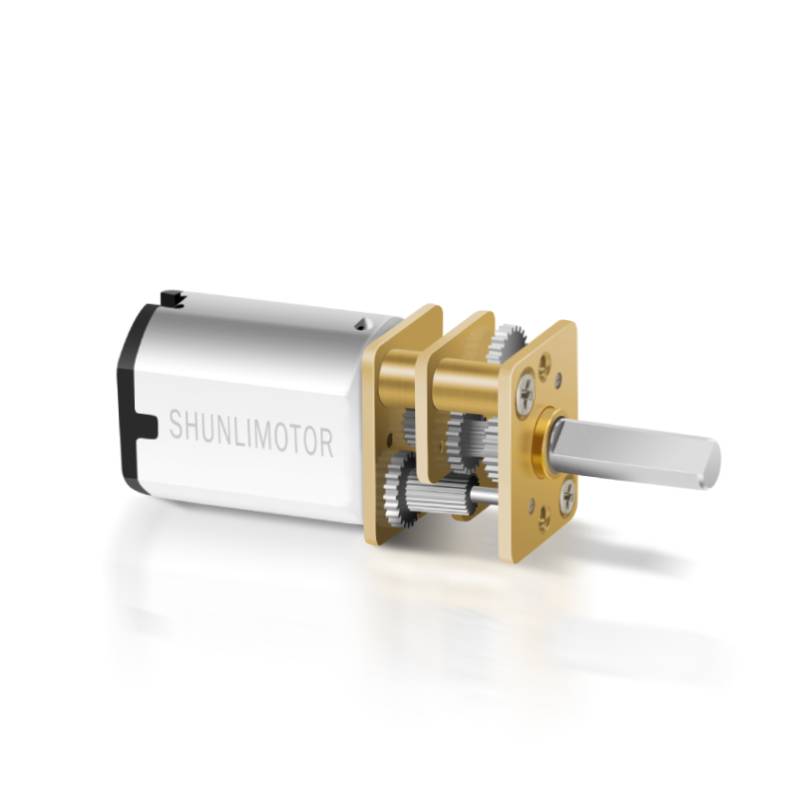

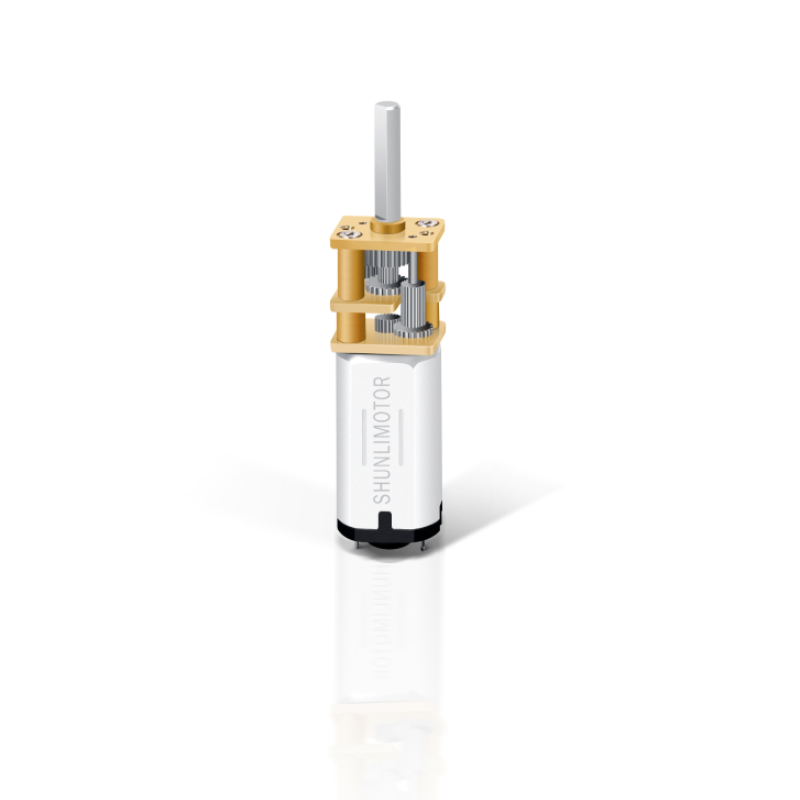

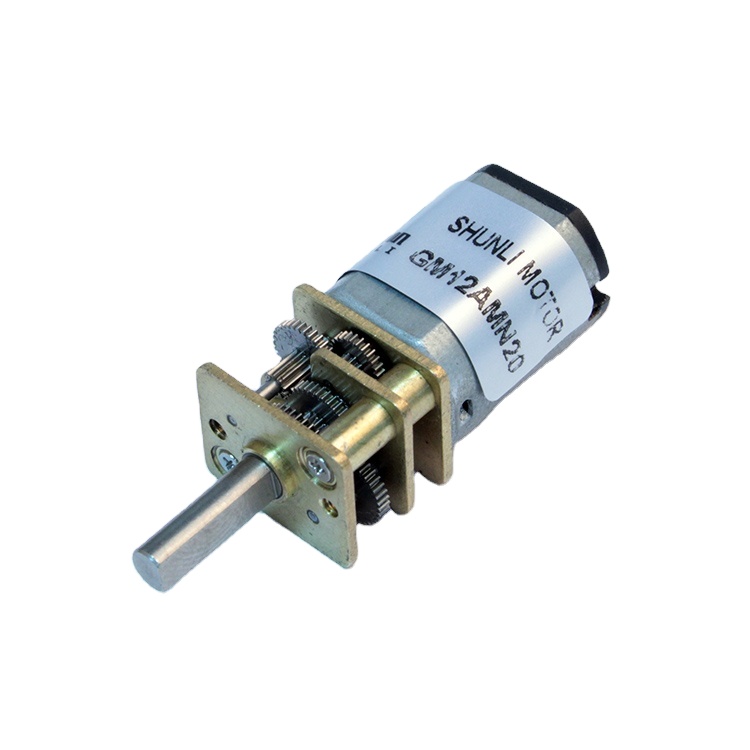

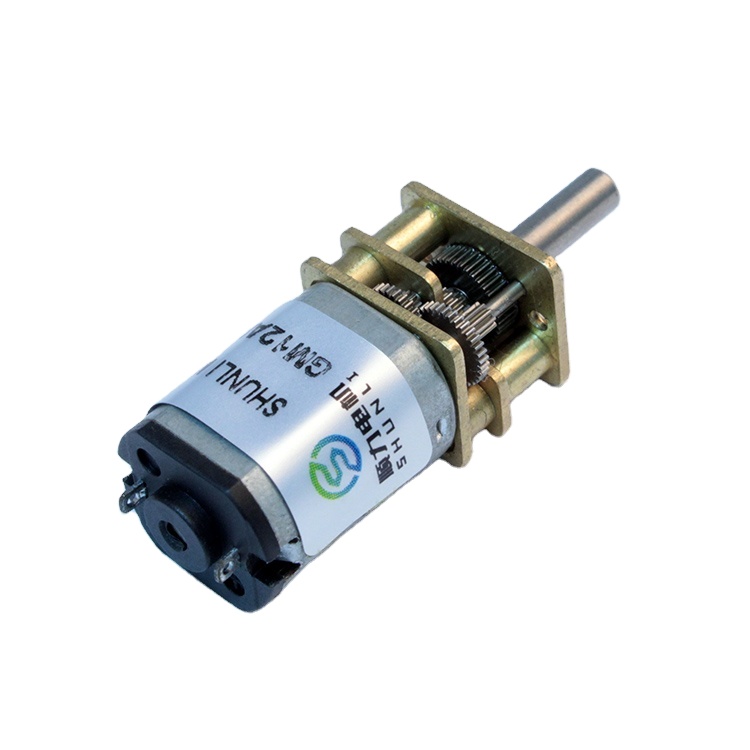

12mm motor with gearbox for smart home appliance 6v 12volt dc small gear motor
Product Description
Product Description
12mm motor with gearbox for smart home appliance 6v 12volt dc small gear motor

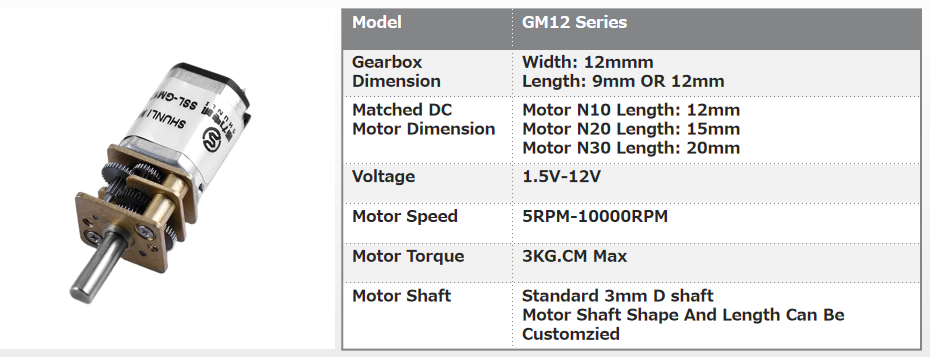

Product Details
Motor Customized Specification Available

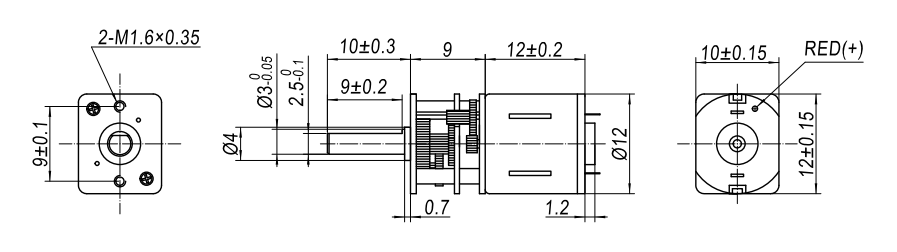

Reference Drawing
GM12AMN10

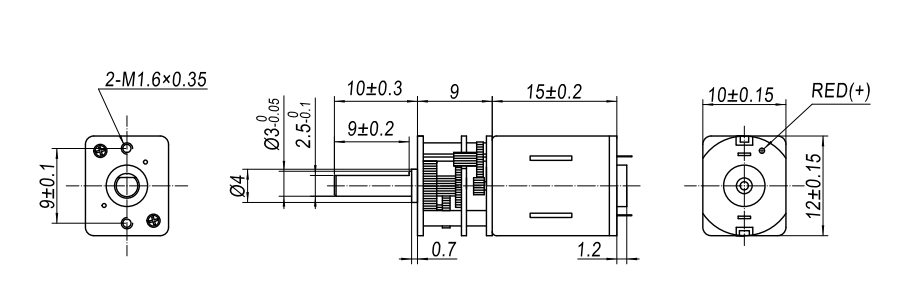

GM12AMN20

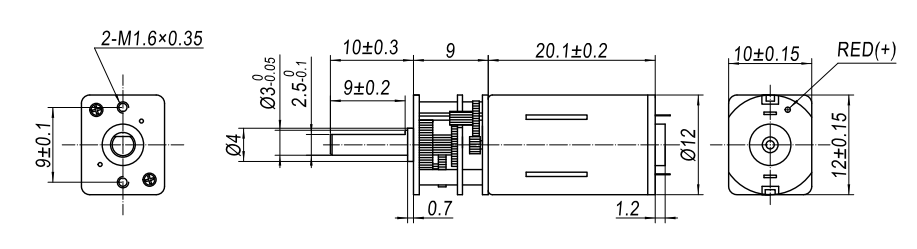

GM12AMN30
Reference Datasheet
| Gearmotor Model | Ratio | Rated Voltage (V) | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed | Current | Speed | Current | Torque | Current | Torque | |||
| RPM | mA | RPM | mA | mN.m / gf.cm | mA | mN.m / gf.cm | |||
| GM12AMN10-298K | 1 : 298 | 4.5~6VDC | 70 | ≤ 80 | 55 | ≤ 285 | 5.5/55 | ≤ 700 | 210/2100 |
| GM12AMN20-150K | 1 : 150 | 92 | ≤ 55 | 80 | ≤ 140 | 2.8/28 | ≤ 700 | 120/1200 | |
| GM12AMN30-10K | 1: 10 | 2500 | ≤ 60 | 2200 | ≤ 195 | 4.0/40 | ≤ 400 | 26/260 | |
Gearbox Technical Data
| Number of stages | 2 | 4 | 5 | 7 |
| Gearbox Length “L”(mm) | 9.0 | 9.0 | 9.0 | 12.1 |
| Ratio | 3K / 5K / 10K | 17K-100K | 110K-380K | 372K-1000K |
| Max. Rated Torque | 200 gf.cm | 600 gf.cm | 1000 gf.cm | 1500 gf.cm |
| Efficiency | 80%~90% | 65%~70% | 55%~60% | 45%~50% |
Application
Certifications
Customer Evaluation
Why Choose Us
1. Professional Manufacturing
We are a factory specialized in producing motors for more than 14 years, with three facilities dedicated to quality production. Our professional R&D team, mature management, and experienced engineers ensure a high-quality experience.
2. Quality Control

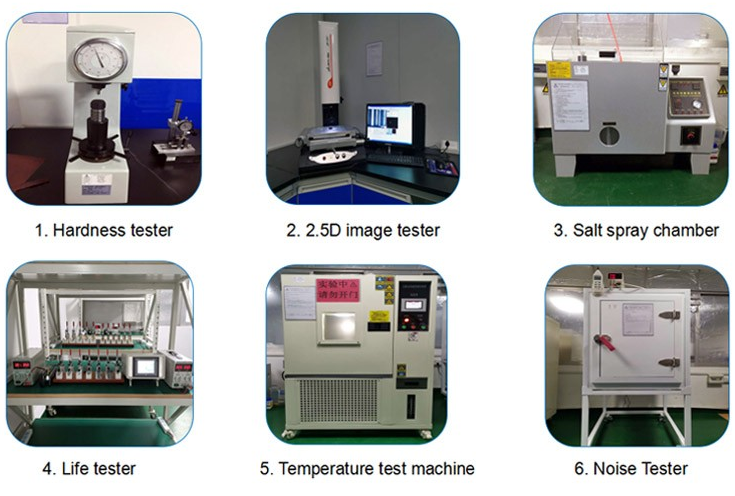

Quality is the basis of our development. Every step, from raw material receipt to final shipment, is carefully checked by professional staff using advanced testing equipment including Hardness Testers, Life Testers, and Noise testers.
Our Services
High Credibility and Verified Seller Status
100% On-time delivery rate to confirm timely arrival
Standard samples within 2 weeks; Customized samples within 3 weeks
Timely reply: Messages responded to within 2 hours
Frequently Asked Questions
1. Q: Are you a trading company or a manufacturer?
A: We are a professional factory specializing in micro DC motors and DC gear motors for more than 14 years.
2. Q: What are the payment terms for new customers?
A: We offer multiple secure payment options including Online Assurance Orders (Credit Cards/Visa), PayPal, and T/T.
3. Q: Can you customize a motor for my specific requirements?
A: Yes, we provide full customization services to design a motor that fits your unique application needs.
4. Q: What certifications do your motors carry?
A: Our products are certified with CE, FCC, ISO, and other relevant industry standards. We can apply for additional certifications if required.
5. Q: How do you handle quality control?
A: We utilize professional checking staff at every production stage and use advanced machines such as Salt Spray Chambers, Life Testers, and Temperature Test Machines to ensure reliability.
6. Q: How long does it take for sample production?
A: Standard samples are typically produced within 2 weeks, while highly customized samples may take up to 3 weeks.
