Shunli Custom 3.7 Volt 12v Dc Reduction Gear Micro Motor of High Torque Diameter of the Reduction Gear Box 13mm for Gas Valve
Product Description
6 Volt 12V DC Reduction Gear Micro Motor of High Torque

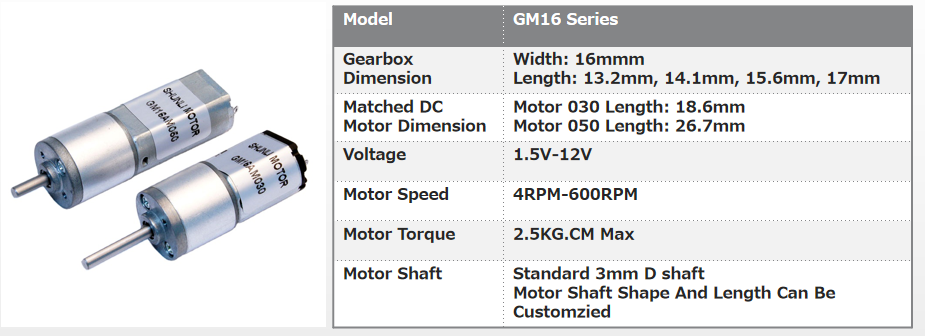

⚙️ Product Details

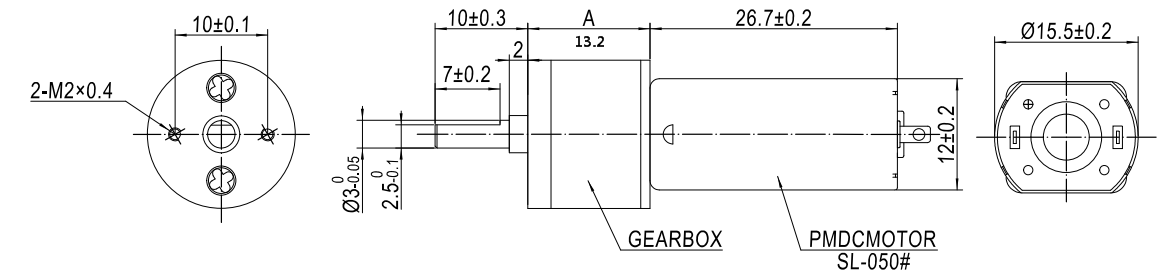

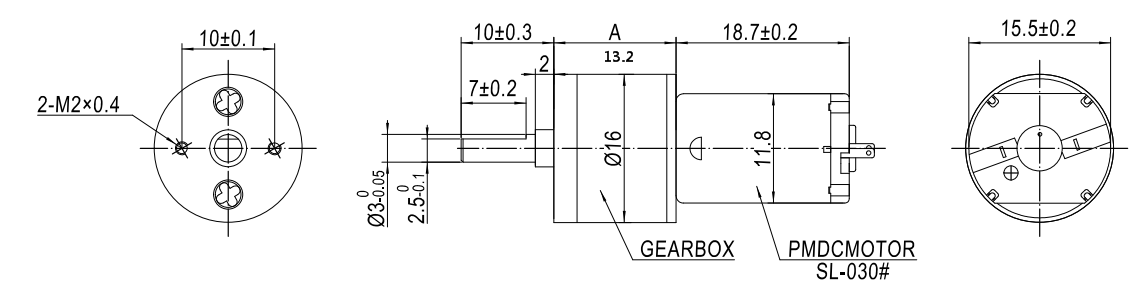

Drawing: GM16AM030 / GM16AM050
| Gearmotor Model | Ratio | Rated Voltage | No-Load | Rated | Stall | ||||
|---|---|---|---|---|---|---|---|---|---|
| Speed (RPM) | Current (mA) | Speed (RPM) | Current (mA) | Torque (Kgf.cm) | Current (mA) | Torque (Kgf.cm) | |||
| GMP16M030-100K | 1:100 | 3.7 VDC | 100 | ≤ 80 | 72 | ≤ 300 | 0.3 | ≤ 700 | 1.1 |
| GMP16M050-300K | 1:300 | 3.7 VDC | 50 | ≤ 200 | 40 | ≤ 650 | 1.0 | ≤ 3000 | 5.5 |
| Number of stages | 4 | 5 | 6 | 7 |
|---|---|---|---|---|
| Ratio | 25K - 42K | 70K - 119K | 143K - 285K | 300K - 800K |
| Length "A" (mm) | 13.2 | 14.1 | 15.6 | 17.0 |
| Max. Rated Torque | 0.6 Kgf.cm | 1.0 Kgf.cm | 1.5 Kgf.cm | 2.0 Kgf.cm |
| Gearbox Efficiency | 60%~70% | 55%~60% | 50%~55% | 45%~50% |
Professional Factory
Over 14 years specializing in motor production with a professional R&D team and mature management for a reliable experience.
Over 14 years specializing in motor production with a professional R&D team and mature management for a reliable experience.
Strict Quality Control
Every step from material receipt to shipment is carefully checked. Quality is the foundation of our development.
Every step from material receipt to shipment is carefully checked. Quality is the foundation of our development.
High credibility and professional industry standing.
100% On-time delivery rate to ensure your products arrive timely.
Fast sampling: standard samples within 2 weeks, customized within 3 weeks.
Timely reply: All messages will be responded to within 2 hours.
1. Are you a trading company or a manufacturer?
We are a factory specializing in micro DC motors and DC gear motors for more than 14 years.
2. What are the payment terms for new customers?
We support online assurance orders (Master Card, Visa, etc.), PayPal, and TT transfers.
3. Can you customize a motor if I can't find a suitable one on the website?
Yes, we can customize a suitable motor according to your specific technical requirements.
4. Do your motors have official certifications?
Yes, we have CE, FCC, ISO, and other relevant certificates. We can also apply for specific certificates if required.
5. How do you handle Quality Control?
We use professional checking staff at every production stage and utilize advanced testing equipment like Hardness Testers, 2.5D Image Testers, and Salt Spray Chambers.
6. How long does it take for sample production?
Standard samples are typically produced within 2 weeks, while customized samples take approximately 3 weeks.
