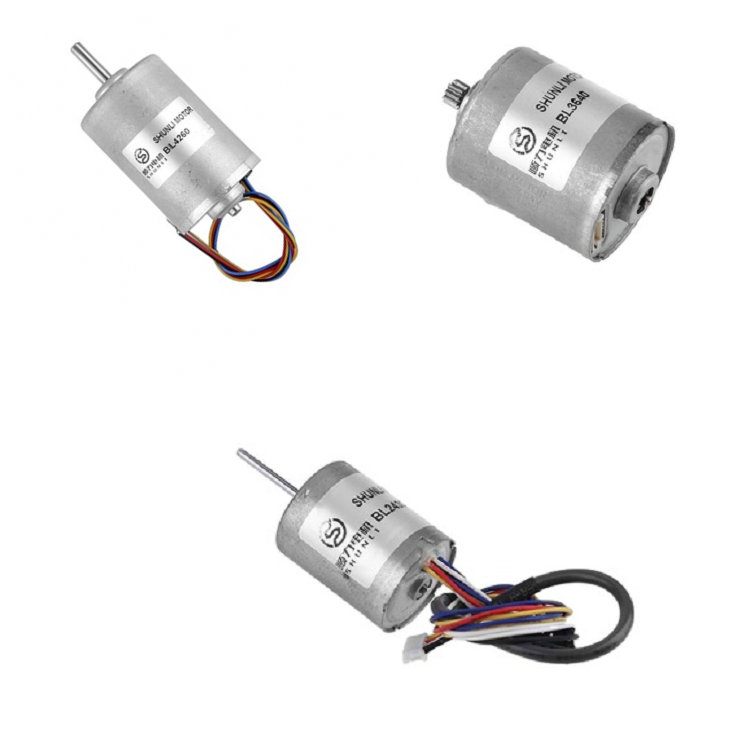

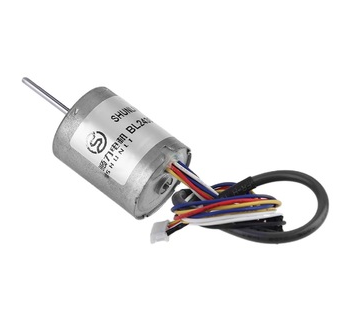

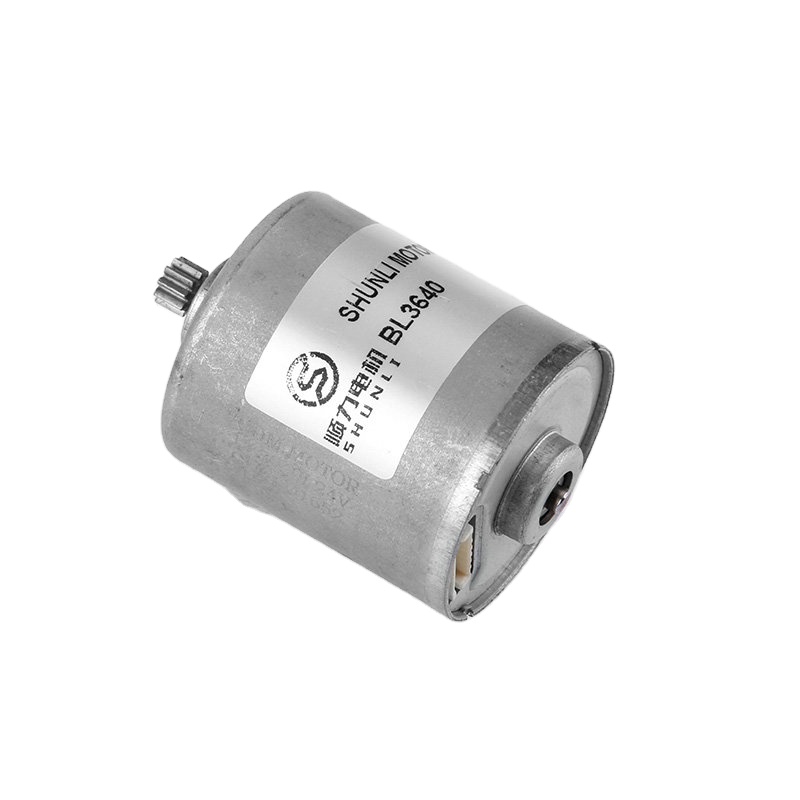

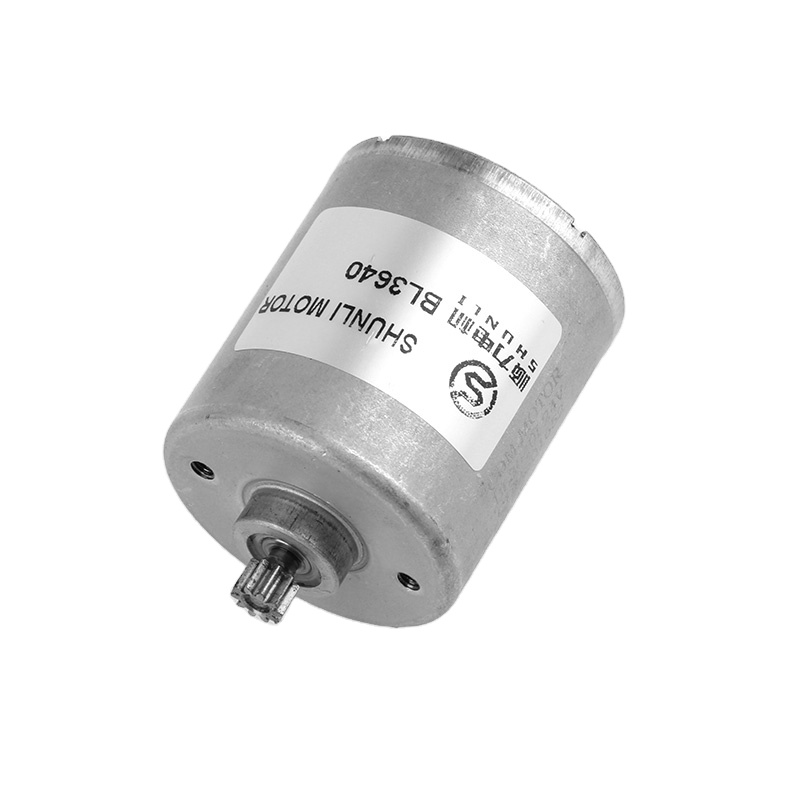

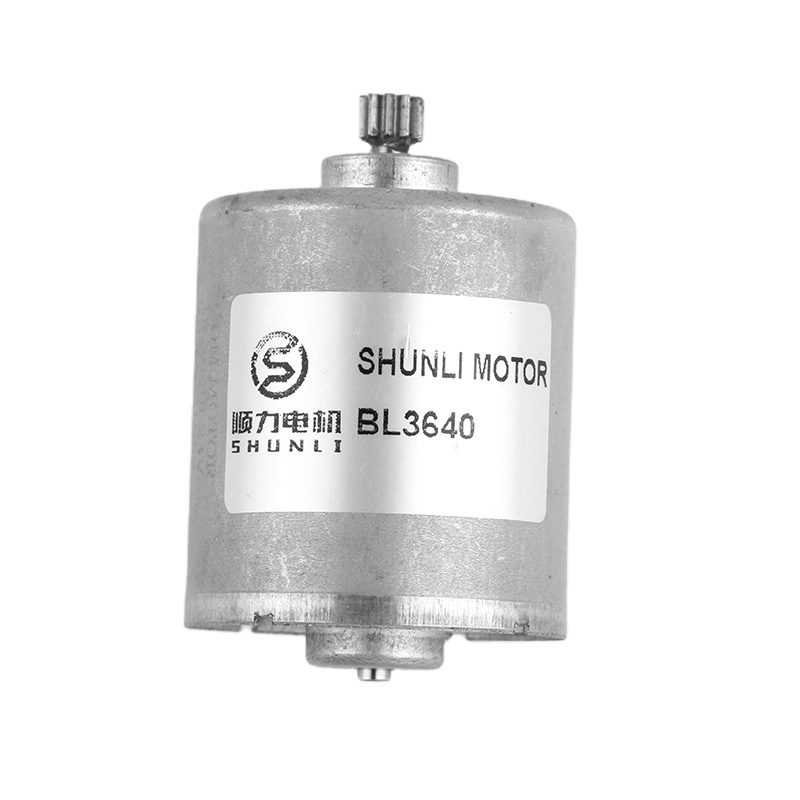

12V 18V 24V High Speed 20000 RPM 30000RPM 40000 RPM 100 G.CM 150 G.CM 36 mm Brushless DC Motor for Fan
Product Description
12V 18V 24V High Speed 20000 RPM 30000RPM 40000 RPM 100 G.CM 150 G.CM 36 mm Brushless DC Motor for Fan
Product Details
Reference Technical Specification
BLDC MOTOR Terminations
| PIN NO. | PIN Arrangement |
|---|---|
| 1 | VCC |
| 2 | FG |
| 3 | CW/CCW |
| 4 | GND |
| 5 | PWM |
Reference Datasheet
Product Features & Details
Frequently Asked Questions
What are the available voltage configurations for this brushless DC motor?
This high-speed brushless DC motor is designed to operate efficiently across multiple voltage ranges, including 12V, 18V, and 24V configurations, depending on your application requirements.
What is the maximum rated speed (RPM) of the motor?
The motor is engineered for high-velocity operations, capable of achieving rated speeds of 20,000 RPM, 30,000 RPM, and up to 40,000 RPM.
What control capabilities do the standard PIN terminations support?
The 5-PIN configuration supports direct control signals including VCC, FG (Feedback signal), CW/CCW (Rotation direction control), GND, and PWM (Pulse Width Modulation speed control).
Is this brushless motor suitable for high-performance cooling fans?
Yes, with a compact 36 mm diameter size, high rotational speeds, and stable torque output (100 to 150 G.CM), this brushless DC motor is highly optimized for advanced fan cooling systems.
Can I customize the mechanical and electrical specifications of the motor?
Absolutely. We offer customization options for the shaft dimensions, voltage ratings, speed curves, and mounting styles to fit your precise industrial design requirements.
