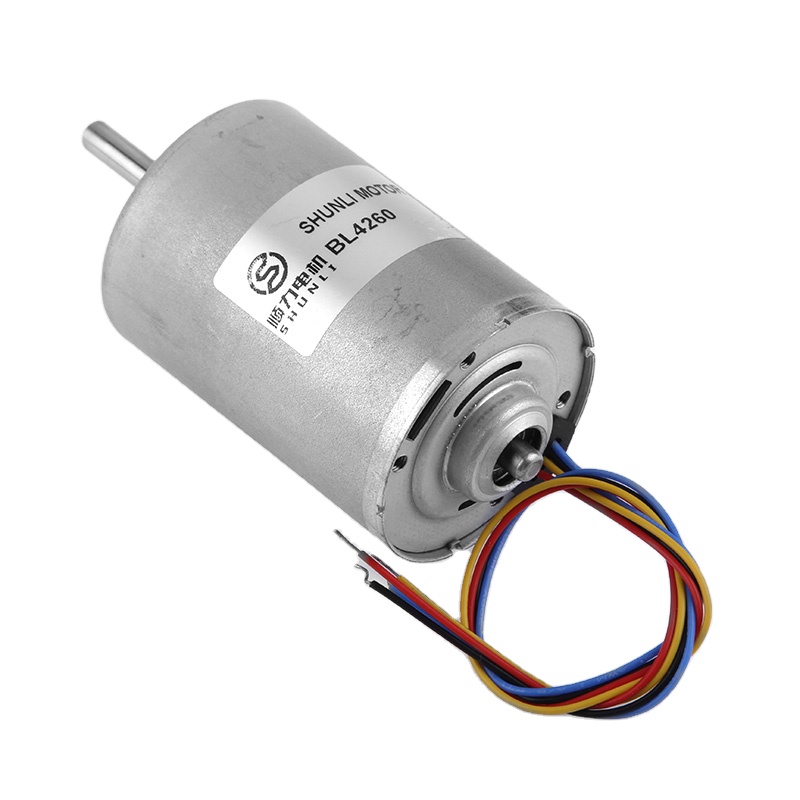

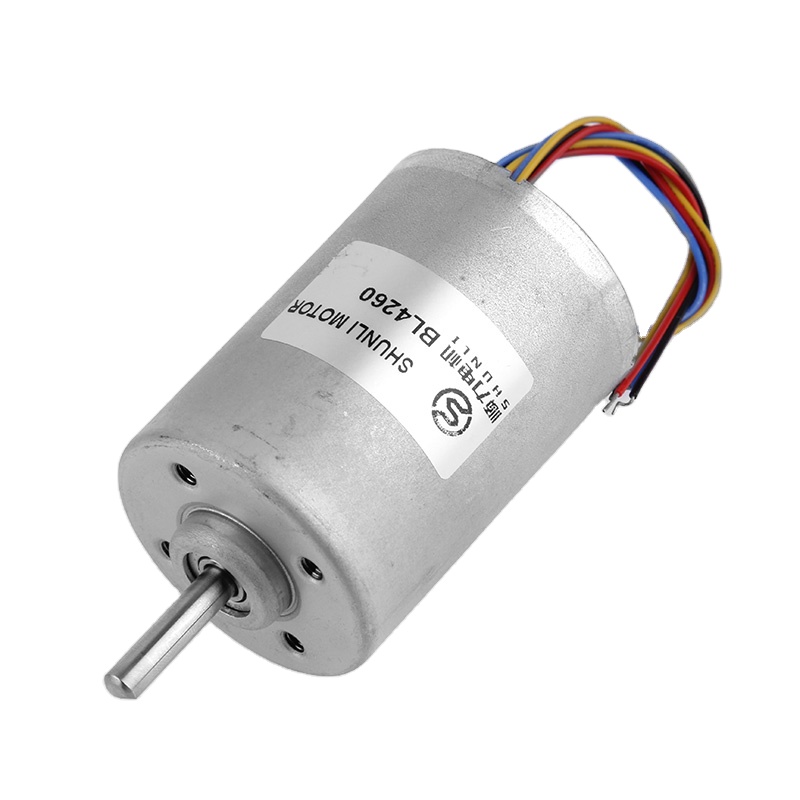

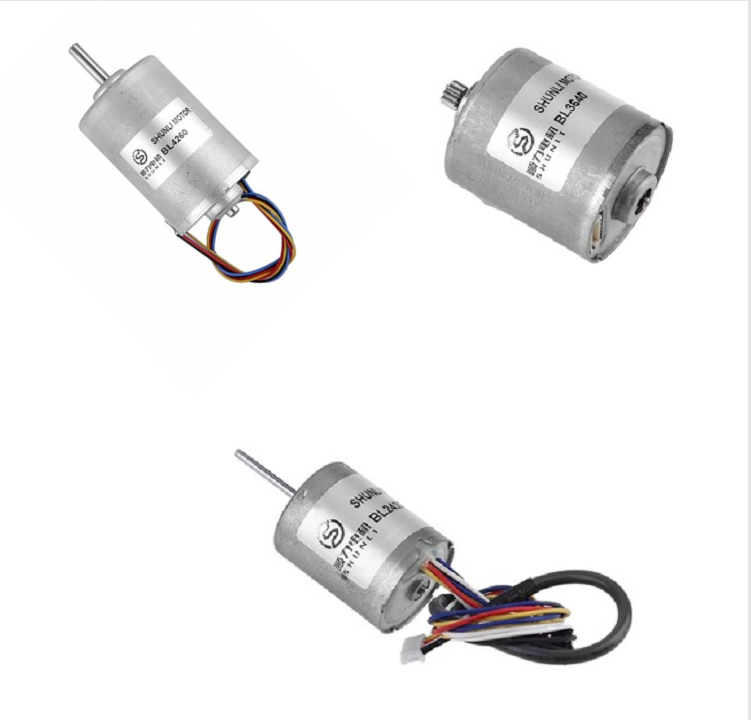

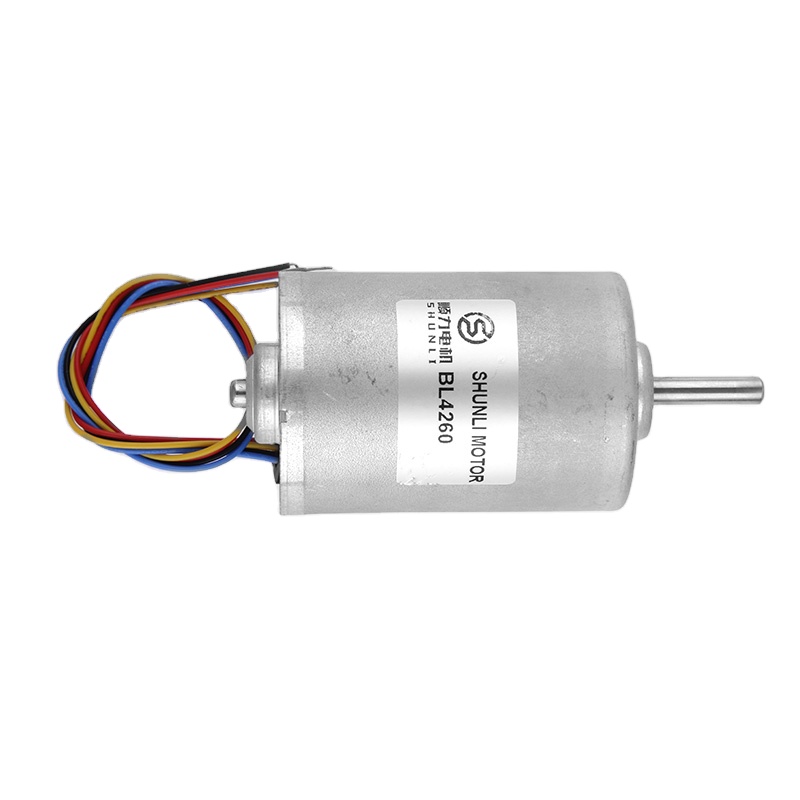

Power Brushless Dc Motor 12v 18v 24v 1500 RPM 3000 RPM 4000 RPM Micro Motor Permanent Magnet 5MM High Torque Brushless Motor
Product Description
Product Description
12v 18v 24v power brushless dc motor 1500 RPM 3000 RPM 4000 RPM for Washing machine/RC plane/DIY Technical tool/fan/Robot/Pump
🛠️
Motor Customized Specification, Please Contact Us.

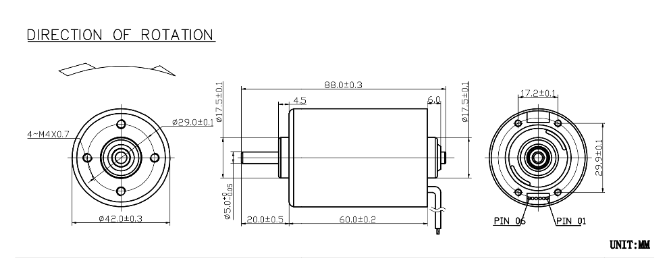

BLDC MOTOR Terminations
| PIN NO. | PIN Arrangement |
|---|---|
| 1 | VCC |
| 2 | FG |
| 3 | CW/CCW |
| 4 | GND |
| 5 | PWM |
Recommend Product
Frequently Asked Questions
What voltage options are available for this brushless DC motor?
This power brushless DC motor is designed to support operating voltages of 12V, 18V, and 24V, making it highly versatile for various electrical integrations.
What are the rated speeds (RPM) of this motor?
The motor is available in standard speed configurations including 1500 RPM, 3000 RPM, and 4000 RPM, depending on your application requirements.
What applications are best suited for this BLDC motor?
It is highly suitable for washing machines, RC planes, DIY technical tools, fans, robotic systems, pumps, and other high-torque permanent magnet requirements.
Can the technical specifications of the motor be customized?
Yes, we support customization for motor specifications. Please feel free to reach out with your specific requirements.
How is the speed of this brushless motor controlled?
The motor features a dedicated 5-pin termination interface including a PWM pin for precise pulse-width modulation speed control, along with a CW/CCW pin for direction switching.
What are the functions of the 5 interface pins?
The pin arrangement includes: Pin 1 (VCC) for power, Pin 2 (FG) for speed feedback, Pin 3 (CW/CCW) for direction, Pin 4 (GND) for ground, and Pin 5 (PWM) for speed control signal.
