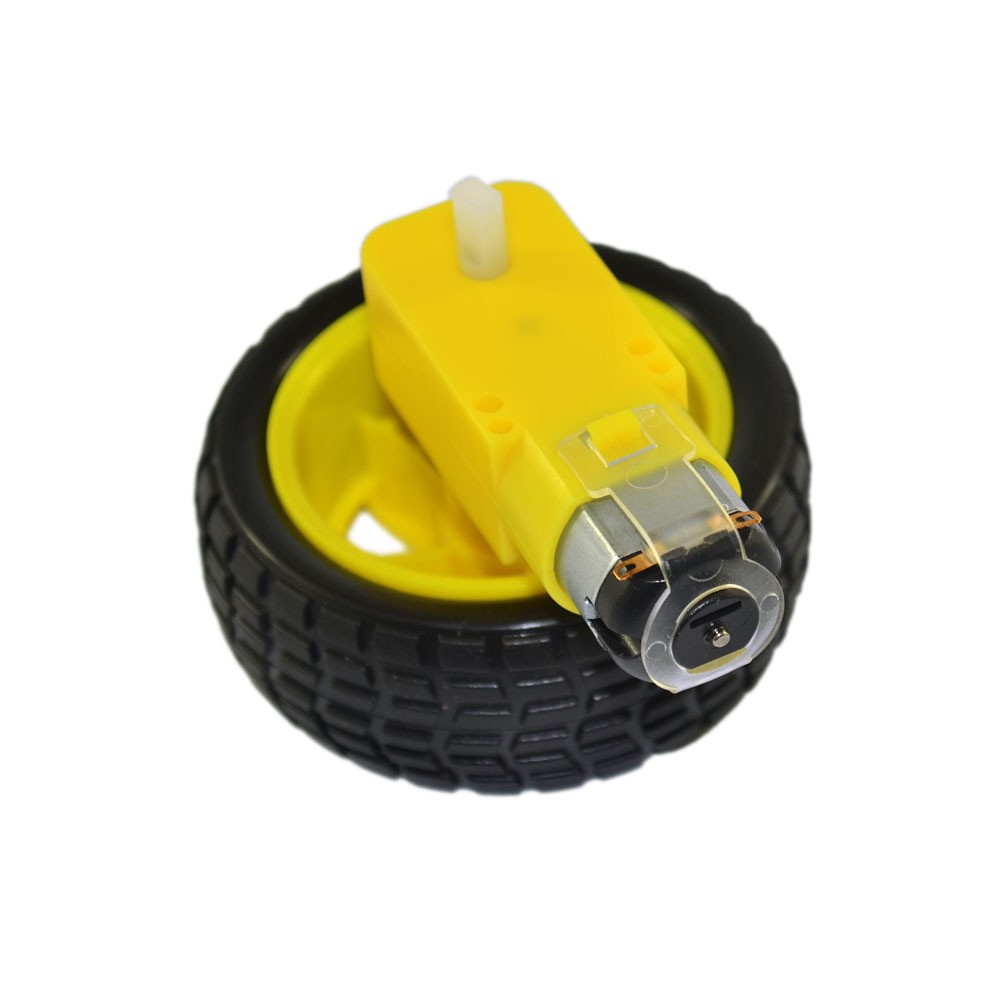

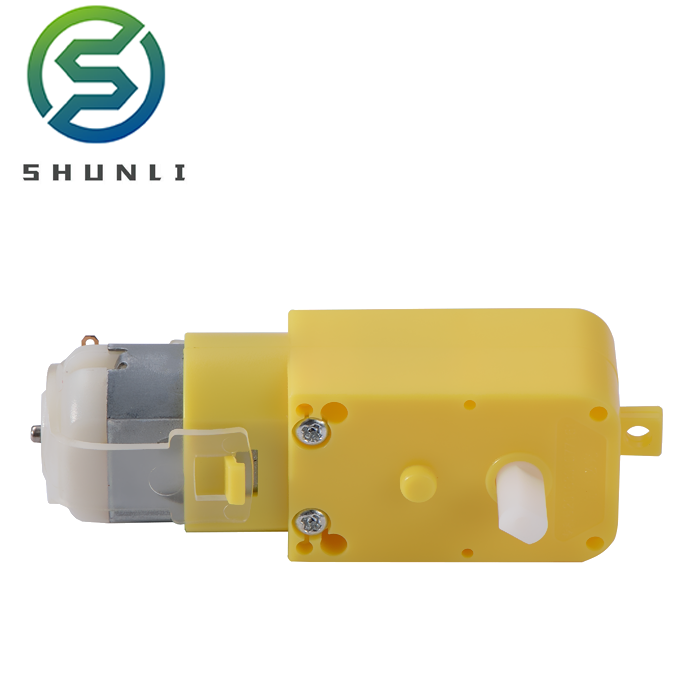

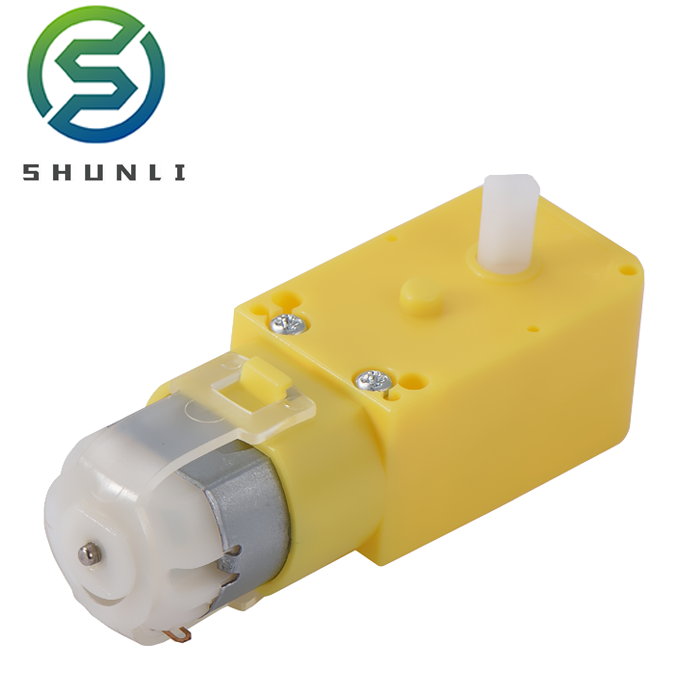

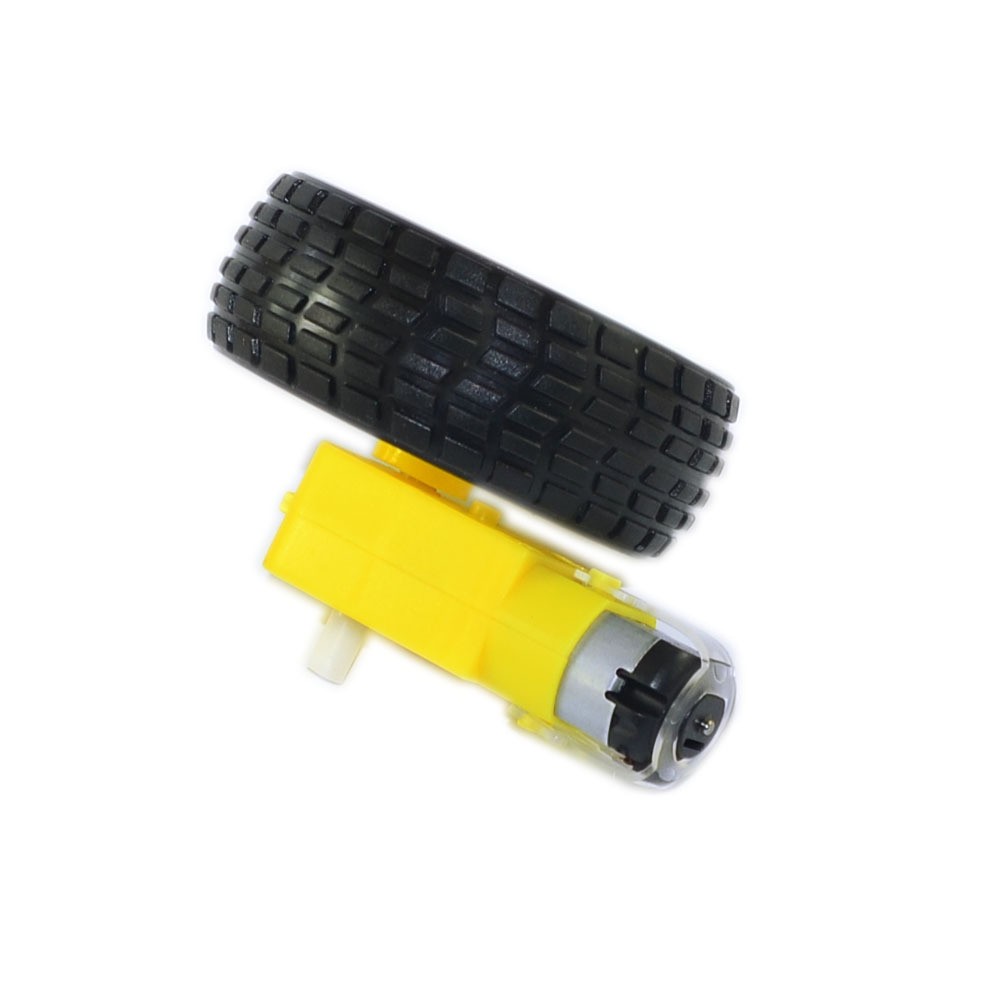

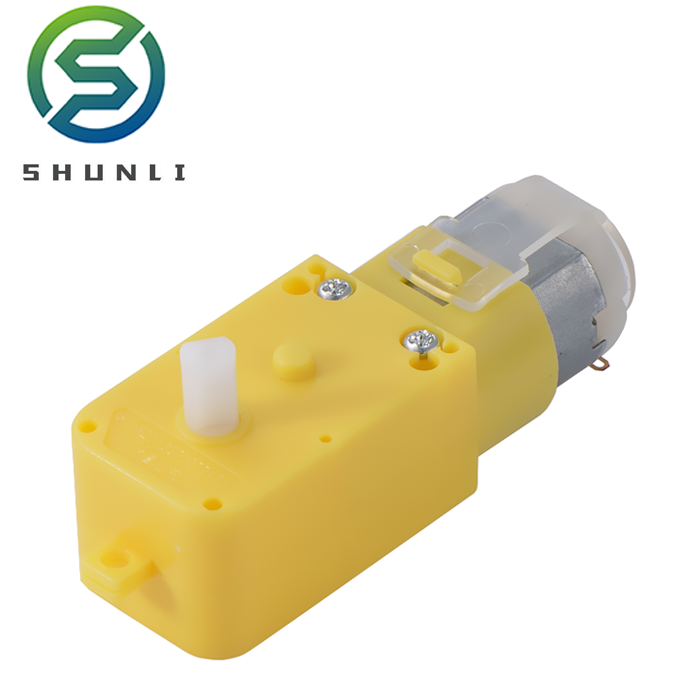

1.5v 3v 4.5v Mini Dc Gear Toy Motor with Reduction Plastic Gearbox for Toy / Toy Car / Robot
Product Description
★ 1.5V 3V 4.5V Mini DC Gear Toy Motor with Reduction Plastic Gearbox
✔
Our motors have long life, high efficiency and good stability. Insert the drive inside the motor to capture data more accurately.
Technical Specifications & Characters
| Model | Voltage | No-load | Load | Stall | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Working Voltage | Rated voltage | Speed | Current | Speed | Current | Torque | Power output | Stall torque | Current | |||
| V | rpm | A | rpm | A | N.m | Kg.m | W | N.m | Kg.m | A | ||
| SGP01S-A130-14150-120 | 3-12.0V | 4.5 | 100 | 0.2 | 87 | 0.5 | 0.066 | 0.675 | 0.4 | 0.265 | 2.7 | 1.25 |
| SGP01S-A130-18100-220 | 3-12.0V | 3.0 | 50 | 0.2 | 40 | 0.3 | 0.120 | 1.233 | 0.6 | 0.393 | 4.003 | 2.15 |
Give us a chance to cooperate with you!
Frequently Asked Questions
Are you a trading company or manufacturer?
We are a factory specializing in micro DC motors and DC gear motors with more than 14 years of industry experience.
What are the available payment terms for new customers?
We support multiple payment methods including Online Assurance Orders (Master Card, Visa), PayPal, and TT for convenience and security.
Can you customize a motor if I can't find a suitable one on your website?
Yes, we provide full customization services to design and manufacture motors according to your specific technical requirements.
Do your motors have the necessary quality certifications?
Yes, our products are certified with CE, FCC, and ISO. We can also apply for other specific certificates if required by your market.
How do you ensure the quality of your products?
We employ professional inspection staff at every stage of production. Our facility is equipped with advanced testing machines, including Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, and Life/Noise testers.
What is the typical lead time for standard motor orders?
Lead times depend on the order volume and customization requirements, but we strive for high efficiency and timely delivery across all our production lines.
