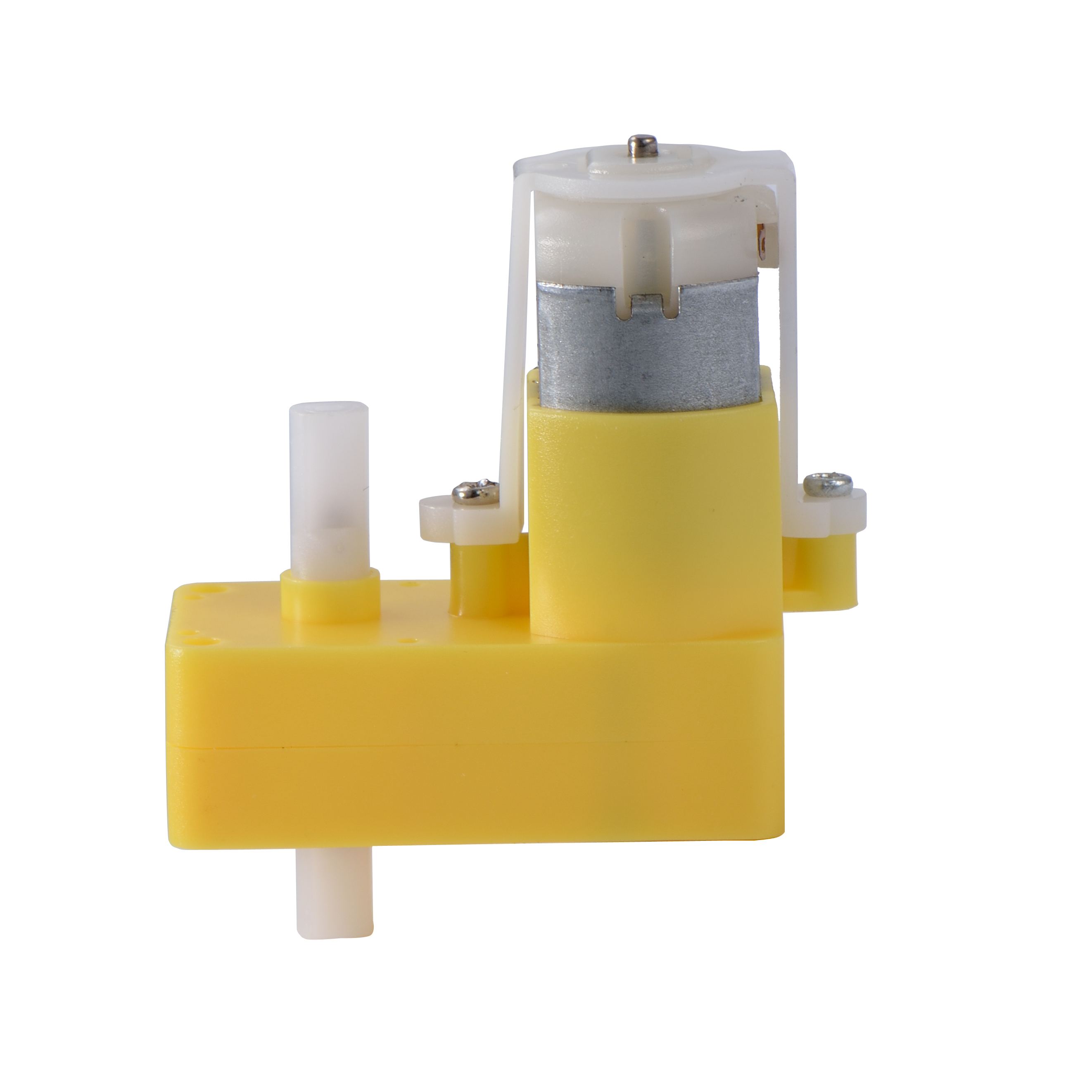

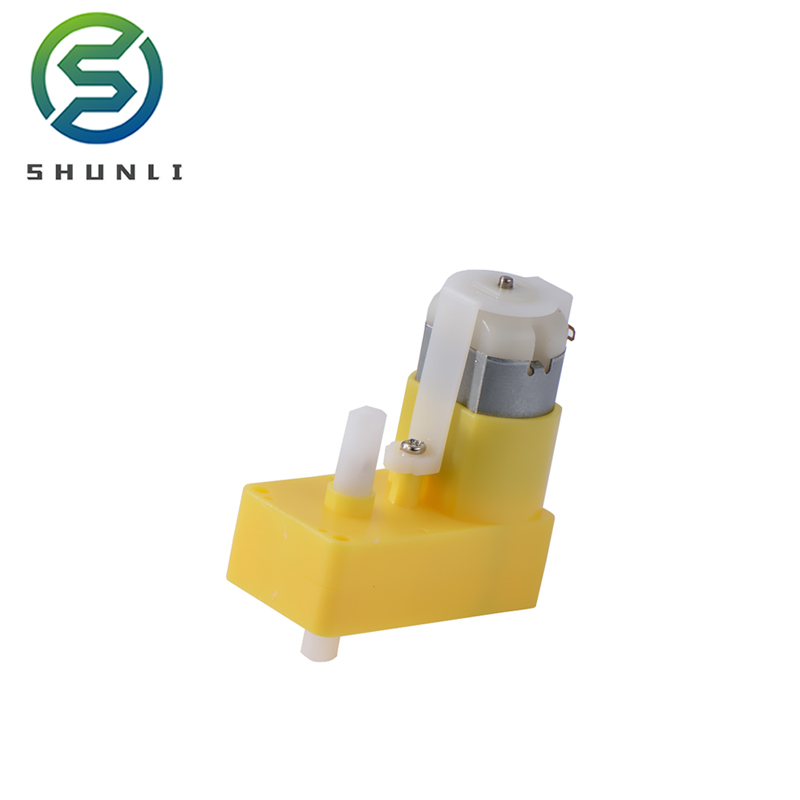

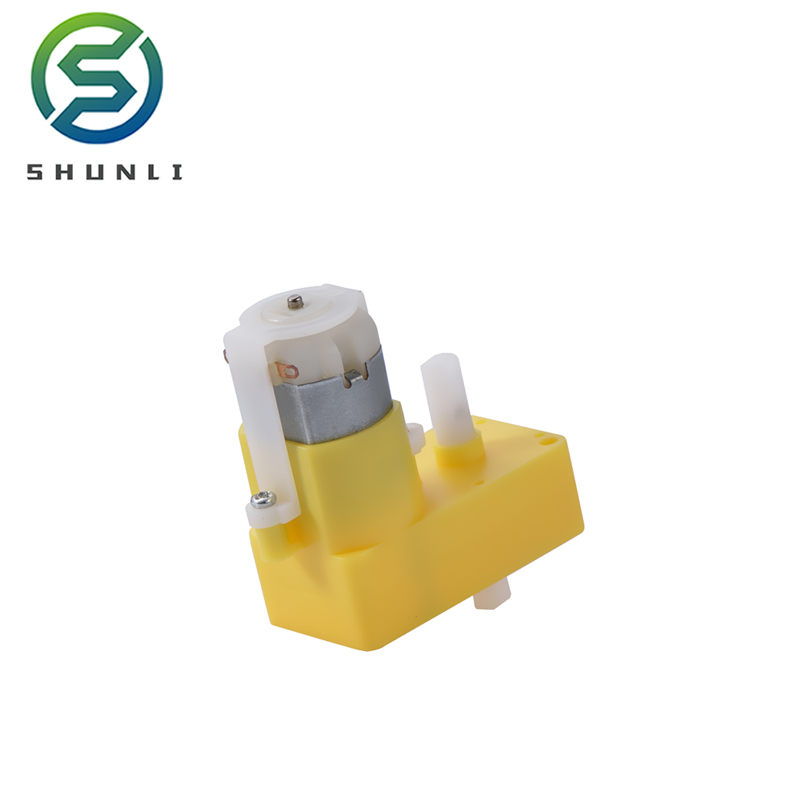

Yellow Dc Gear Motor with Plastic Wheels of Toy Car
Product Description
⚡Promotion
📊Characters
| Model | Voltage | No-load | Load | Stall | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Working Voltage | Rated voltage | Speed | Current | Speed | Current | Torque | Power output | Stall torque | Current | |||
| V | rpm | A | rpm | A | N.m | Kg.m | W | N.m | Kg.m | A | ||
| SGP01S-A130-14150-120 | 3-12.0V | 4.5 | 100 | 0.2 | 87 | 0.5 | 0.066 | 0.675 | 0.4 | 0.265 | 2.7 | 1.25 |
| SGP01S-A130-18100-220 | 3-12.0V | 3.0 | 50 | 0.2 | 40 | 0.3 | 0.120 | 1.233 | 0.6 | 0.393 | 4.003 | 2.15 |
📐Technical Drawing & Gallery
❓Frequently Asked Questions
What is the operating voltage range for this DC gear motor?
The motor operates within a flexible range of 3.0V to 12.0V DC, making it suitable for various battery-powered toy applications.
What is the typical speed of the yellow gear motor?
Depending on the specific model and voltage, the no-load speed ranges from 50 rpm to 100 rpm.
Are the wheels included with the motor?

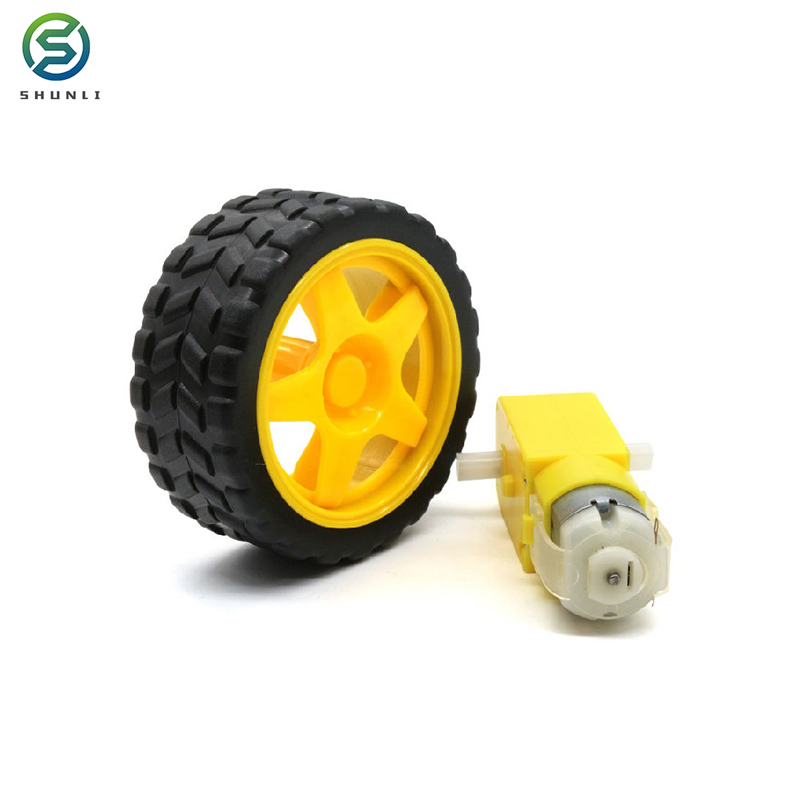

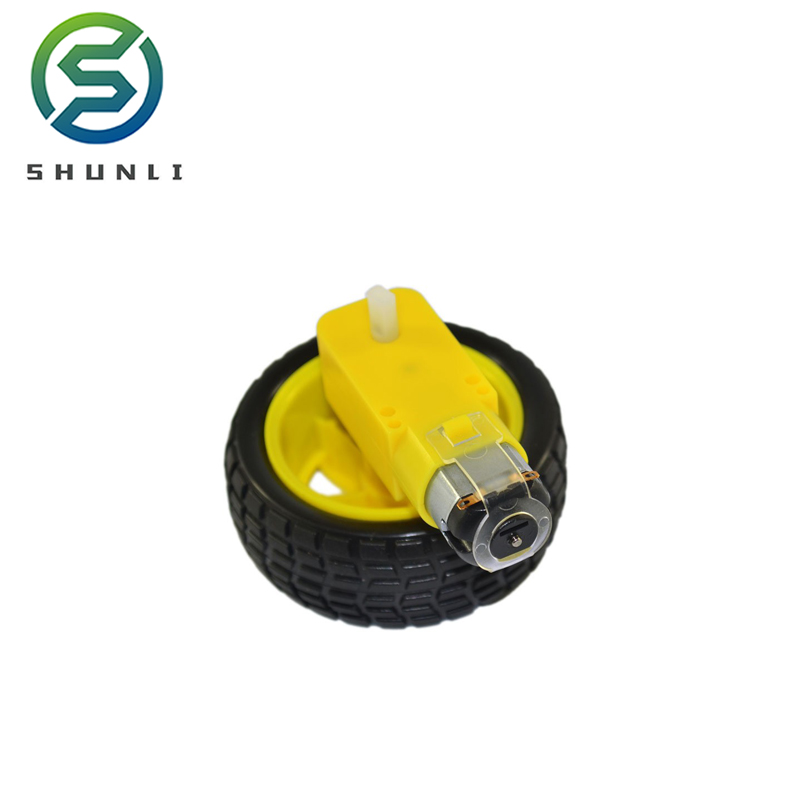

Yes, this product features the yellow DC gear motor paired with matching plastic wheels designed specifically for toy cars.
What is the stall torque of these motors?
The stall torque varies by model, typically ranging from 2.7 Kg.m to 4.003 Kg.m, providing sufficient power for small mobile robots and toys.
Is this motor suitable for DIY educational projects?
Absolutely. Its simple 3-12V requirement and integrated gearbox make it a popular choice for student robotics and DIY smart car projects.
What are the load current specifications?
Under normal load conditions, the current consumption typically stays between 0.3A and 0.5A, ensuring efficient battery usage.
